Cruise Control Switch: Edge/MKX: Notes
WARNING: This page is about a different car, the 2013 Lincoln MKX and 2013 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

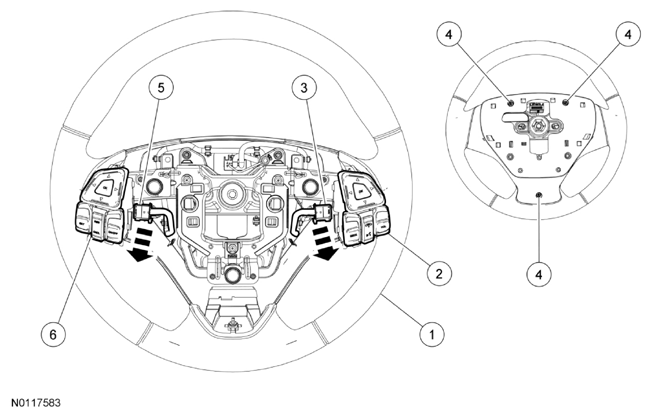

Steering wheel trim panel and air bag shown removed for clarity
| Item | Part Number | Description |
|---|---|---|
| 1 | 3600 | Steering wheel |
| 2 | 9C888 | Audio control switch |
| 3 | - | Audio control switch electrical connector |
| 4 | W506943 | Steering wheel trim panel screw (3 required) |
| 5 | - | Message center and cruise control switch electrical connector |
| 6 | 9C888 | Message center and cruise control switch |
