Front Planetary Carrier Hub Exploded View

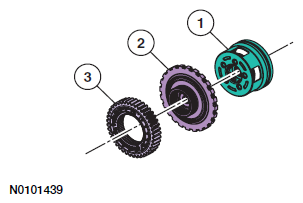

Fig 1: Exploded View Of Front Planetary Carrier Hub Components
G06096824Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7D491 Front planetary carrier
2 7060 Front planetary carrier hub/park gear
3 7G132 Drive chain drive sprocket
