Main Control Valve Body

Fig 1: Identifying Main Control Valve Body Components

Courtesy of FORD MOTOR CO.

Remove the 2 solenoid body-to-valve body bolts and separate the solenoid body from the valve body.

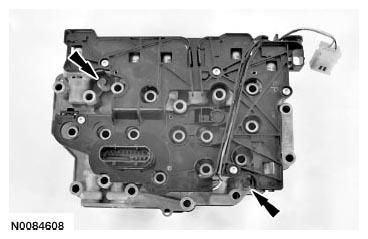

Fig 1: Separating Solenoid Body From Valve Body
Courtesy of FORD MOTOR CO.
Remove the 2 separator plate-to-solenoid body bolts and remove and discard the separator plate.

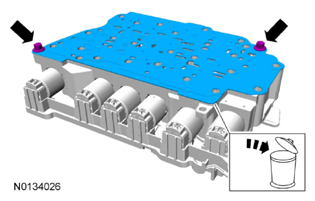

Fig 2: Locating Separator Plate-To-Solenoid Body Bolts
Courtesy of FORD MOTOR CO.

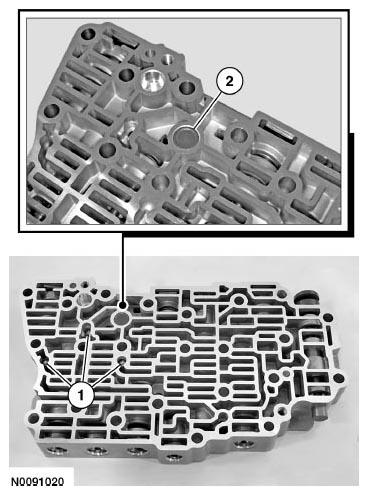

Remove the 3 check balls and the damper.
1. Check balls
2. Solenoid damper

  Fig 3: Identifying Check Balls And Solenoid Damper
  Courtesy of FORD MOTOR CO.
Remove the manual valve.

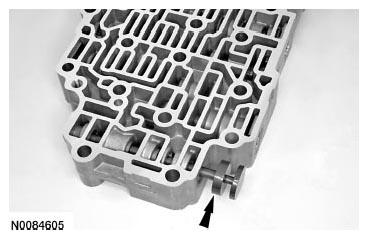

Fig 4: Locating Manual Valve
Courtesy of FORD MOTOR CO.

NOTE: Remove the valves by tapping the valve body on the palm of the hand to slide the valves out of the bores or by threading a 4-mm bolt into the valves and pulling them out. It may be necessary to remove the valves and springs using a pick. If it is necessary to use a pick, use extreme caution to prevent damaging the valves or valve bores. If necessary, disassemble parts of the main control valve body in small groups. Take special care when handling the main control components, since they are the most precise and delicate parts of the transmission. Neatly arrange the parts as they are removed to avoid mixing similar pieces.

NOTE: Do not stone or polish any valves or damage to the valves can occur. If the valves do not move freely, install a new assembly.

NOTE: The bypass valve is held in with a spring-loaded retainer. Be careful not to lose the retainer when removing it.

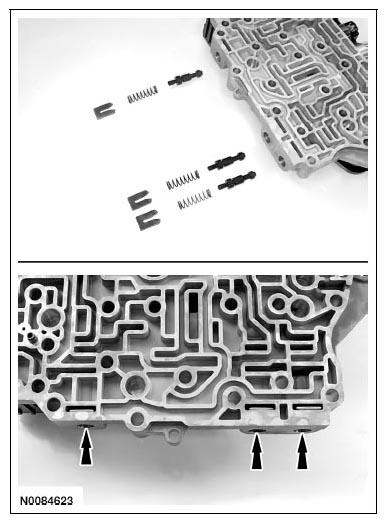

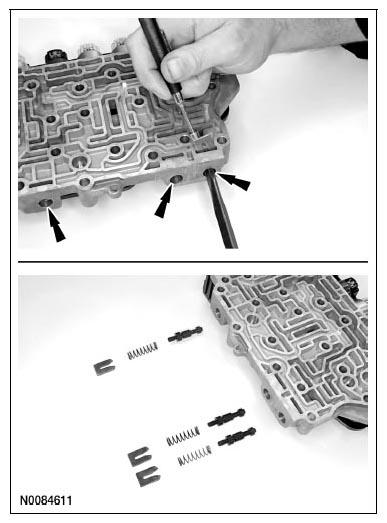

Fig 5: Compressing Valve Springs Using Screwdriver

Courtesy of FORD MOTOR CO.

Compress the valve springs with a screwdriver and remove the retainers with a magnet. Use a pick to remove the bypass valve retainer. Remove the individual valves and springs from the main control valve body by tapping the valve body on the palm of the hand to slide the valves out of the bores. If needed, use a 4-mm bolt to thread into the valves to remove the valves. See Figure, the Valve Body illustration for valve and spring locations. Clean valves, springs and main control valve body.

NOTE: Do not stone or polish any valves or damage to the valves can occur. If the valves do not move freely during assembly, install a new valve body.

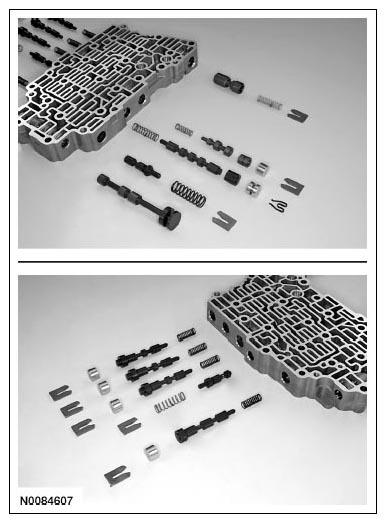

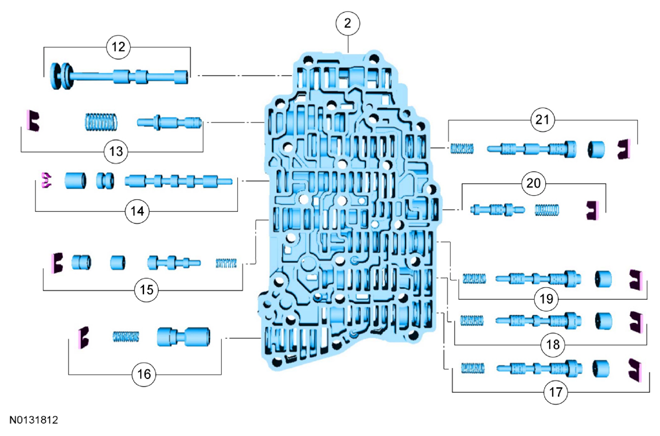

Fig 6: Identifying Valve Body Valves, Springs And Retaining Clips

Courtesy of FORD MOTOR CO.

Install the valve body valves, springs and retaining clips in the main control valve body. See Figure, the Valve Body illustration at the beginning of this procedure for valve and spring locations.
Install the manual valve in the valve body.

Fig 7: Locating Manual Valve
Courtesy of FORD MOTOR CO.
Install the 3 check balls and the solenoid damper.
1. Check balls
2. Solenoid damper

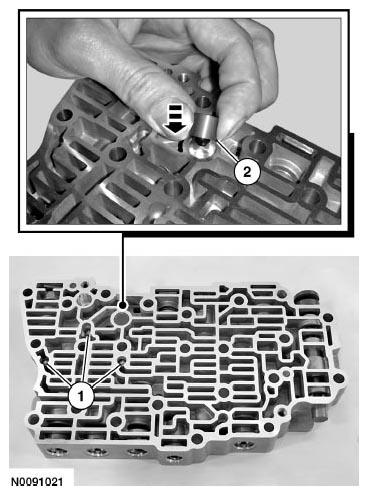

  Fig 8: Installing Check Balls And Solenoid Damper
  Courtesy of FORD MOTOR CO.
For disassembly and assembly of the solenoid body, refer to SOLENOID BODY .
Install the new separator plate and the 2 separator plate-to-solenoid body bolts.
- Tighten to 10 Nm (89 lb-in).

  Fig 9: Locating Separator Plate-To-Solenoid Body Bolts
  Courtesy of FORD MOTOR CO.
Position the solenoid body assembly on the valve body and install the 2 solenoid body-to-valve bolts.
- Tighten to 10 Nm (89 lb-in).

  Fig 10: Locating Solenoid Body Assembly Bolts
  Courtesy of FORD MOTOR CO.
Solenoid Body

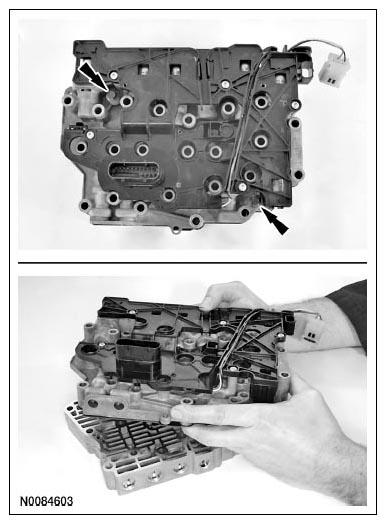

If not previously done, remove the 2 solenoid body-to-valve body bolts and separate the solenoid body from the valve body.

Fig 11: Separating Solenoid Body From Valve Body
Courtesy of FORD MOTOR CO.
Remove the 2 separator plate-to-solenoid body bolts and remove and discard the separator plate.

Fig 12: Locating Separator Plate-To-Solenoid Body Bolts
Courtesy of FORD MOTOR CO.

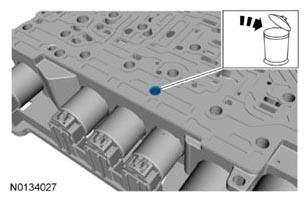

Remove and discard the circuit filter.

Fig 13: Locating Circuit Filter
Courtesy of FORD MOTOR CO.

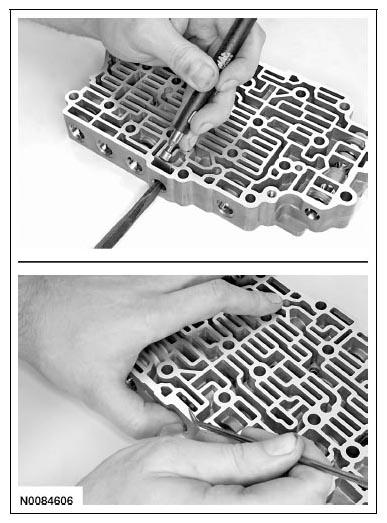

Compress the valve springs with a screwdriver and remove the retainers with a magnet. Remove the individual valves and springs from the solenoid body by tapping it on the palm of the hand to slide the valves out of the bores. See Figure, the Solenoid Body illustration at the beginning of this procedure for valve and spring locations.

Fig 14: Compressing Valve Springs Using Screwdriver
Courtesy of FORD MOTOR CO.

NOTE: Be careful not to bend or twist the solenoid body leadframe or the solenoid terminals when removing the leadframe or damage can occur to the leadframe or the solenoids.

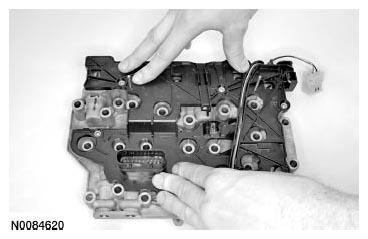

Fig 15: Removing Leadframe From Solenoids

Courtesy of FORD MOTOR CO.

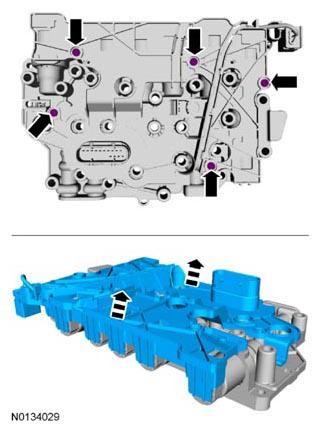

Remove the 5 screws and carefully remove the leadframe from the solenoids by lifting it straight up evenly.

NOTE: The solenoids are calibrated from the factory and are not all the same. Failure to mark the solenoids to the ports they were originally in can result in mixing the solenoids and can cause damage to the transmission or a harsh shift.

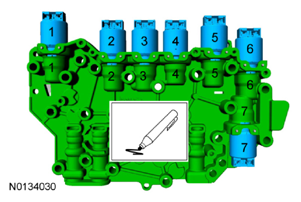

Fig 16: Identifying Numbered Solenoids And Solenoid Body

Courtesy of FORD MOTOR CO.

Using a paint marker, number the solenoids and the solenoid body to correspond with the ports from which the solenoids are located in the solenoid body.

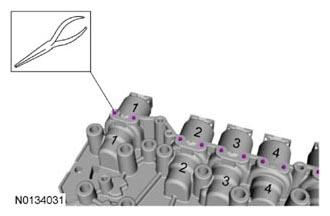

Remove the solenoid retaining pins.

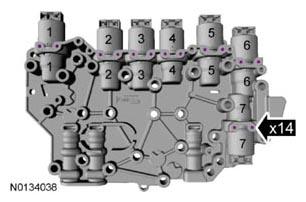

Fig 17: Identifying Solenoid Retaining Pins
Courtesy of FORD MOTOR CO.

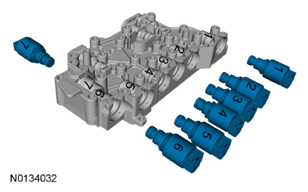

Remove the solenoids from the solenoid body.

Fig 18: Identifying Solenoids
Courtesy of FORD MOTOR CO.

NOTE: Be careful not to wash the numbers from the solenoids or the solenoid body. Failure to install the solenoids in the ports they were originally in can result in damage to the transmission or a harsh shift.

NOTE: Do not stone or polish any valves or damage to the valves can occur. If the valves do not move freely during assembly, install a new solenoid body.

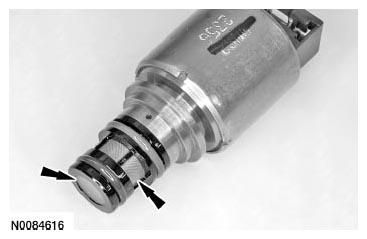

Fig 19: Inspecting Solenoid Screens For Debris

Courtesy of FORD MOTOR CO.

Clean and inspect the solenoid body, solenoids and valve assemblies for damage. Inspect the solenoid screens for debris that may restrict fluid flow through the screen.

NOTE: The solenoids are calibrated from the factory and are not all the same. Failure to install the solenoids in the ports they were originally in can result in damage to the transmission or a harsh shift.

Fig 20: Identifying Positions Of Solenoid Body Ports

Courtesy of FORD MOTOR CO.

If new solenoid(s) are not being installed, position the solenoids in the solenoid body ports from which their numbers correspond.

If installing a new VFS, determine the base part number of the solenoid(s). The TCC solenoid, SSA and SSC are all normally low pressure solenoids. The LPC solenoid, SSB and SSD are all normally high pressure solenoids. SSE is not a VFS; it is an ON/OFF solenoid.

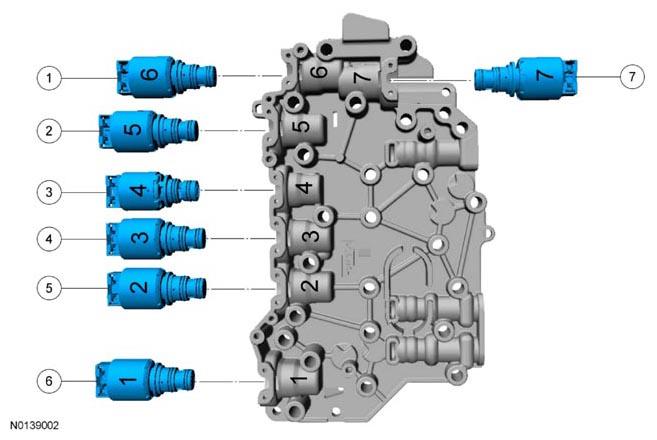

Fig 21: Identifying Base Part Numbers Of Solenoid

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	7G383	SSB (normally high)
2	7G136	SSA (normally low)
3	7G484	SSE (normally closed [OFF])
4	7G136	TCC (normally low)
5	7G136	SSC (normally low)
6	7G383	LPC (normally high)
7	7G383	SSD (normally high)

If installing new normally high pressure solenoids LPC, SSB, SSD or new normally low pressure solenoids TCC, SSA, SSC, note the color of the plastic nozzle and large o-ring of the solenoid. The color will be black with a orange o-ring or brown with a green o-ring and the solenoid can only be replaced with the same color solenoid. A solenoid with a black plastic nozzle and a orange large o-ring is a normally high pressure solenoid and a solenoid with a brown plastic nozzle and a green large o-ring is a normally low pressure solenoid. Visual check.

Fig 22: Inspecting Solenoid Nozzle And O-Ring
Courtesy of FORD MOTOR CO.

Determine the part number suffix by checking the solenoid service band number etched on the side of the solenoid. The band number is the last number in the group on the side of the solenoid and will be a 1, 2, 3, 4 or 5. Use the following table to determine the part number suffix and match the new solenoid base part number and suffix with the old solenoid. Visual check.

Solenoid Band Number	Part Number Suffix
1	B
2	C
3	D
4	E
5	F

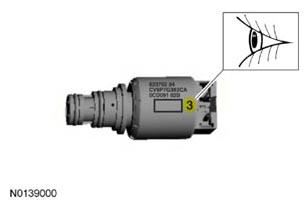

Fig 23: Inspecting Solenoid Band Number

Courtesy of FORD MOTOR CO.

Install the solenoid retaining pins.

Fig 24: Locating Solenoid Retaining Pins
Courtesy of FORD MOTOR CO.
Install Leadframe Guide Pins 307-636 in the solenoid body to align the leadframe for installation.

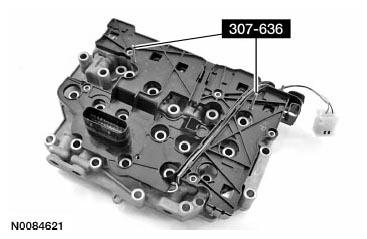

Fig 25: Identifying Leadframe Guide Pins 307-636 In Solenoid Body
Courtesy of FORD MOTOR CO.
Position the leadframe on the guide pins and carefully install the leadframe by pushing it straight down into the solenoids.

Fig 26: Positioning Leadframe On Guide Pins
Courtesy of FORD MOTOR CO.
Remove Leadframe Guide Pins 307-636.

Fig 27: Identifying Leadframe Guide Pins 307-636
Courtesy of FORD MOTOR CO.
Install the 5 leadframe screws.

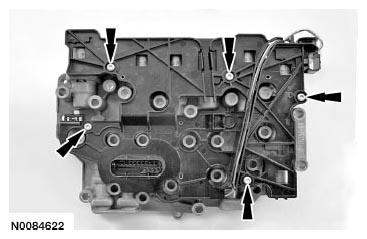

Fig 28: Locating Leadframe Screws
Courtesy of FORD MOTOR CO.

NOTE: If the valves do not move freely during assembly, install a new solenoid body. Failure to install a new solenoid body can result in a harsh shift or damage to the transmission.

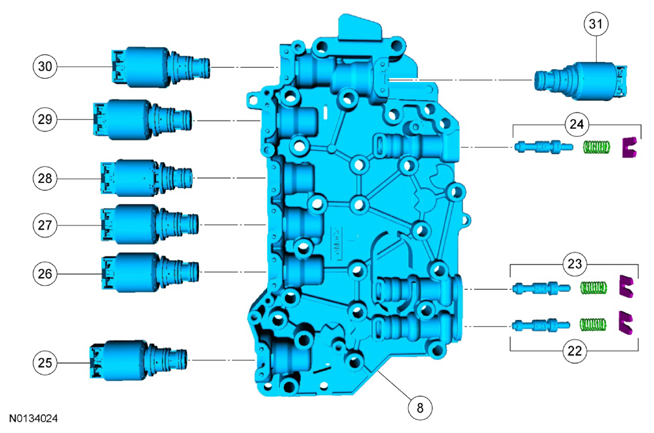

Fig 29: Identifying Solenoid Body Valves, Springs And Retaining Clips

Courtesy of FORD MOTOR CO.

Install the solenoid body valves, springs and retaining clips in the solenoid body. See Figure, the Solenoid Body illustration at the beginning of this procedure for valve and spring locations.

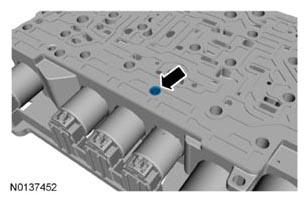

Install the new circuit filter.

Fig 30: Locating Circuit Filter
Courtesy of FORD MOTOR CO.
Install the new separator plate and the 2 separator plate-to-solenoid body bolts.
- Tighten to 10 Nm (89 lb-in).

  Fig 31: Locating Separator Plate-To-Solenoid Body Bolts
  Courtesy of FORD MOTOR CO.
If not previously done, refer to MAIN CONTROL VALVE BODY in this procedure for disassembly and assembly of the valve body.
Position the solenoid body assembly on the valve body and install the 2 solenoid body-to-valve body bolts.
- Tighten to 10 Nm (89 lb-in).

  Fig 32: Locating Solenoid Body Assembly Bolts
  Courtesy of FORD MOTOR CO.
