Transaxle Support Insulator: Notes

SPECIAL TOOLS DESCRIPTION CHART

G06068086
 Support Bar, Engine
303-F072
MATERIAL SPECIFICATIONS

Item Specification
Threadlock and Sealer
TA-25		 WSK-M2G351-A5

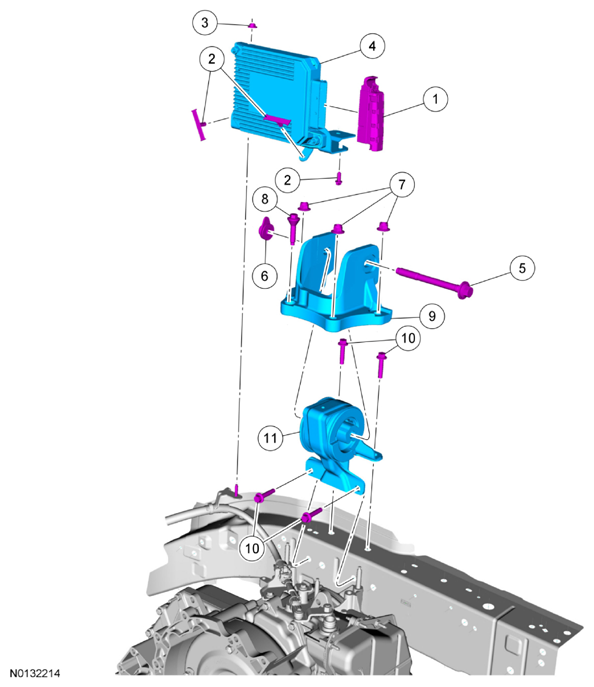

Fig 1: Exploded View Of Transaxle Support Insulator Components
G07932049Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14B060 TCM electrical connector
2 14B060 Battery wiring harness retainers
3 W702751 TCM bracket nut
4 7D438 TCM bracket
5 W711873 Transmission support insulator through bolt
6 W711872 Transmission support insulator through bolt nut
7 W712334 Transmission support insulator bracket nuts
8 W712711 Transmission support insulator bracket bolt
9 6031 Transmission support insulator bracket
10 W709234 Transmission support insulator bolts
11 6038 Transmission support insulator
