Front Lighting Control Module (FLM)
WARNING: This page is about a different car, the 2013 Lincoln MKX and 2013 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

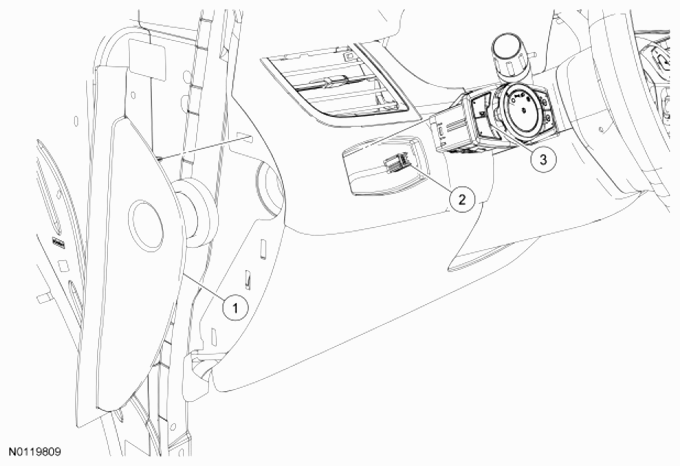

| Item | Part Number | Description |
|---|---|---|
| 1 | 04481 | LH side instrument panel cover |
| 2 | - | Front Lighting Control Module (FLM) electrical connector (part of 14401) |
| 3 | 11654 | FLM |
- Using a suitable non-marring tool, work around the outer edge of the FLM to release the clips and pull the FLM out through the front finish panel.
- Disconnect the electrical connector.
- To install, reverse the removal procedure.
