Restraints Control Module (RCM): Removal

WARNING: This page is about a different car, the 2013 Lincoln MKX and 2013 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: If a vehicle has been in a crash, inspect the restraints control module (RCM) and the impact sensor (if equipped) mounting areas for deformation. If damaged, restore the mounting areas to the original production configuration. A new RCM and sensors must be installed whether or not the airbags have deployed. Failure to follow these instructions may result in serious personal injury or death in a crash.

WARNING: Do not handle, move or change the original horizontal mounting position of the restraints control module (RCM) while the RCM is connected and the ignition switch is ON. Failure to follow this instruction may result in the accidental deployment of the Safety Canopy and cause serious personal injury or death.

NOTE: When installing a new Restraints Control Module (RCM), it is necessary to carry out Programmable Module Installation (PMI). System failure may occur if PMI is not performed. For additional information, refer to PROGRAMMABLE MODULE INSTALLATION (PMI) .

NOTE: When installing a new Restraints Control Module (RCM) always make sure the correct RCM is being installed. If an incorrect RCM is installed, DTCs will be set.

NOTE: The air bag warning indicator illuminates when the correct RCM fuse is removed and the ignition is on.

NOTE: The Supplemental Restraint System (SRS) must be fully operational and free of faults before releasing the vehicle to the customer.

NOTE: Carrying out Programmable Module Installation (PMI) will not enable the 911 assist option that is disabled. The RCM and Accessory Protocol Interface Module (APIM) must be configured correctly to fully support 911 assist functionality.

All vehicles

When installing a new RCM, carry out the appropriate steps necessary for the Programmable Module Installation (PMI) procedure. For additional information, refer to PROGRAMMABLE MODULE INSTALLATION (PMI) .
Position the RH front seat all the way rearward, down and fully reclined.
Depower the SRS. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
Edge vehicles
Open the console door and remove the RH console molding.

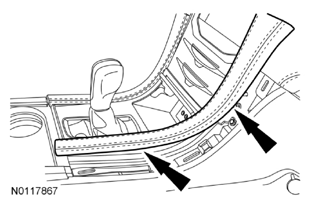

Fig 1: Locating RH Console Molding
Courtesy of FORD MOTOR CO.

All vehicles
NOTE: Damage to the floor console rear trim panel may occur if cardboard is not used to remove the lower floor console side trim panel.

Position a piece of cardboard between the RH lower floor console side trim panel and the floor console.

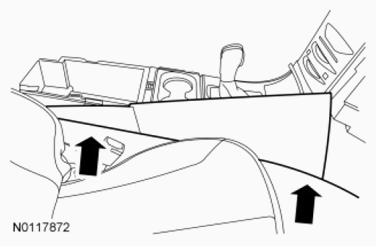

Fig 2: Locating RH Lower Floor Console Side Trim Panel
Courtesy of FORD MOTOR CO.
Simultaneously remove the RH lower floor console side trim panel and cardboard.
Remove the 3 RCM bolts.
Disconnect the 2 electrical connectors, and remove the RCM.
