Component Location Views

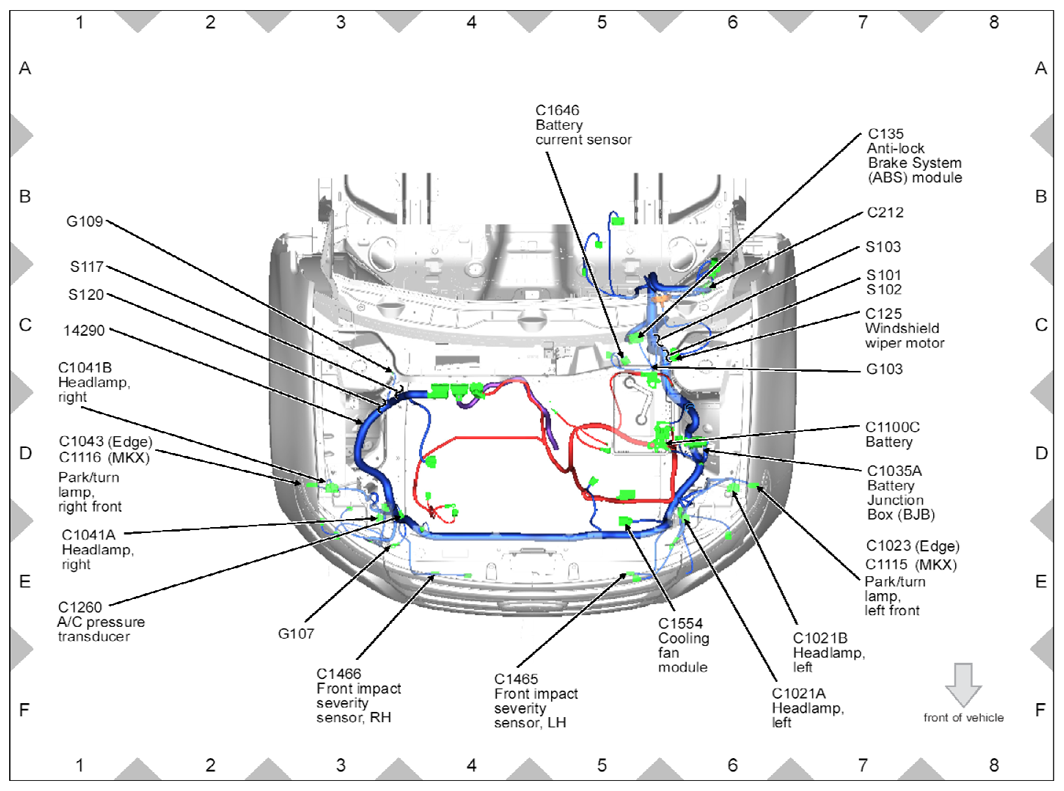

Fig 1: Engine Compartment Wiring Harness Connectors Location (1 Of 4)

G07898839

Courtesy of FORD MOTOR CO.

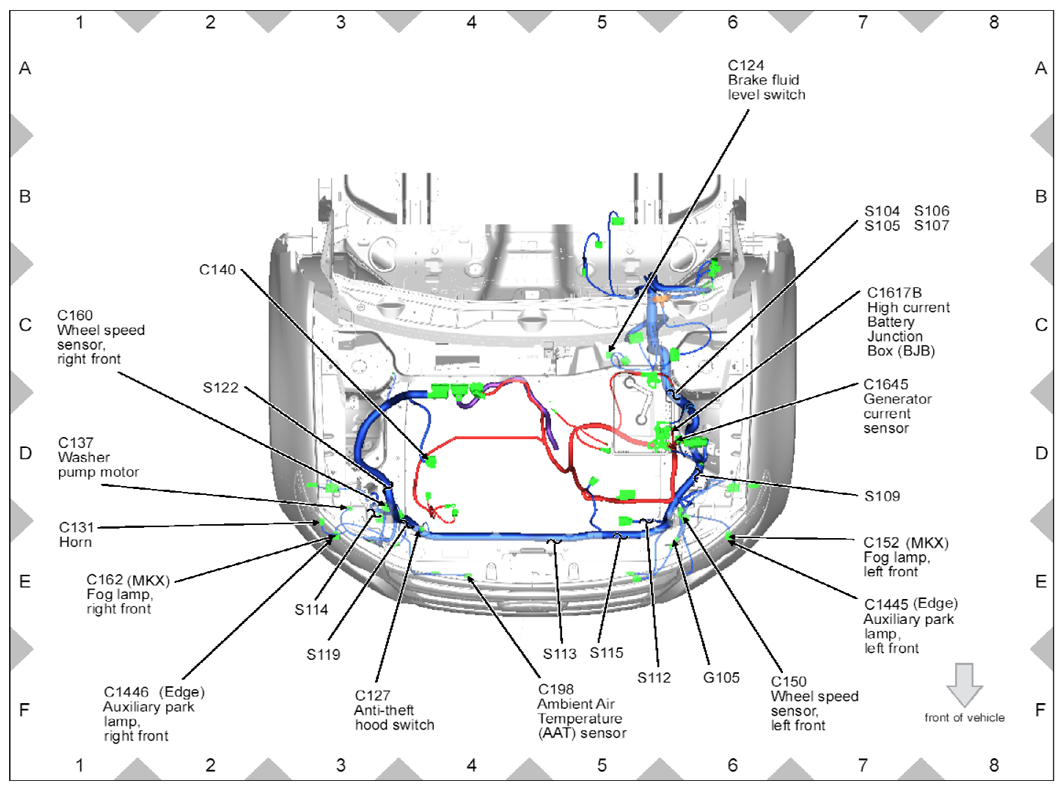

Fig 2: Engine Compartment Wiring Harness Connectors Location (2 Of 4)

G07898840

Courtesy of FORD MOTOR CO.

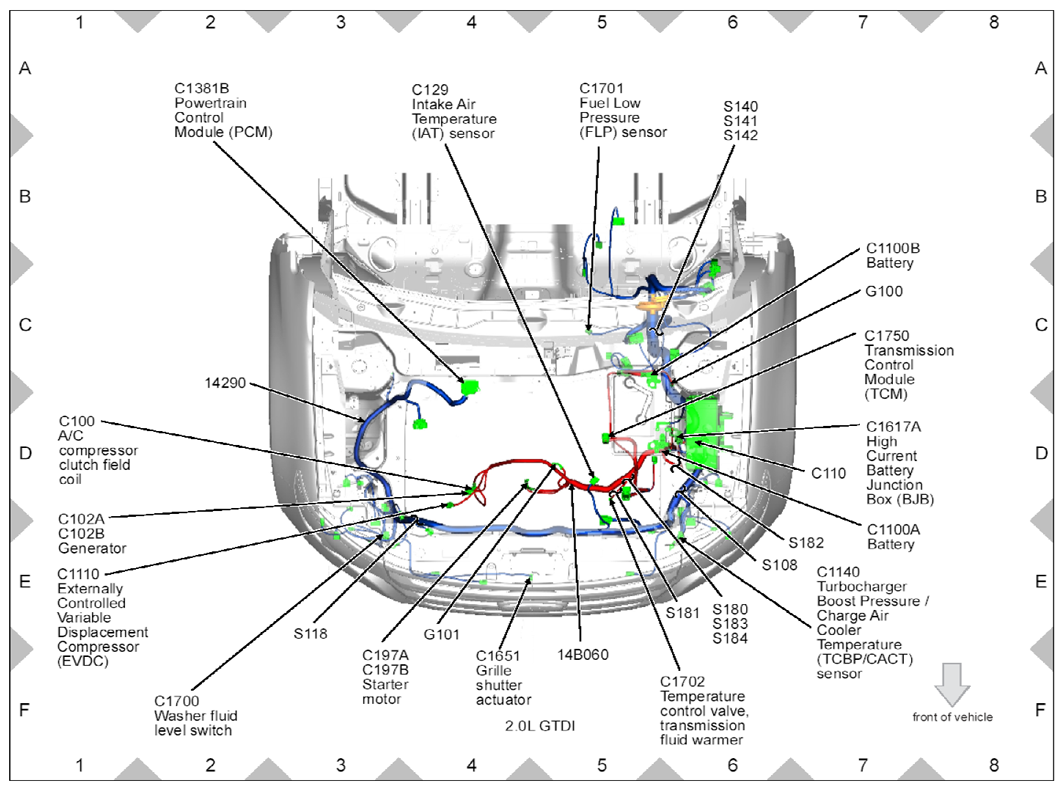

Fig 3: Engine Compartment Wiring Harness Connectors Location (3 Of 4)

G07898841

Courtesy of FORD MOTOR CO.

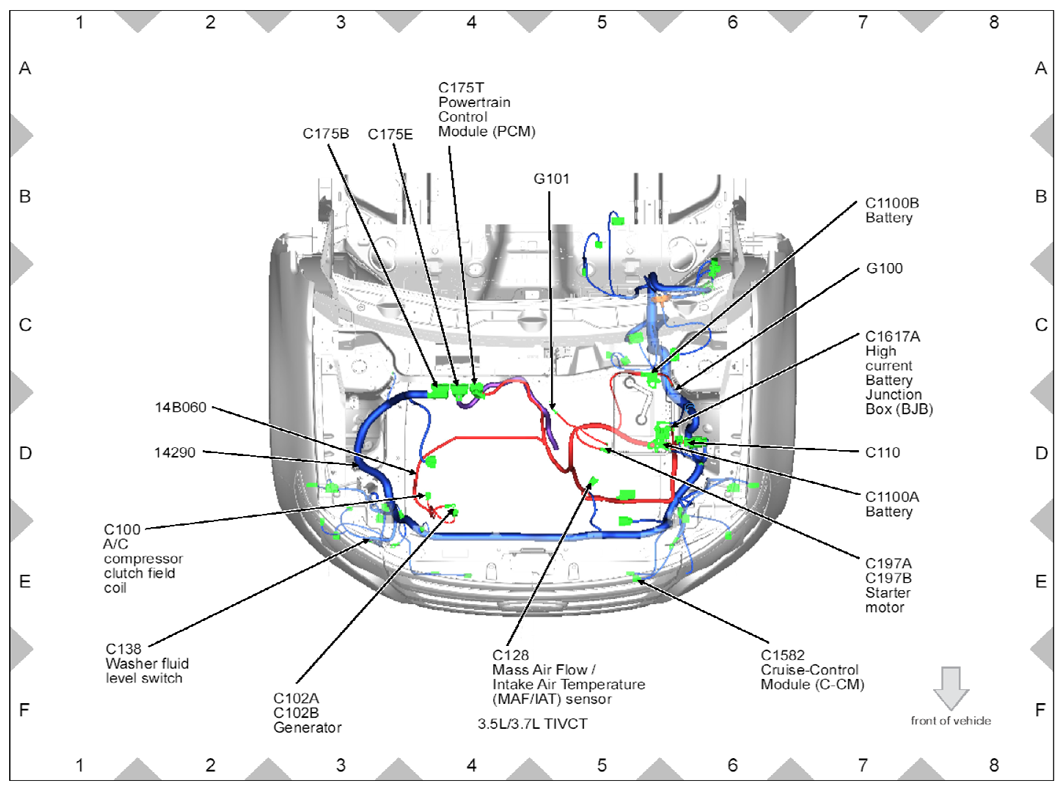

Fig 4: Engine Compartment Wiring Harness Connectors Location (4 Of 4)

G07898842

Courtesy of FORD MOTOR CO.

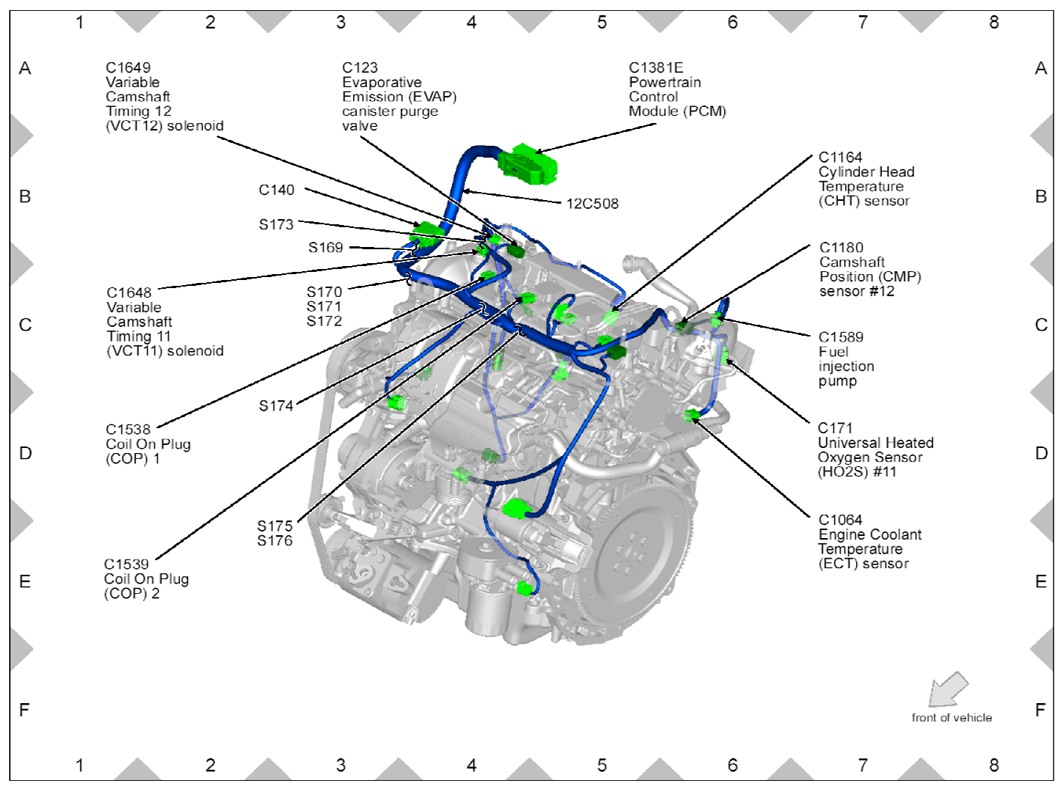

Fig 5: Front Engine Wiring Harness Connectors Location (1 Of 3)

G07898843

Courtesy of FORD MOTOR CO.

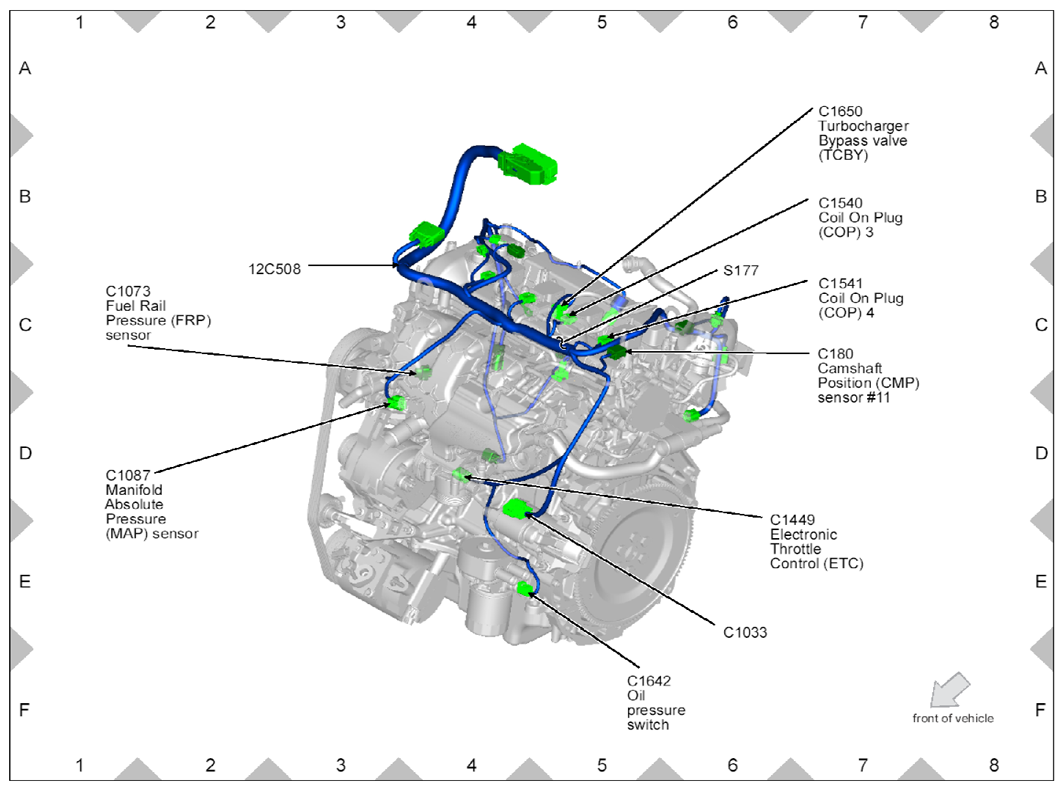

Fig 6: Front Engine Wiring Harness Connectors Location (2 Of 3)

G07898844

Courtesy of FORD MOTOR CO.

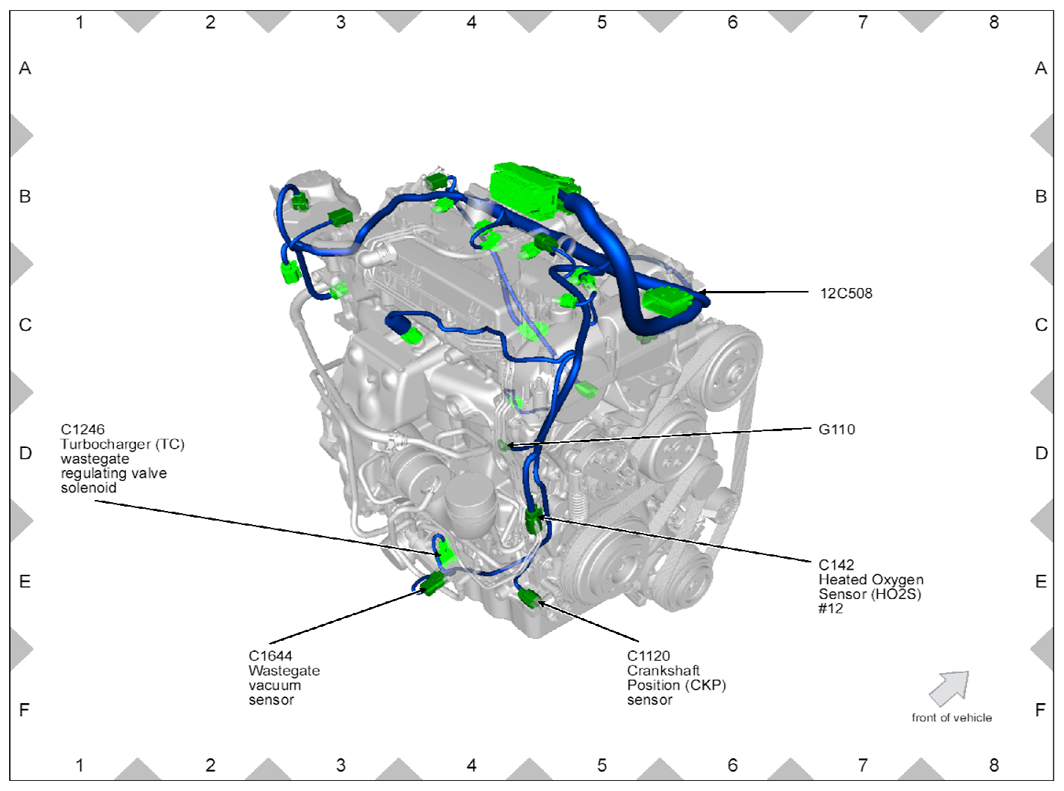

Fig 7: Front Engine Wiring Harness Connectors Location (3 Of 3)

G07898845

Courtesy of FORD MOTOR CO.

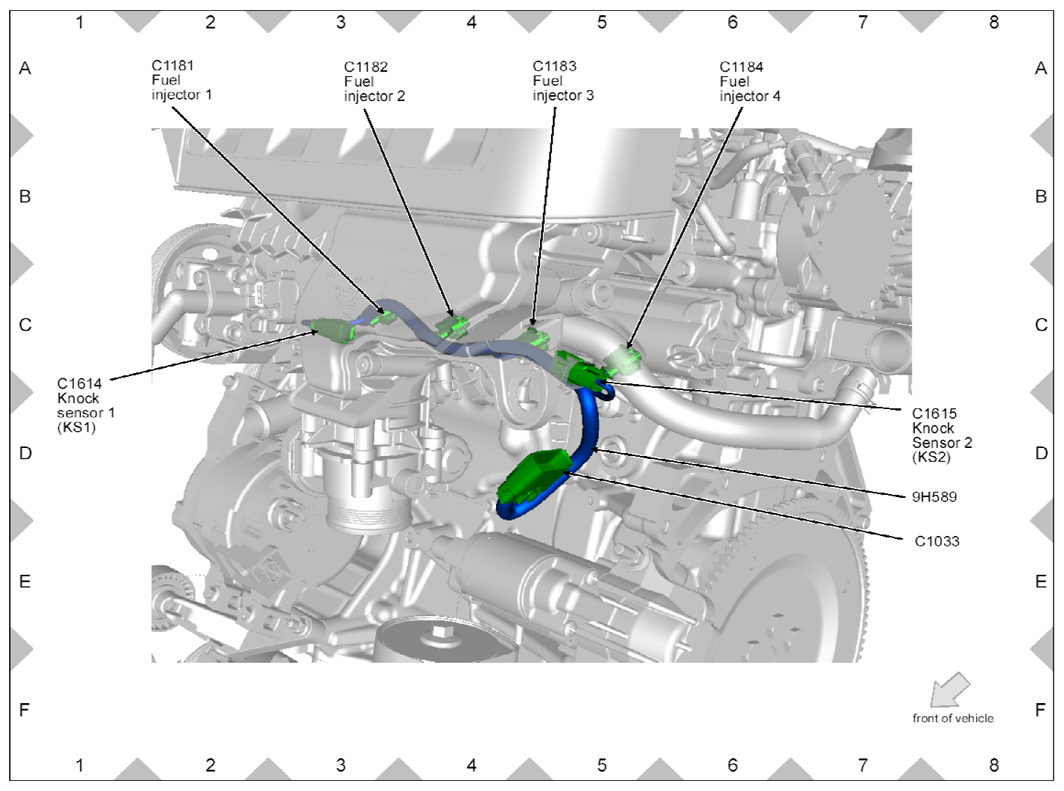

Fig 8: Front Middle Engine Wiring Harness Connectors Location

G07898846

Courtesy of FORD MOTOR CO.

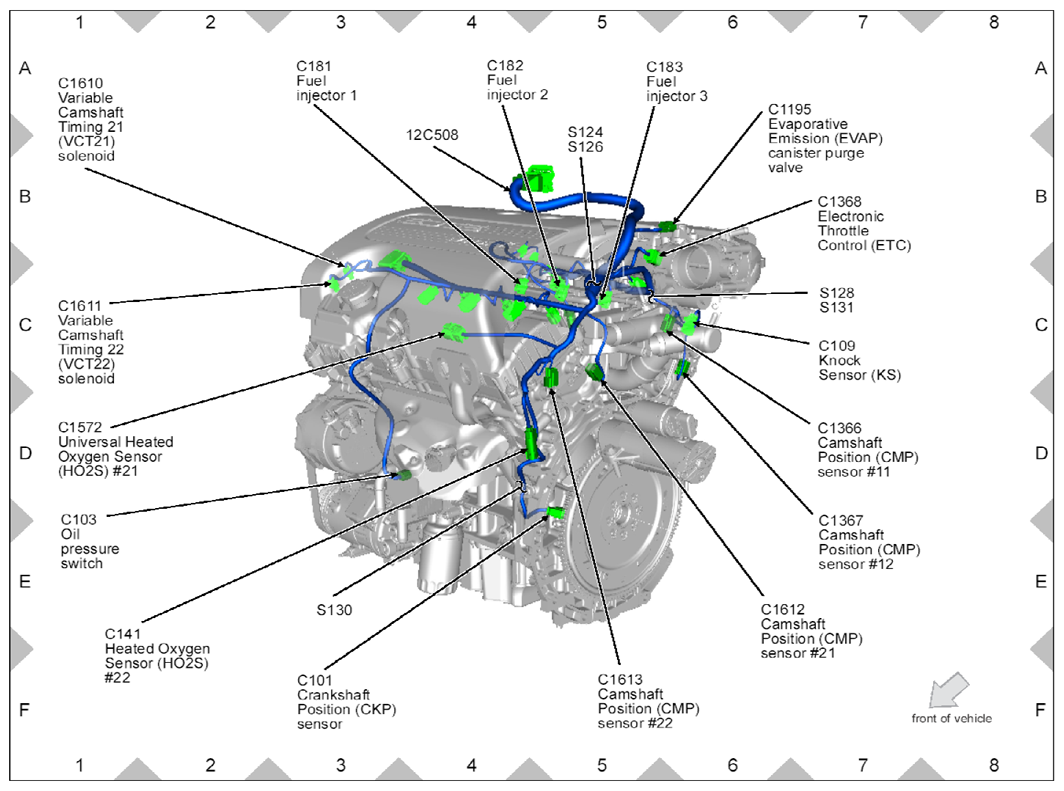

Fig 9: Rear Engine Wiring Harness Connectors Location (1 Of 3)

G07898847

Courtesy of FORD MOTOR CO.

Fig 10: Rear Engine Wiring Harness Connectors Location (2 Of 3)

G07898848

Courtesy of FORD MOTOR CO.

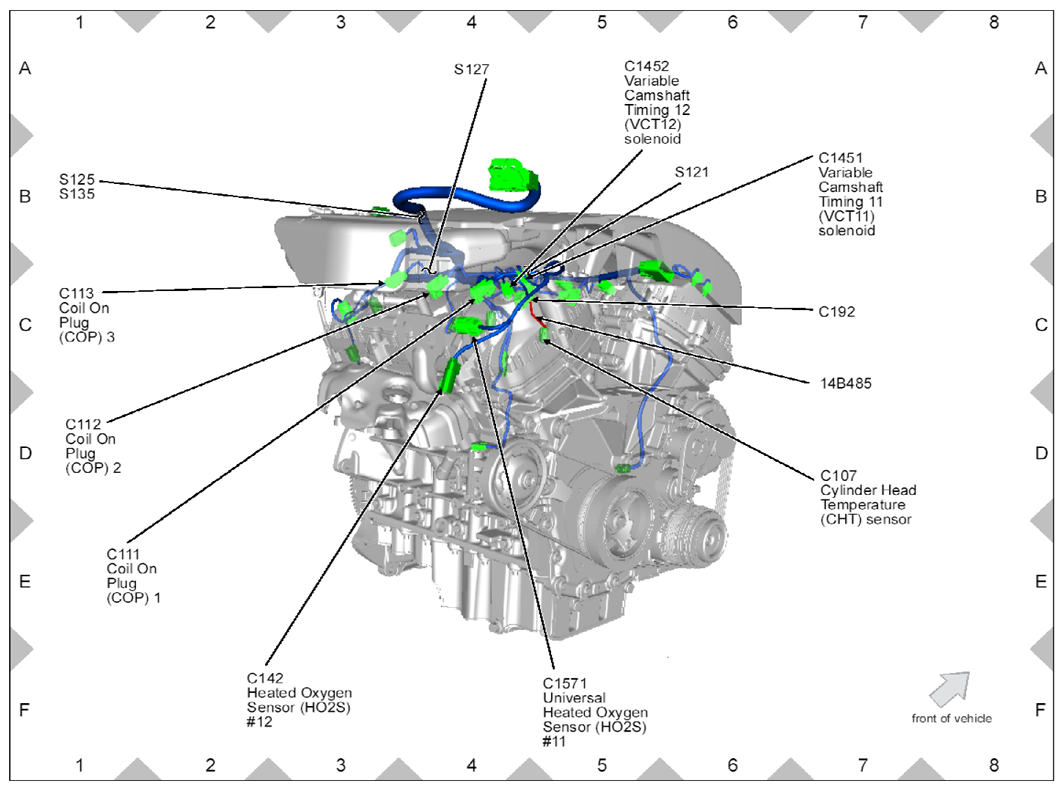

Fig 11: Rear Engine Wiring Harness Connectors Location (3 Of 3)

G07898849

Courtesy of FORD MOTOR CO.

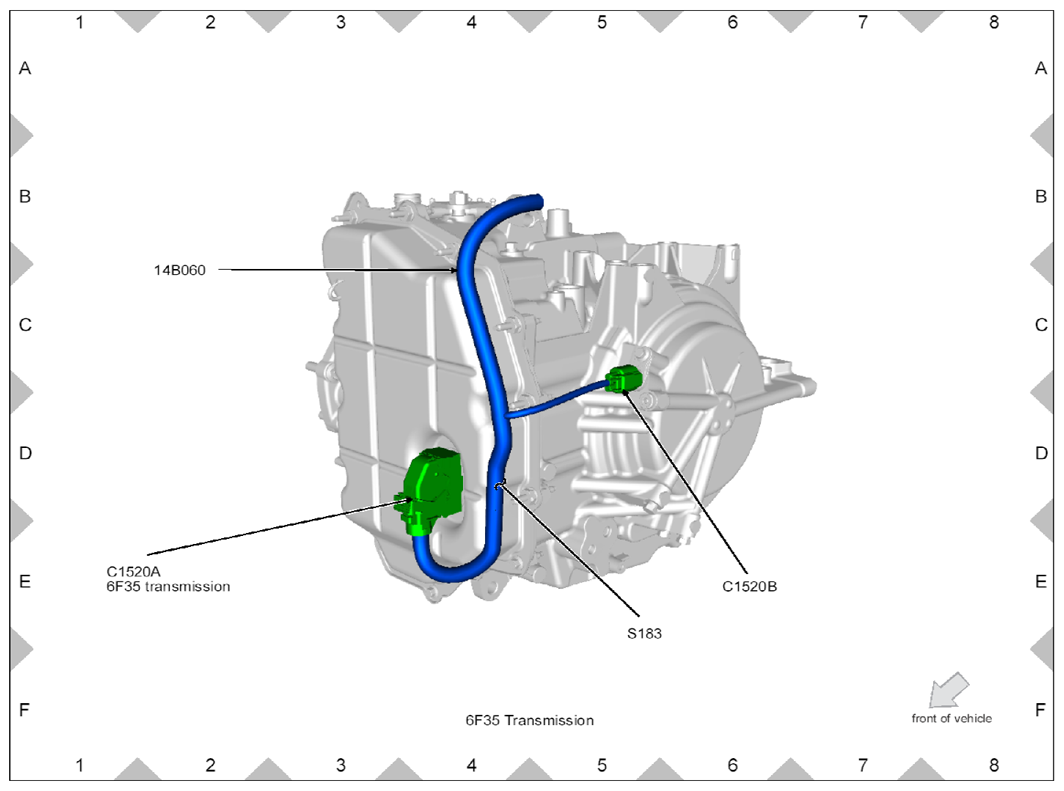

Fig 12: Transmission Wiring Harness Connectors Location (1 Of 2)

G07898850

Courtesy of FORD MOTOR CO.

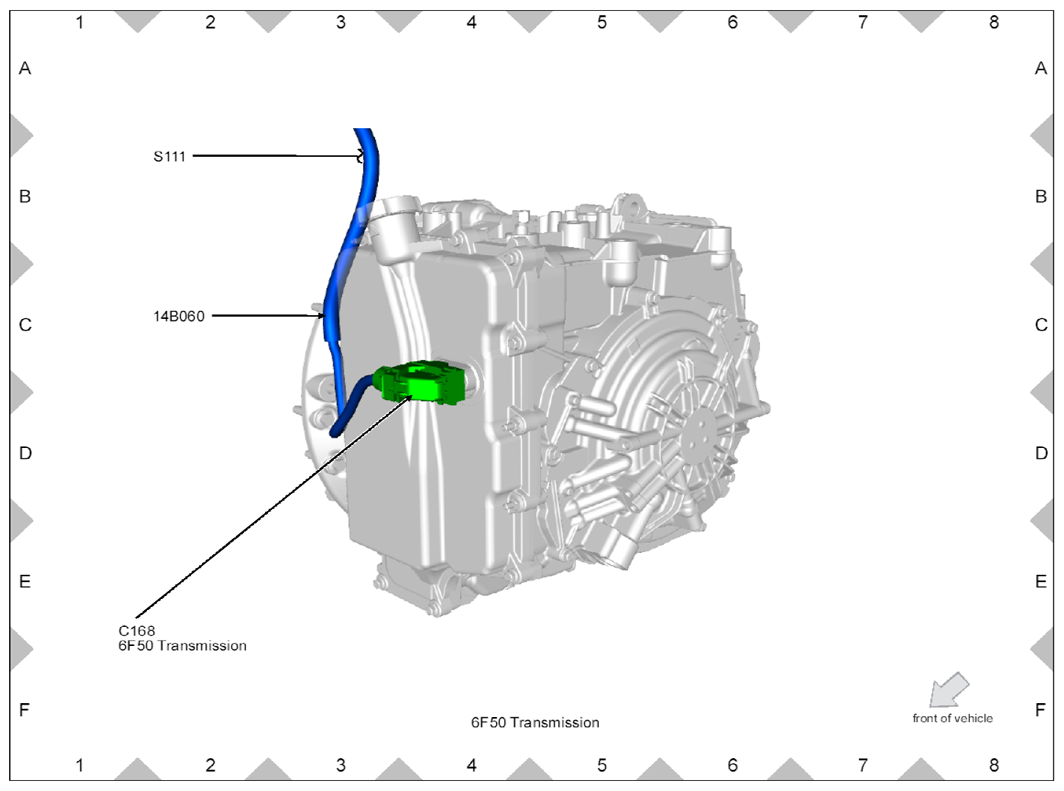

Fig 13: Transmission Wiring Harness Connectors Location (2 Of 2)

G07898851

Courtesy of FORD MOTOR CO.

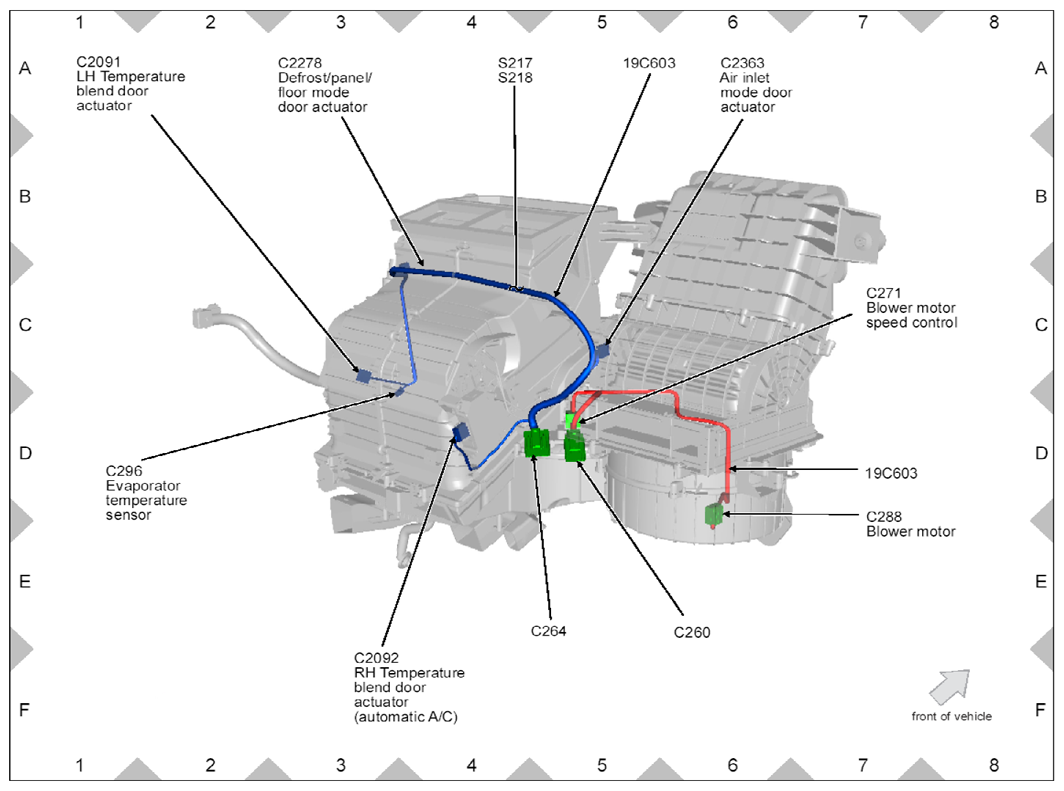

Fig 14: Blower Motor Wiring Harness Connectors Location

G07898852

Courtesy of FORD MOTOR CO.

Fig 15: Dashboard Panel Wiring Harness Connectors Location (1 Of 2)

G07898853

Courtesy of FORD MOTOR CO.

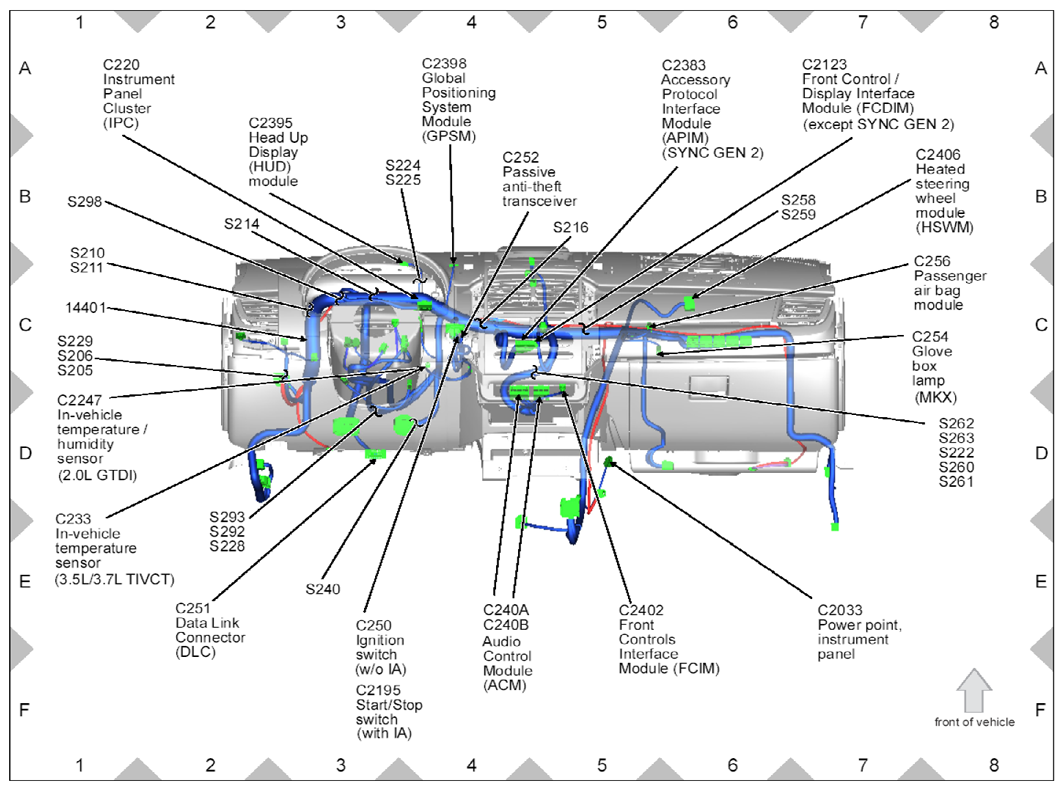

Fig 16: Dashboard Panel Wiring Harness Connectors Location (2 Of 2)

G07898854

Courtesy of FORD MOTOR CO.

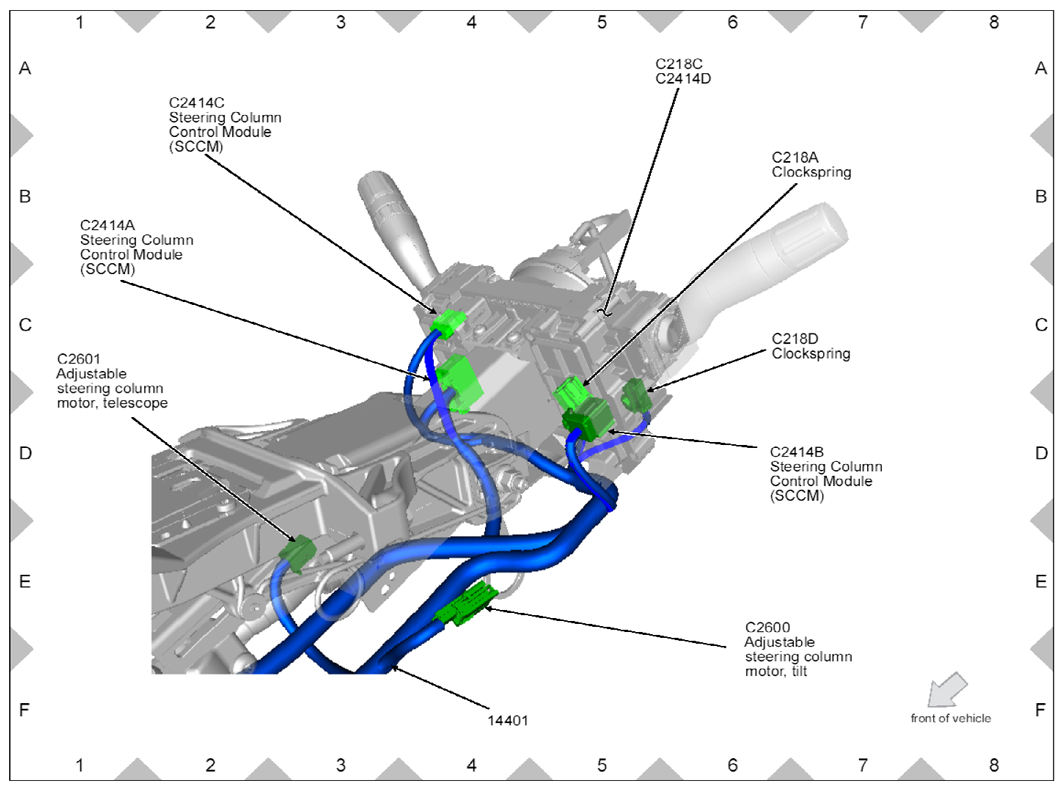

Fig 17: Steering Column Wiring Harness Connectors Location

G07898855

Courtesy of FORD MOTOR CO.

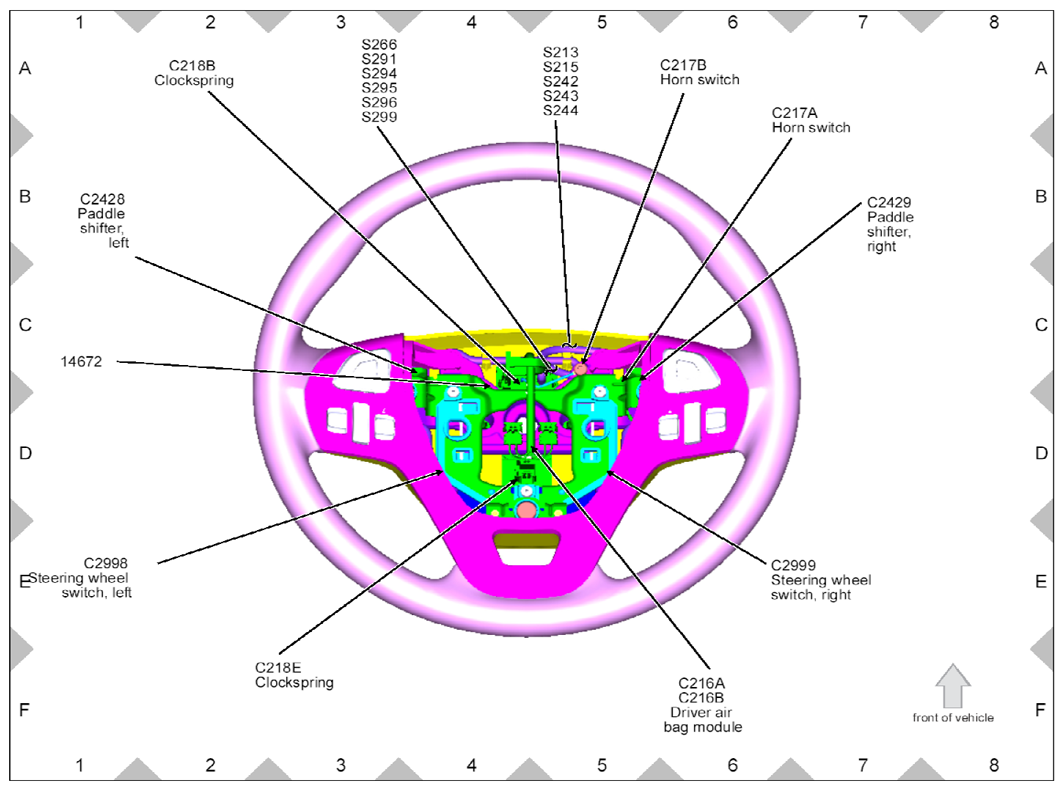

Fig 18: Steering Wheel Wiring Harness Connectors Location

G07898856

Courtesy of FORD MOTOR CO.

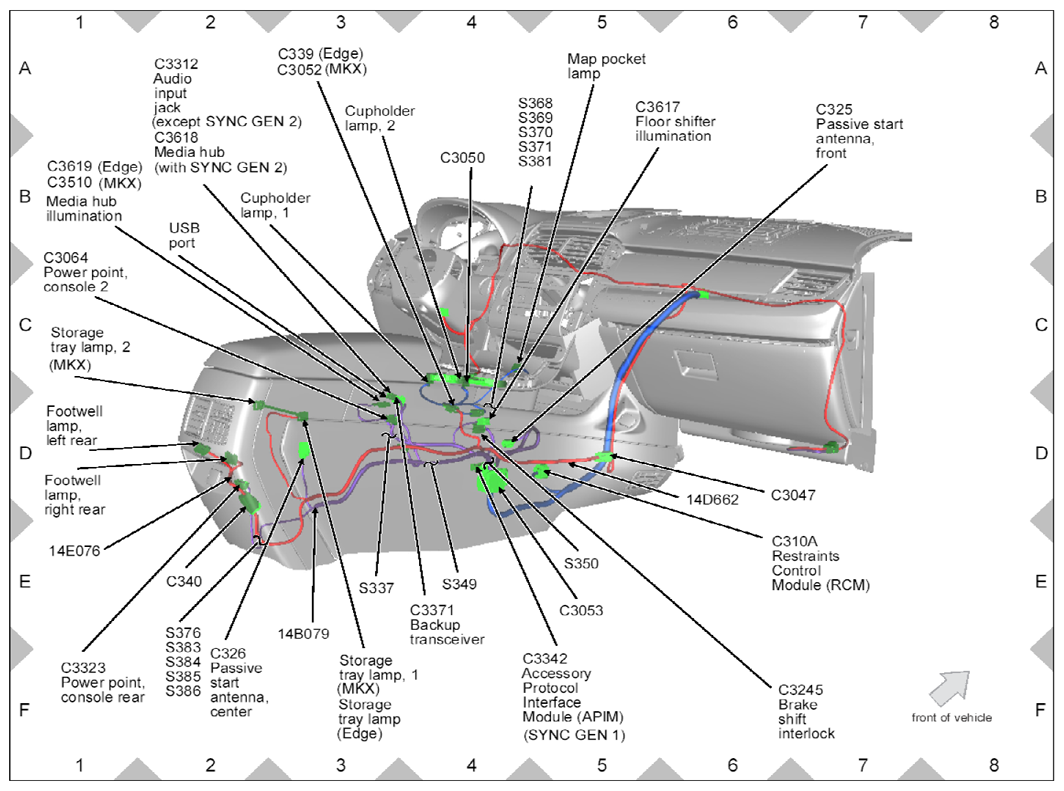

Fig 19: Center Console Wiring Harness Connectors Location

G07898857

Courtesy of FORD MOTOR CO.

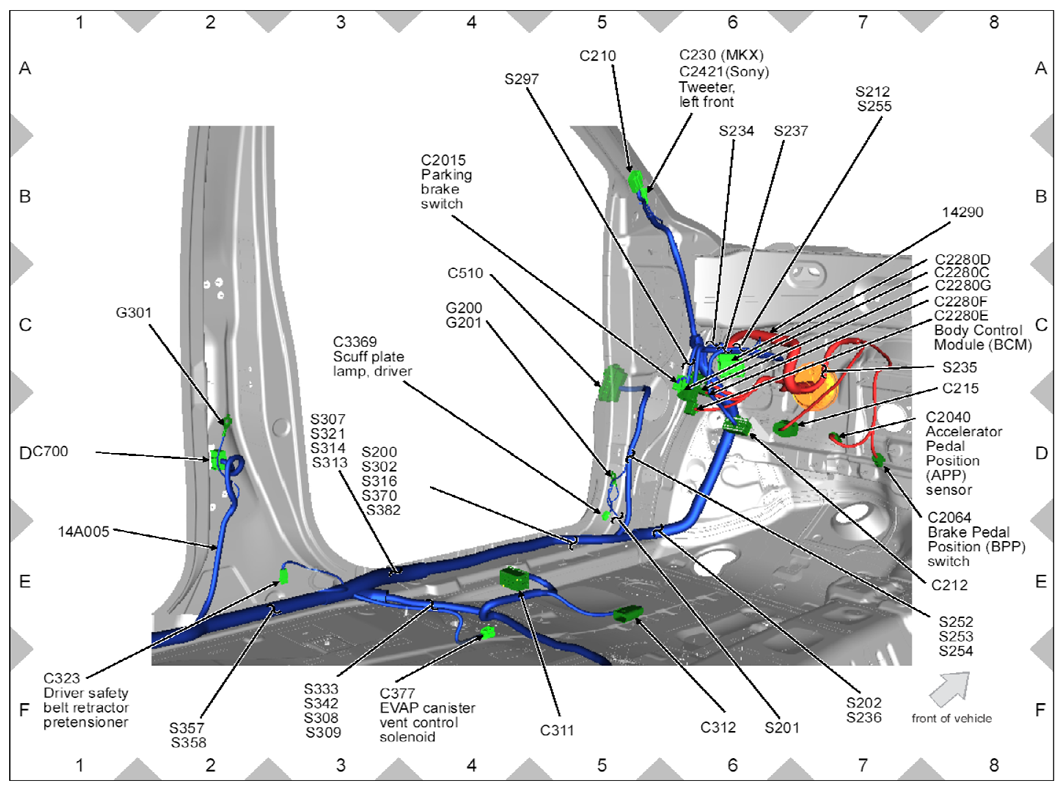

Fig 20: Front Compartment Wiring Harness Connectors Location (1 Of 2)

G07898858

Courtesy of FORD MOTOR CO.

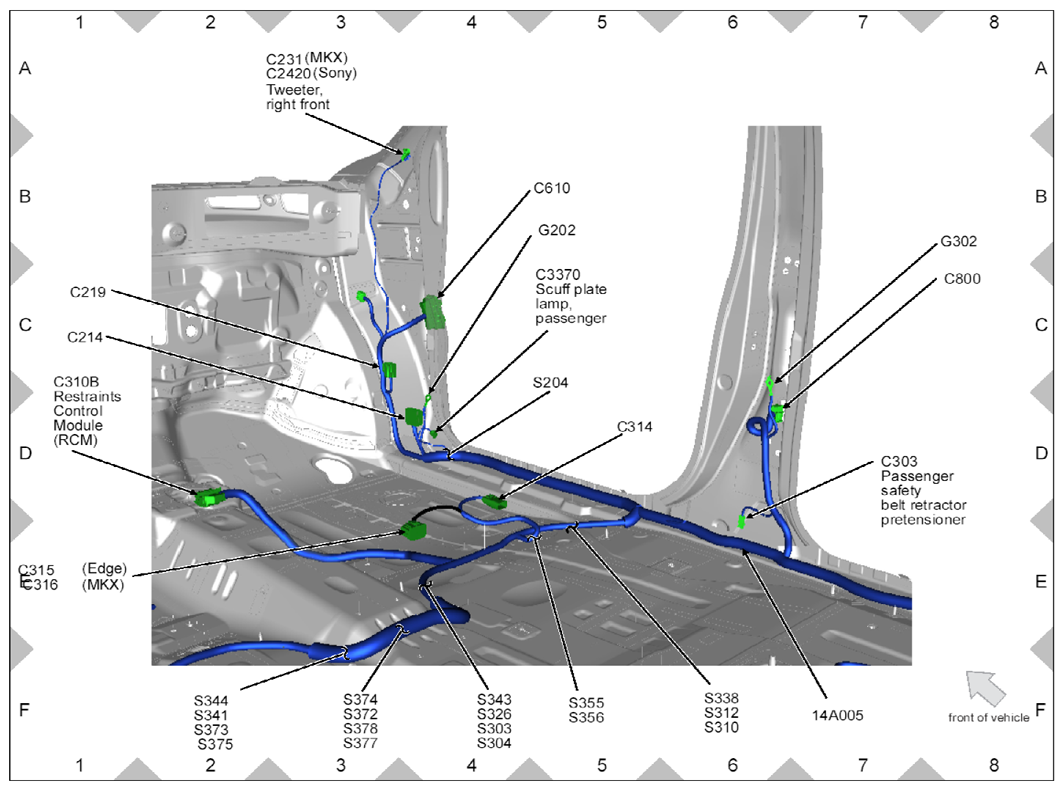

Fig 21: Front Compartment Wiring Harness Connectors Location (2 Of 2)

G07898859

Courtesy of FORD MOTOR CO.

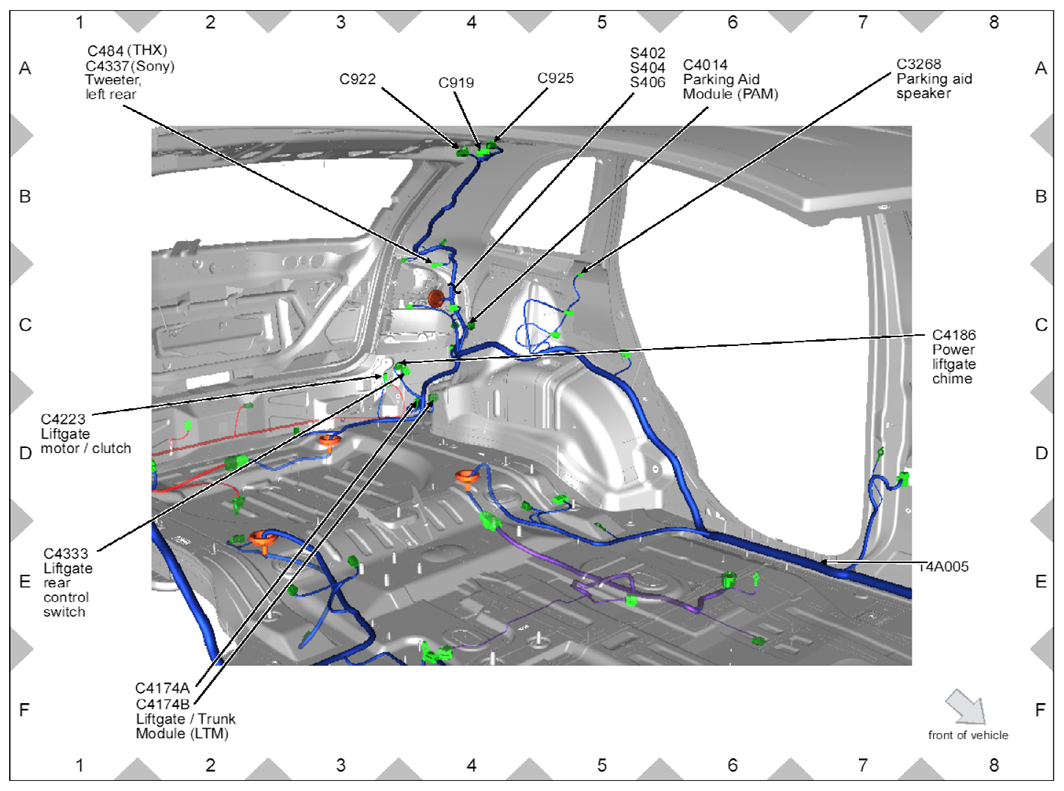

Fig 22: Rear Compartment Wiring Harness Connectors Location (1 Of 4)

G07898860

Courtesy of FORD MOTOR CO.

Fig 23: Rear Compartment Wiring Harness Connectors Location (2 Of 4)

G07898861

Courtesy of FORD MOTOR CO.

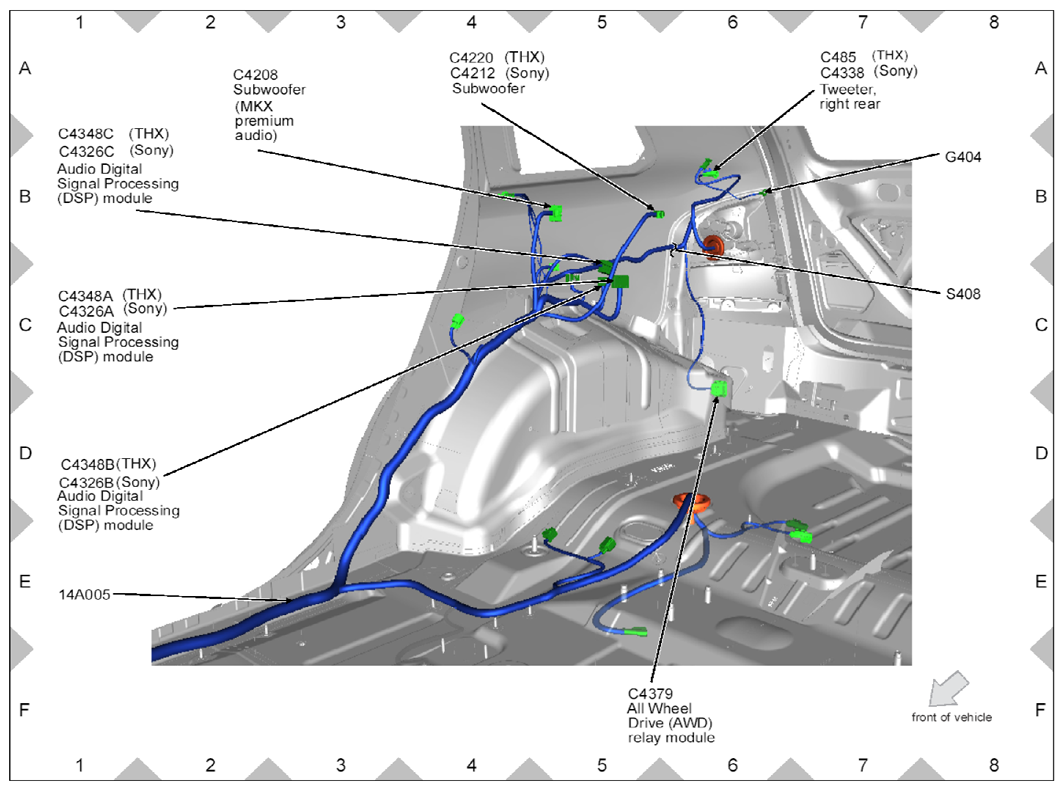

Fig 24: Rear Compartment Wiring Harness Connectors Location (3 Of 4)

G07898862

Courtesy of FORD MOTOR CO.

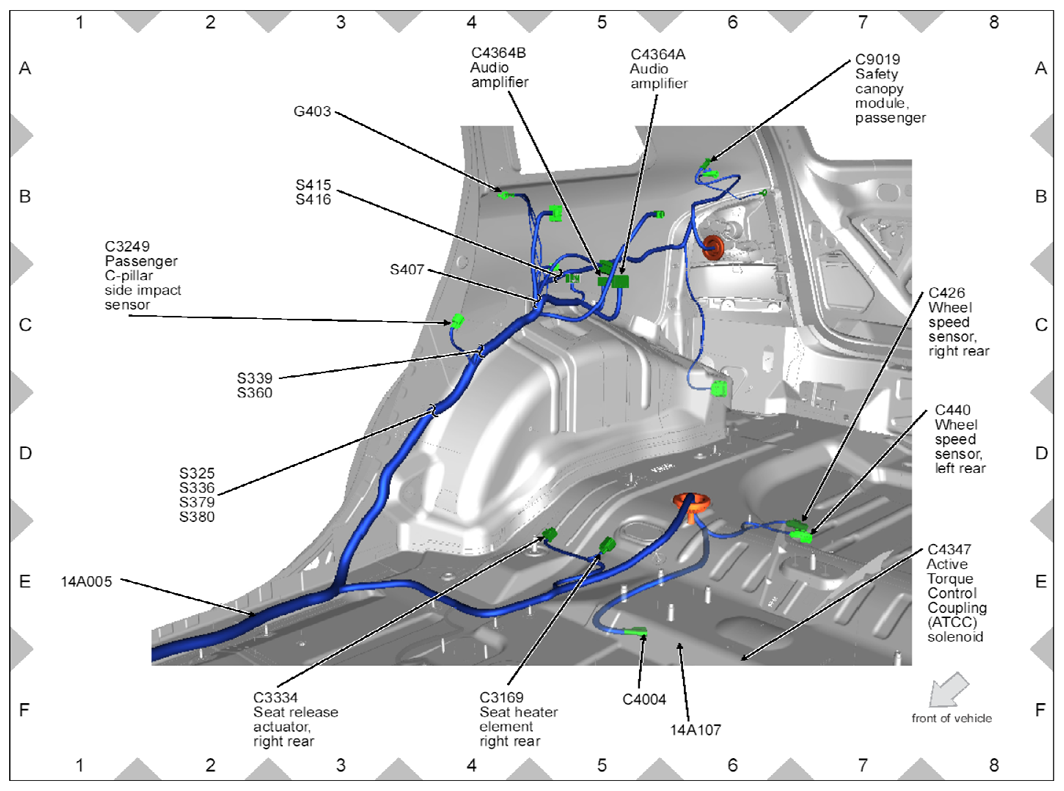

Fig 25: Rear Compartment Wiring Harness Connectors Location (4 Of 4)

G07898863

Courtesy of FORD MOTOR CO.

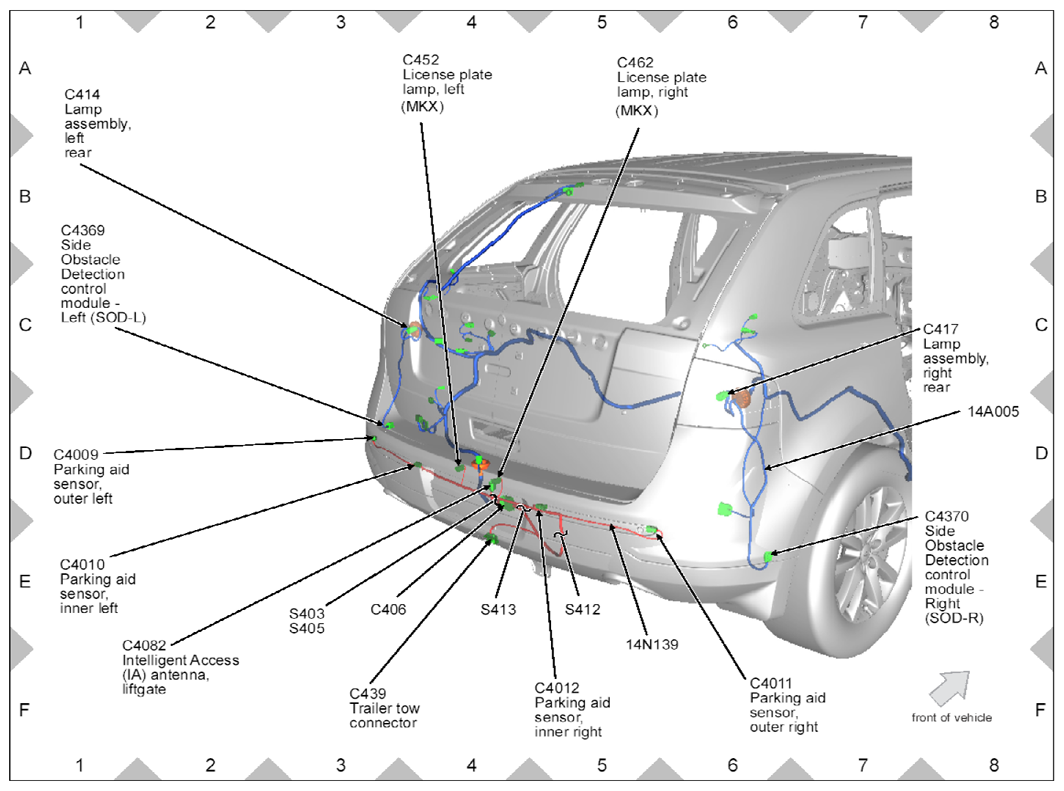

Fig 26: Back Side Door Wiring Harness Connectors Location

G07898864

Courtesy of FORD MOTOR CO.

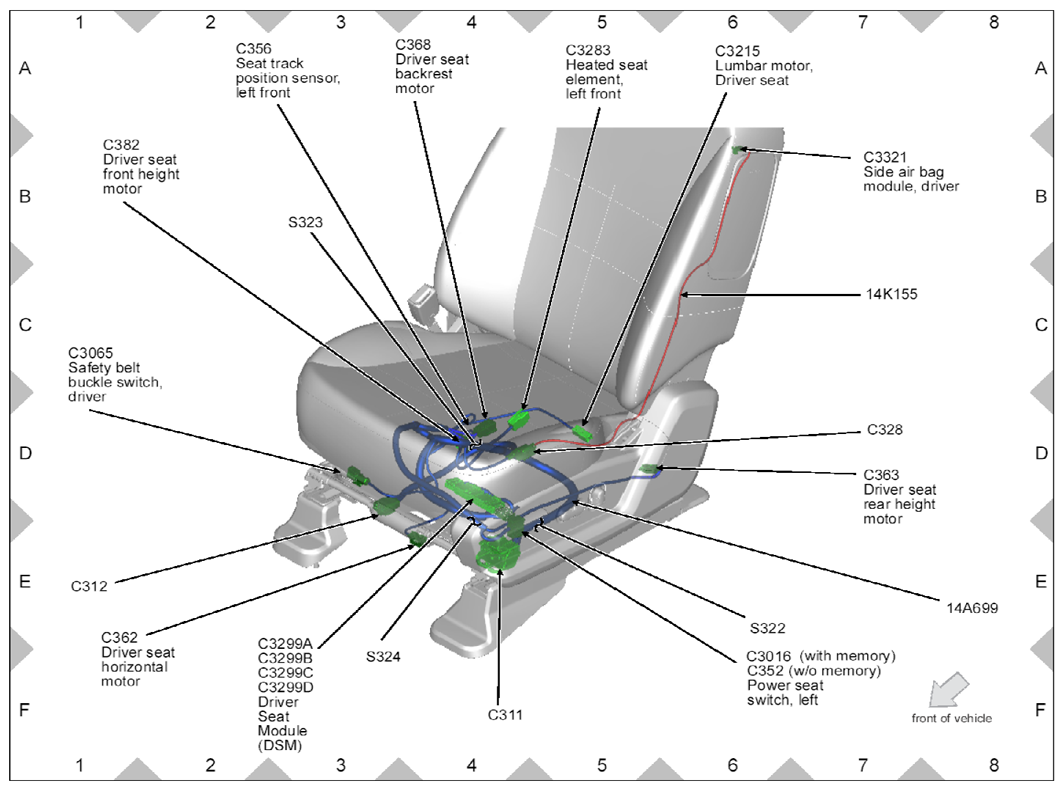

Fig 27: Driver Seat Wiring Harness Connectors Location (1 Of 2)

G07898865

Courtesy of FORD MOTOR CO.

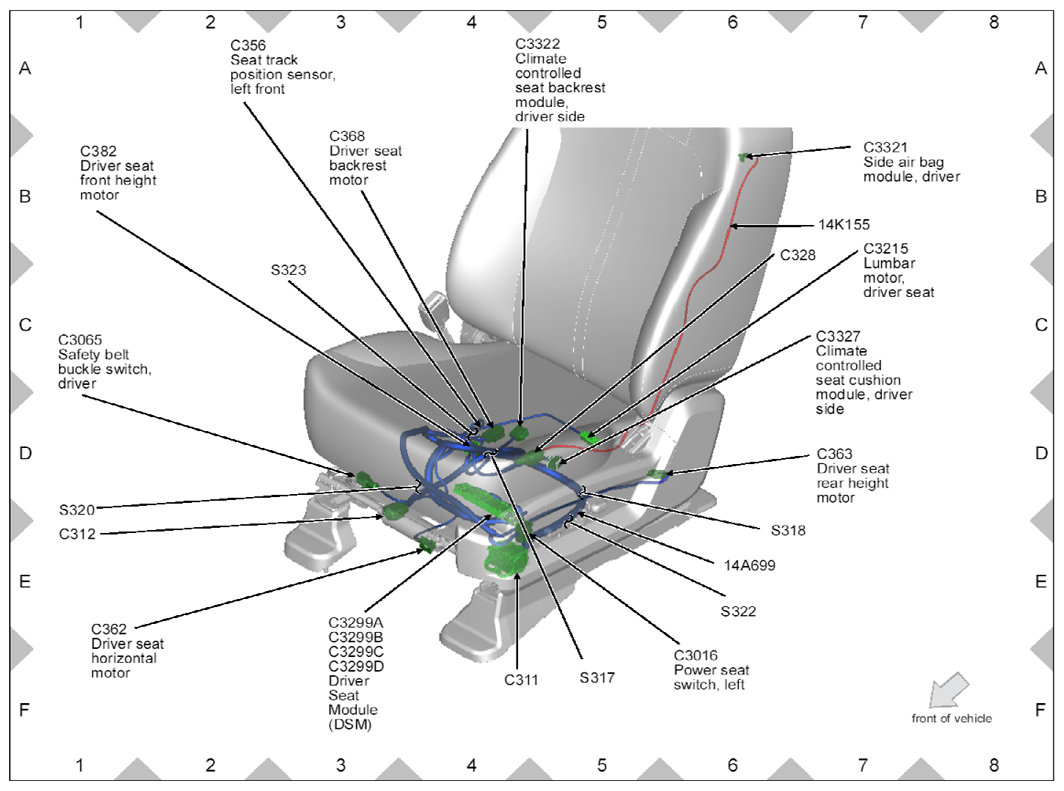

Fig 28: Driver Seat Wiring Harness Connectors Location (2 Of 2)

G07898866

Courtesy of FORD MOTOR CO.

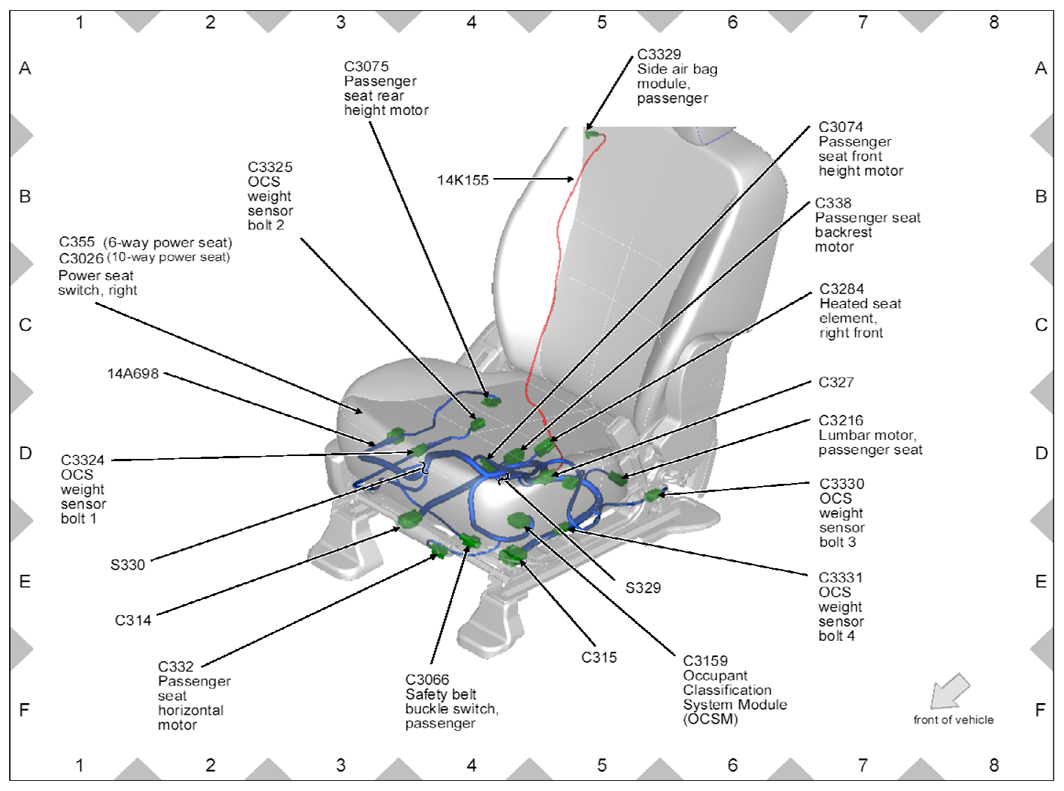

Fig 29: Passenger Seat Wiring Harness Connectors Location (1 Of 2)

G07898867

Courtesy of FORD MOTOR CO.

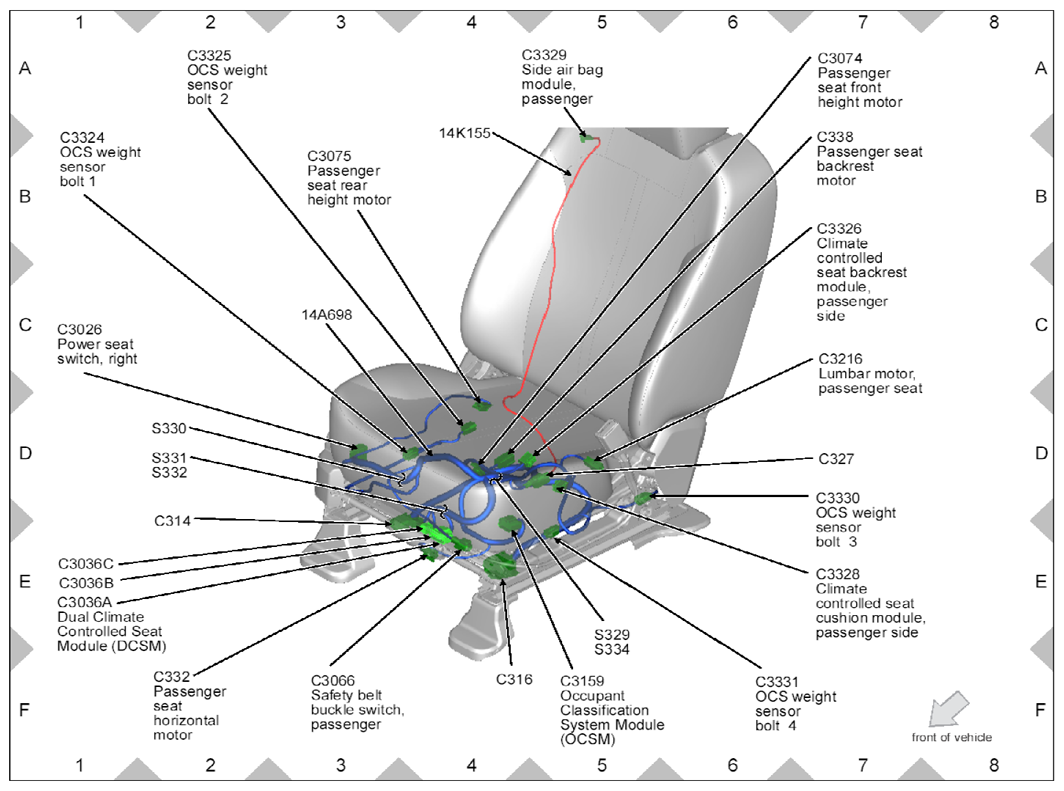

Fig 30: Passenger Seat Wiring Harness Connectors Location (2 Of 2)

G07898868

Courtesy of FORD MOTOR CO.

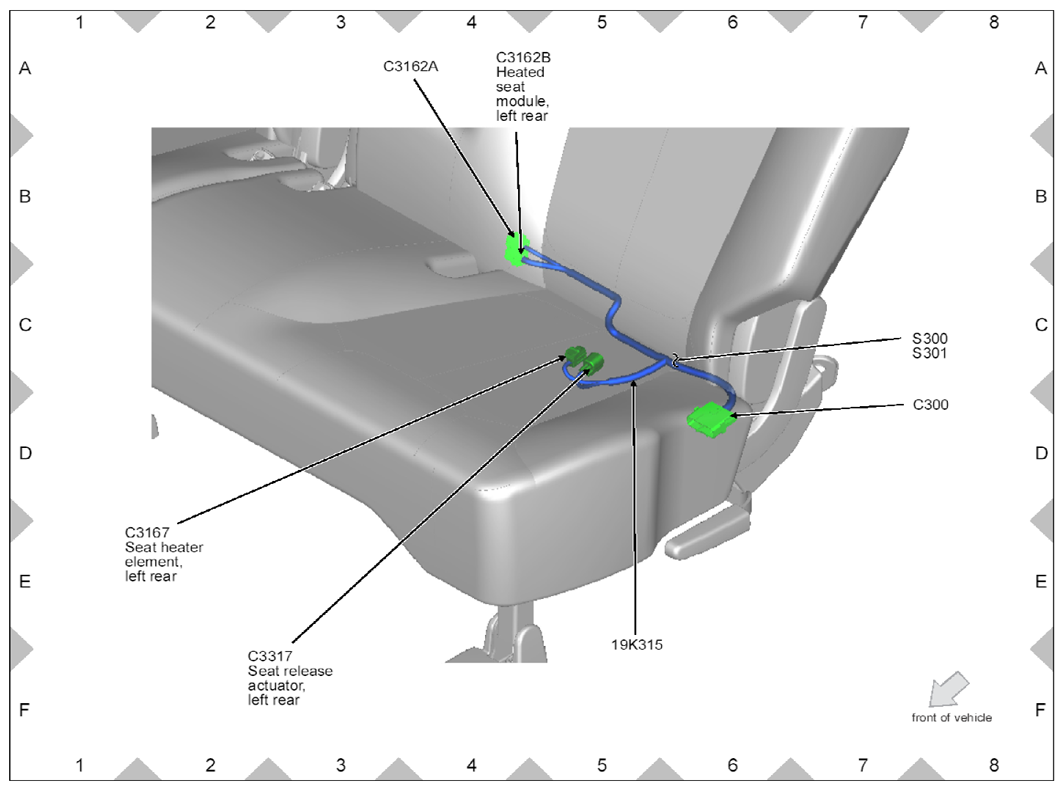

Fig 31: Middle Seat Wiring Harness Connectors Location

G07898869

Courtesy of FORD MOTOR CO.

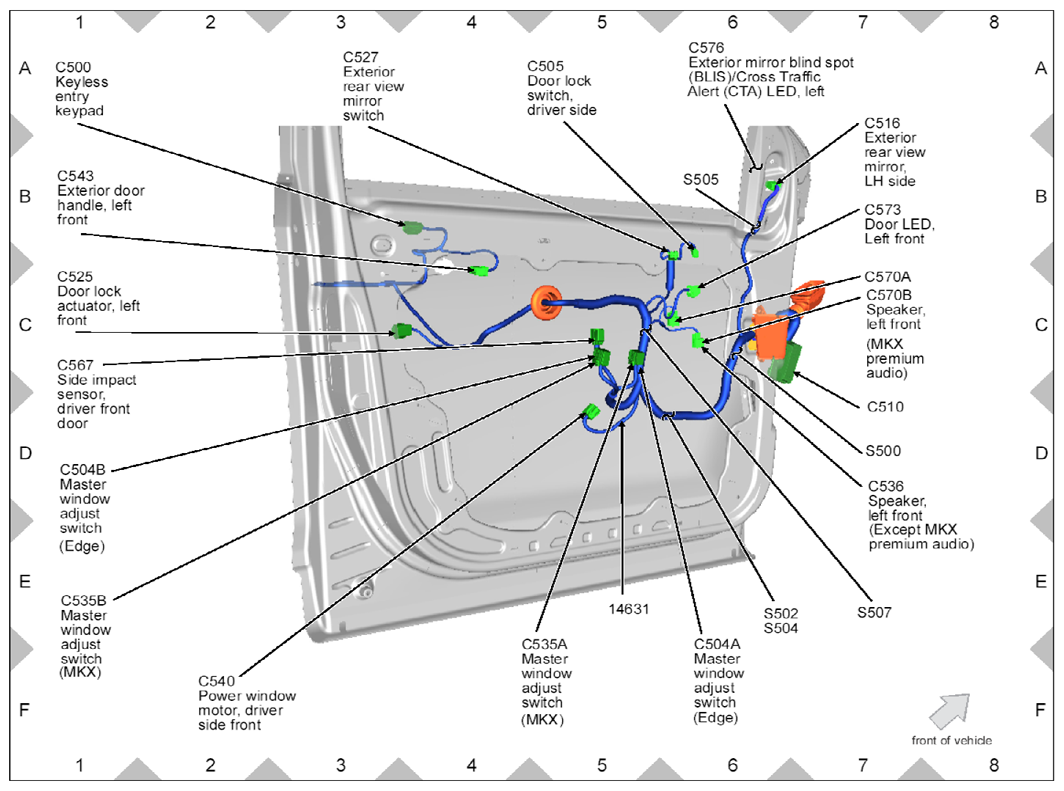

Fig 32: Driver Front Door Side Wiring Harness Connectors Location

G07898870

Courtesy of FORD MOTOR CO.

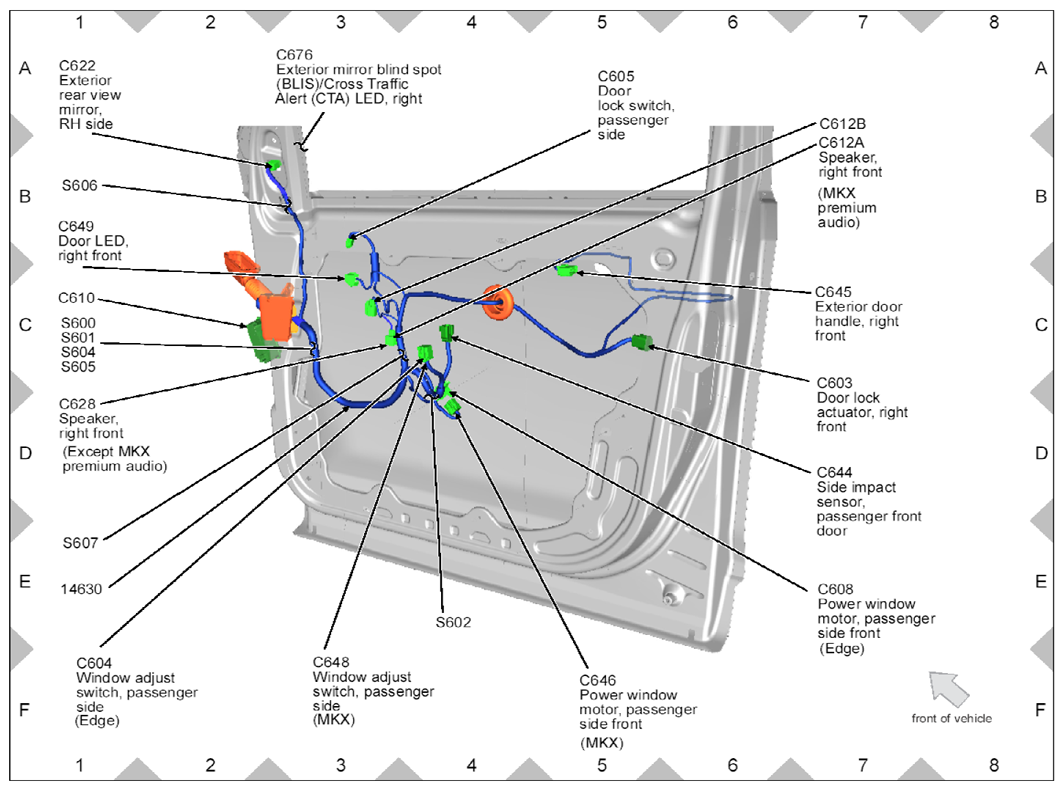

Fig 33: Passenger Front Door Side Wiring Harness Connectors Location

G07898871

Courtesy of FORD MOTOR CO.

Fig 34: Passenger Rear Door Side Wiring Harness Connectors Location (1 Of 2)

G07898872

Courtesy of FORD MOTOR CO.

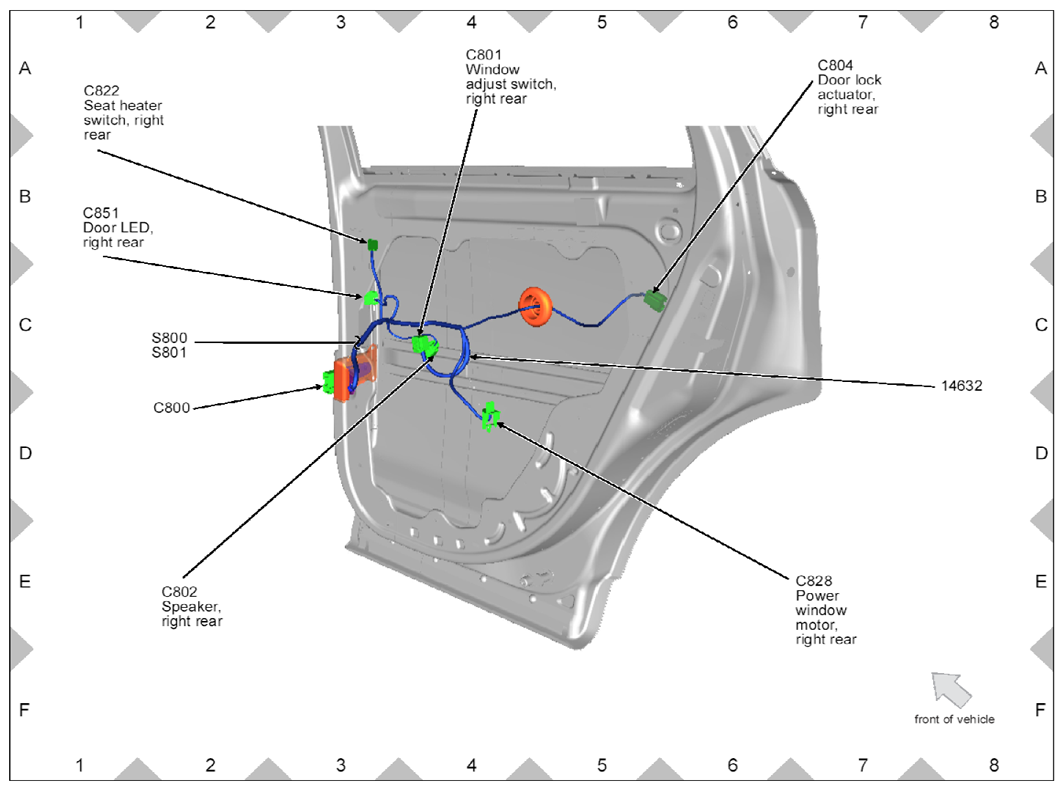

Fig 35: Passenger Rear Door Side Wiring Harness Connectors Location (2 Of 2)

G07898873

Courtesy of FORD MOTOR CO.

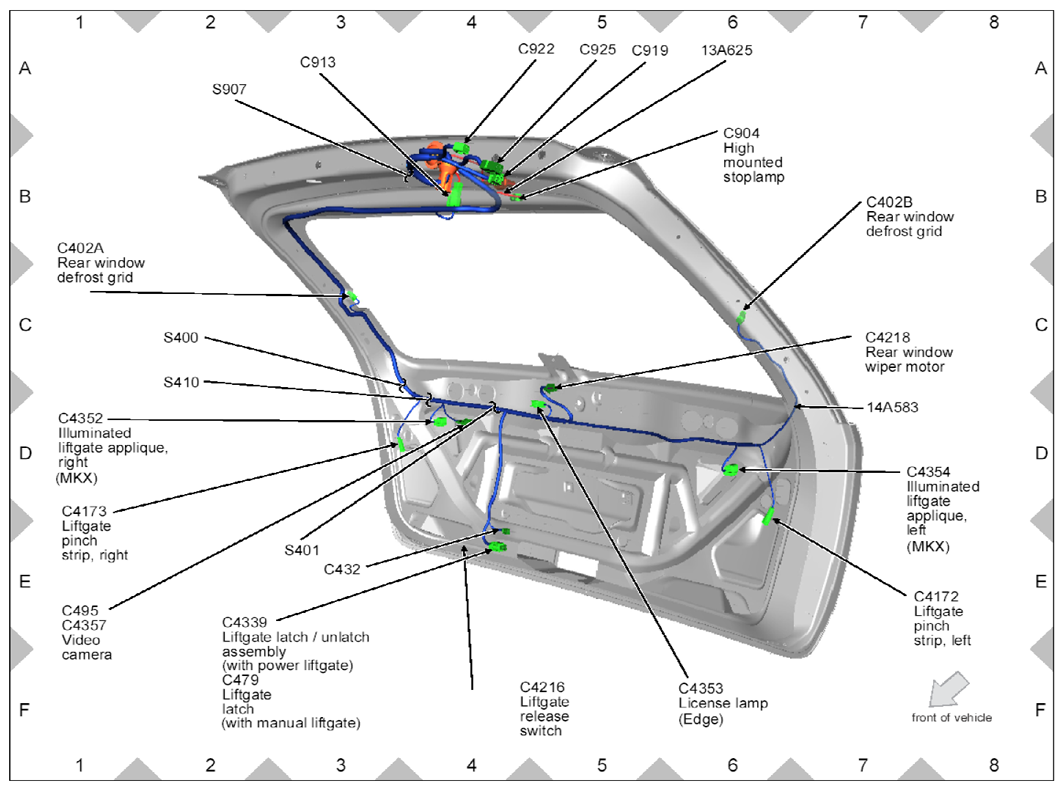

Fig 36: Back Door Side Wiring Harness Connectors Location

G07898874

Courtesy of FORD MOTOR CO.

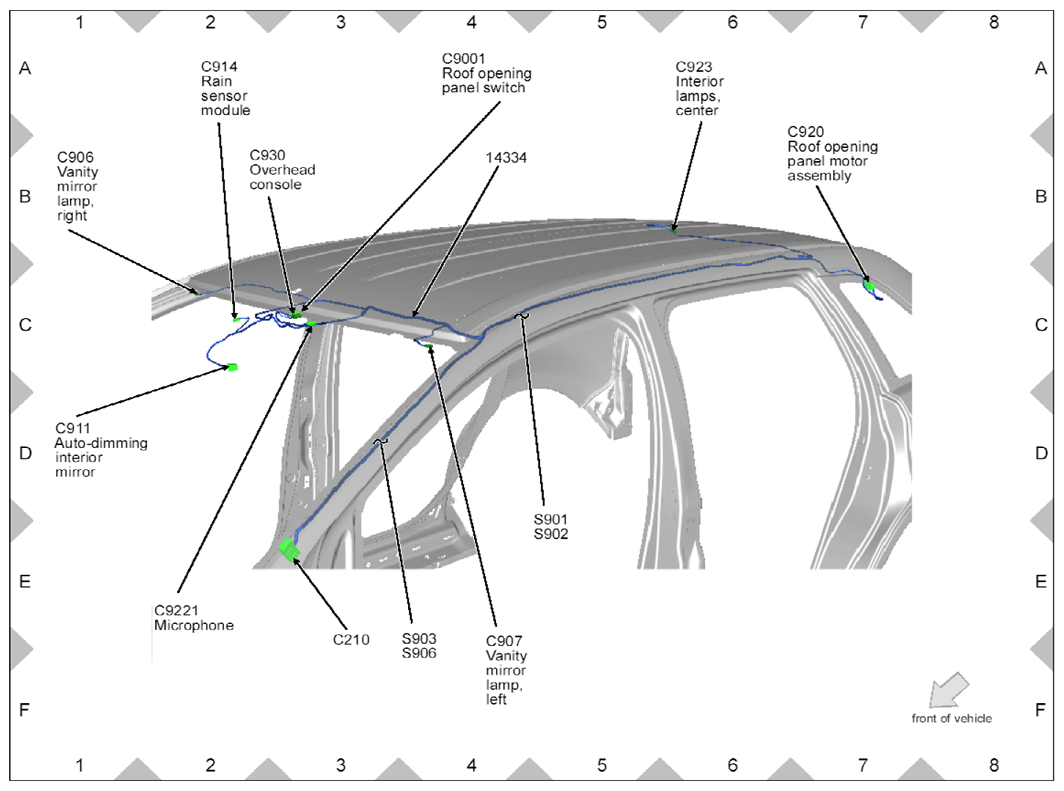

Fig 37: Roof Opening Panel Module Wiring Harness Connectors Location

G07898875

Courtesy of FORD MOTOR CO.
