Transaxle Support Insulator - Anti-Roll: Notes
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Threadlock and Sealer TA-25 |
WSK-M2G351-A5 |

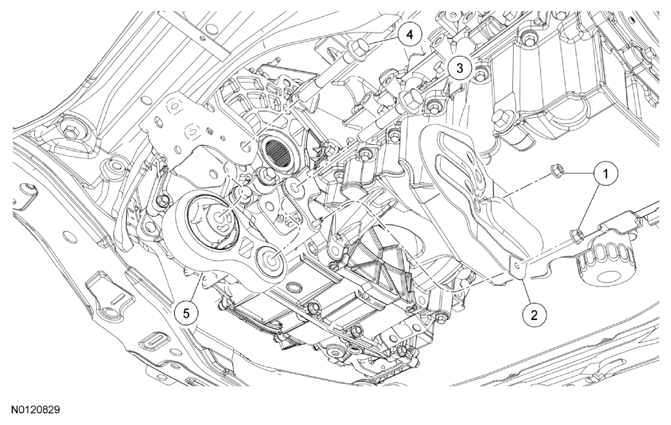

| Item | Part Number | Description |
|---|---|---|
| 1 | W700101 | Roll restrictor heat shield nut (2 required) |
| 2 | 6C038 | Roll restrictor heat shield |
| 3 | W711843 | Roll restrictor-to-transaxle bracket through bolt |
| 4 | W706674 | Roll restrictor-to-subframe through bolt |
| 5 | 6068 | Roll restrictor |
