All Wheel Drive (AWD) Relay Module: Notes

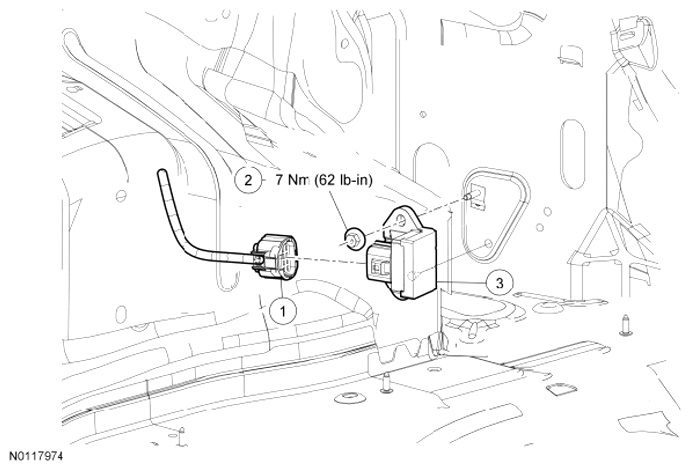

Fig 1: Identifying AWD Relay Module With Nut And Electrical Connector
G07402191Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - All-Wheel Drive (AWD) relay module electrical connector (part of 14A005)
2 N811309 AWD relay module nut
3 7E453 AWD relay module
