Fuel System Pressure Test
SPECIAL TOOLS DESCRIPTION CHART
| Fuel Pressure Test Adapter 310-180 |
|
| Fuel Pressure Test Kit 310-D009 (D95L-7211A) or equivalent |
|
| Fuel Pressure T-Adapter 3/8" 310-D252 or equivalent |
WARNING:
Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.
WARNING:
Before working on or disconnecting any of the fuel tubes or fuel system components, relieve the fuel system pressure to prevent accidental spraying of fuel. Fuel in the fuel system remains under high pressure, even when the engine is not running. Failure to follow this instruction may result in serious personal injury.
WARNING:
Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.
WARNING:
When handling fuel, always observe fuel handling precautions and be prepared in the event of fuel spillage. Spilled fuel may be ignited by hot vehicle components or other ignition sources. Failure to follow these instructions may result in serious personal injury.
All vehicles
- Release the fuel system pressure. For additional information, refer to FUEL SYSTEM PRESSURE RELEASE .
- Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
- Remove the Air Cleaner (ACL) outlet pipe. For additional information, refer to
INTAKE AIR DISTRIBUTION & FILTERING
.
2.0L Gasoline Turbocharged Direct Injection (GTDI)
- Remove the fuel injection pump noise insulator shield.
- Disconnect the front fuel supply tube-to-fuel injection pump quick connect coupling. For additional information, refer to QUICK CONNECT COUPLING .

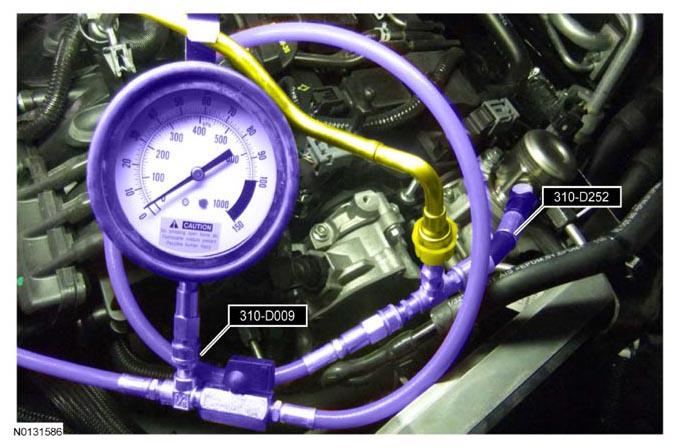

- Install the Fuel Pressure T-Adapter 3/8" and Fuel Pressure Test Kit between the fuel tube and the fuel injection pump.Fig 1: Identifying Fuel Pressure T-Adapter 3/8 And Fuel Pressure Test Kit Between Fuel Tube And Fuel Injection Pump
Courtesy of FORD MOTOR CO.
3.5L, 3.7L engines
- Disconnect the fuel tube-to-fuel rail quick connect coupling. For additional information, refer to QUICK CONNECT COUPLING .

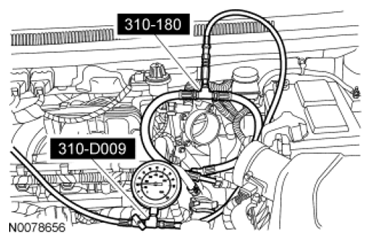

- Install the Fuel Pressure Test Adapter and the Fuel Pressure Test Kit between the fuel tube and the fuel rail.Fig 2: Identifying Fuel Pressure Test Adapter And Fuel Pressure Test Kit Between Fuel Tube And Fuel Rail
Courtesy of FORD MOTOR CO.
All vehicles
- Install the ACL outlet pipe. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
- Connect the IFS switch electrical connector.
- Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
- Test the fuel system pressure to make sure it is within the specified range. For additional information, refer to SPECIFICATIONS .
NOTE:
The ACL outlet pipe must be re-installed prior to completing the fuel system pressure test.
NOTE:
The Inertia Fuel Shutoff (IFS) switch was previously disconnected to release the fuel system pressure and must be reconnected to complete the fuel system pressure test.
NOTE:
Carry out a Key ON Engine OFF (KOEO) visual inspection for fuel leaks prior to the Fuel System Pressure Test.
NOTE:
After completing the Fuel System Pressure Test, open the drain valve on the Fuel Pressure Test Kit and release any residual fuel into a suitable container prior to removing the Fuel Pressure Test Adapter and the Fuel Pressure Test Kit.
