Test TA: Transmission Range (TR) Sensor

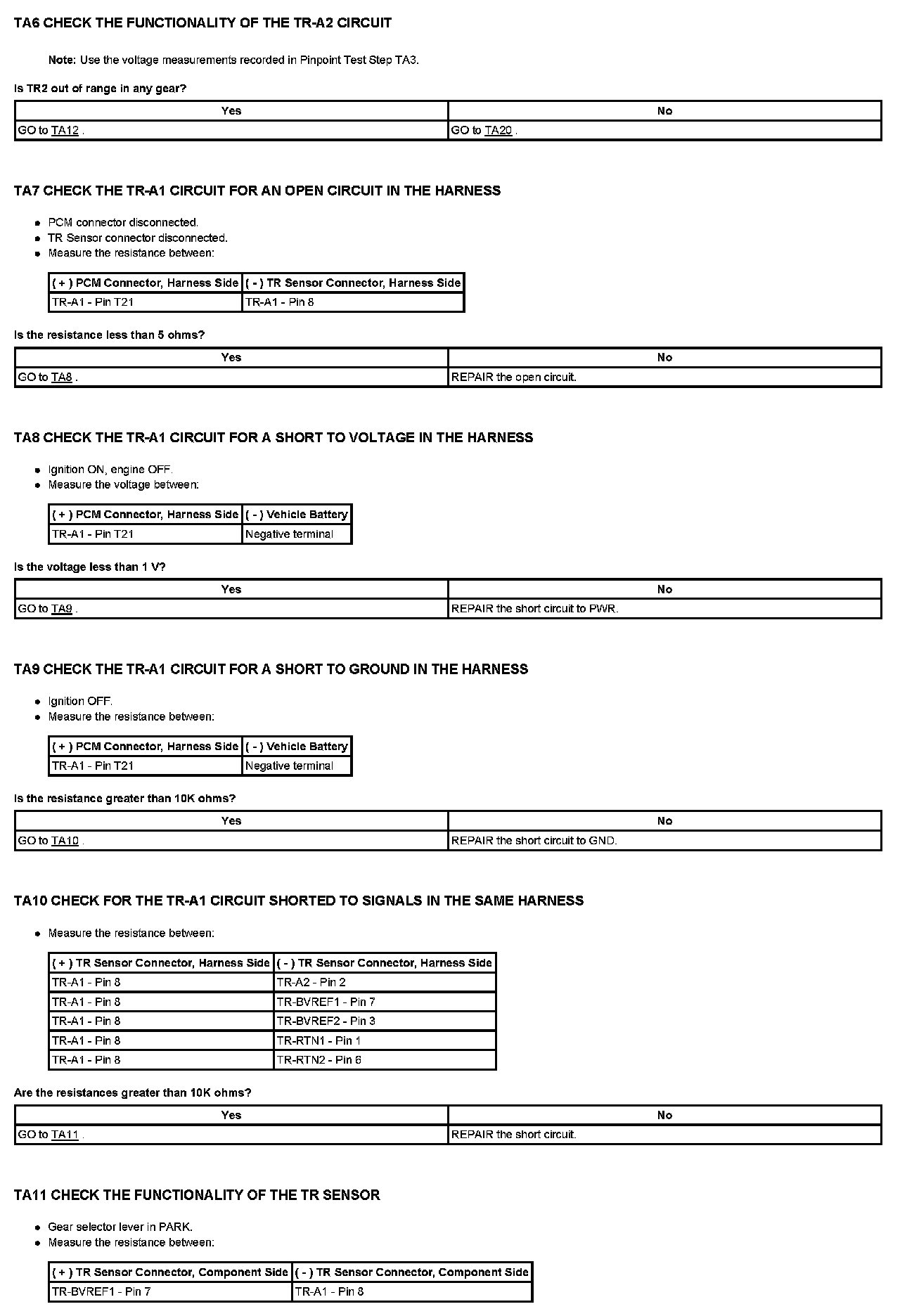

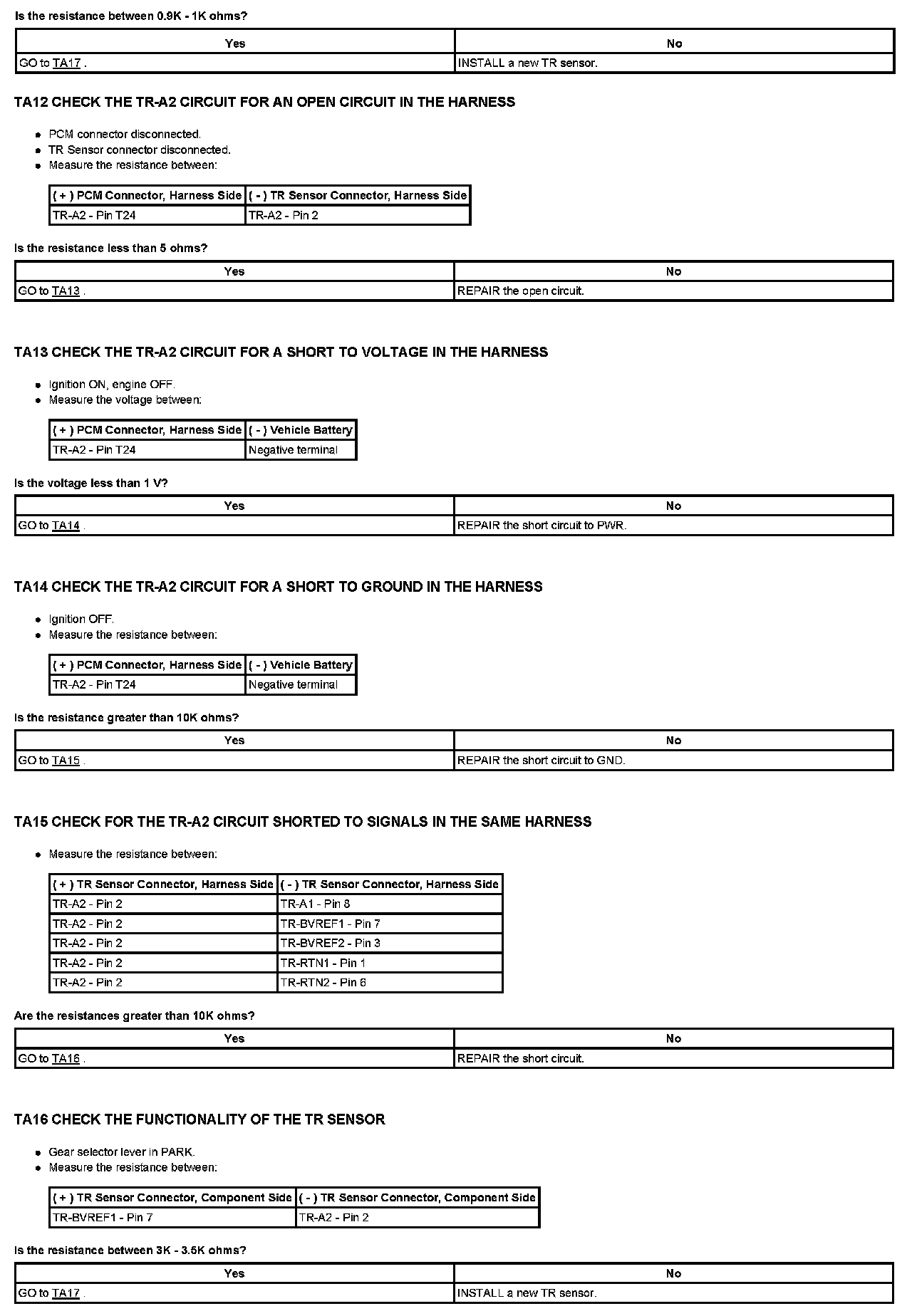

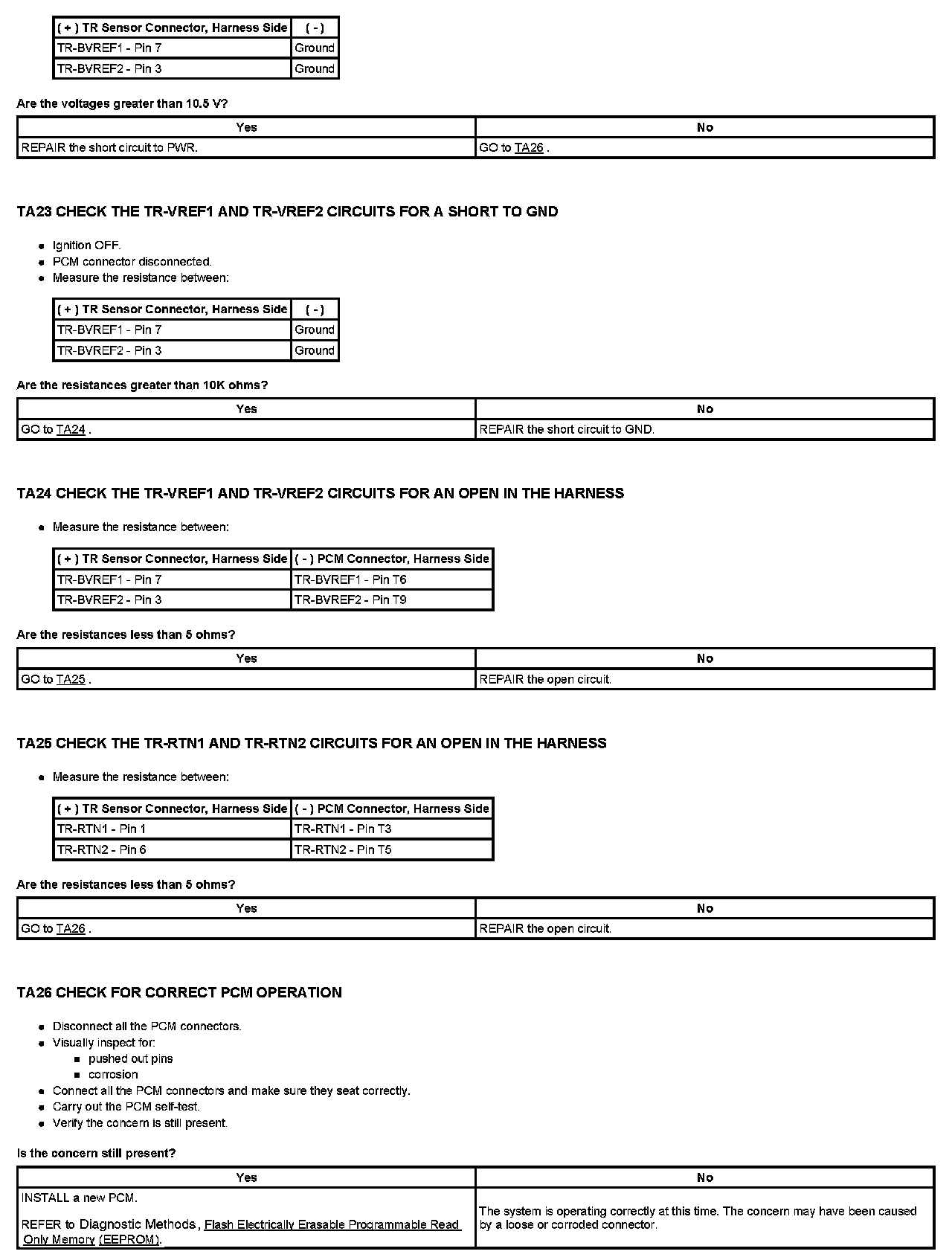

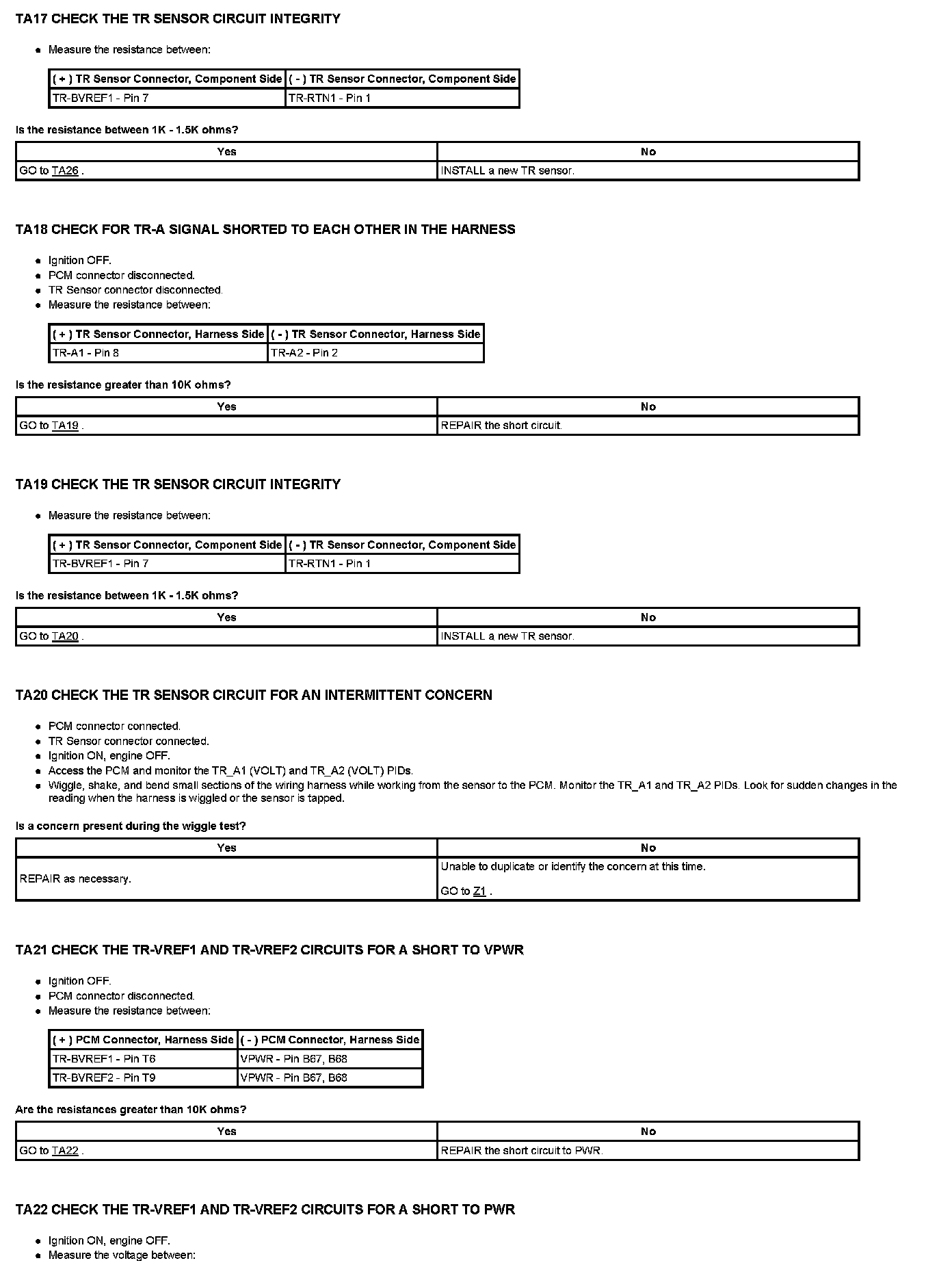

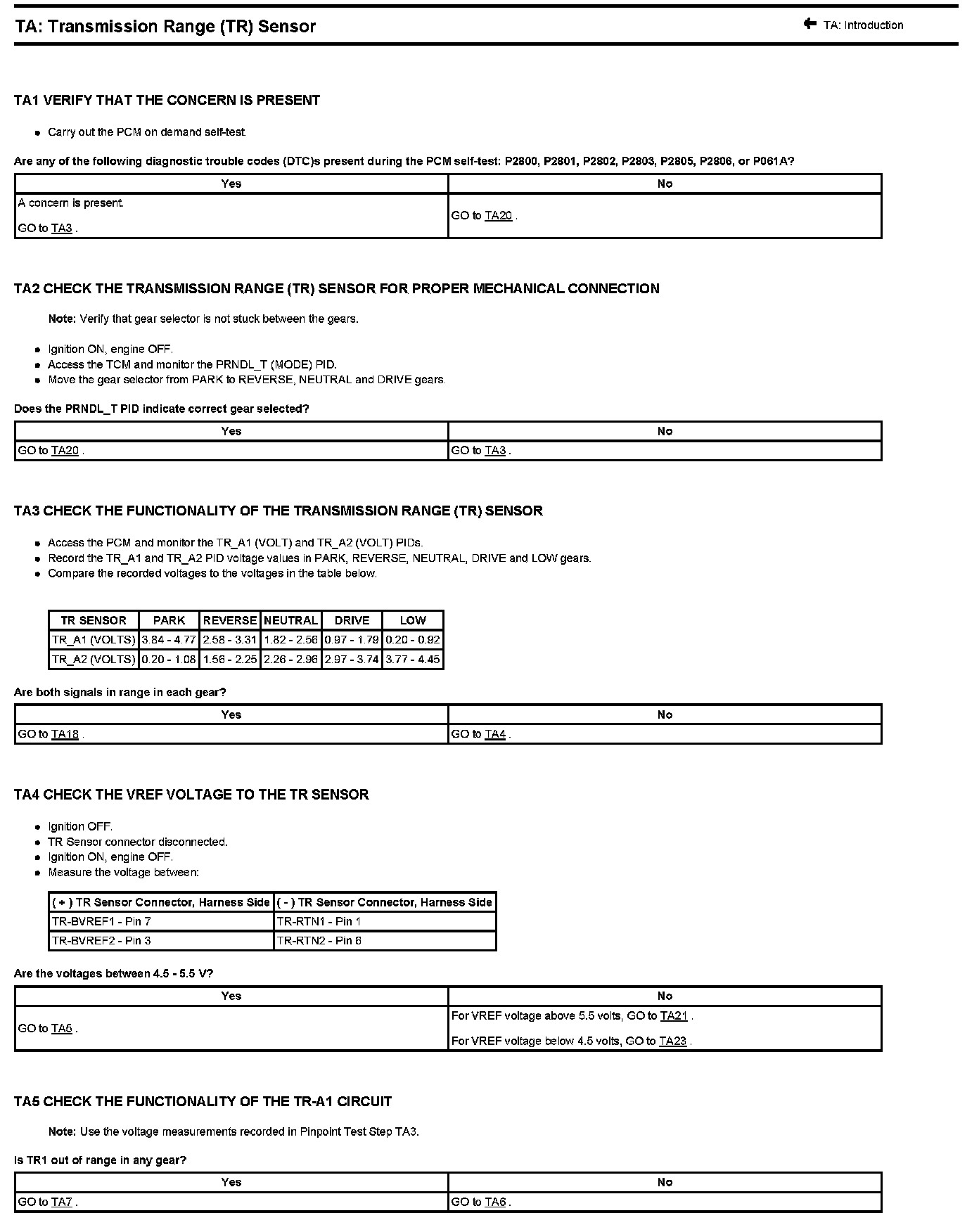

TA: TRANSMISSION RANGE (TR) SENSOR

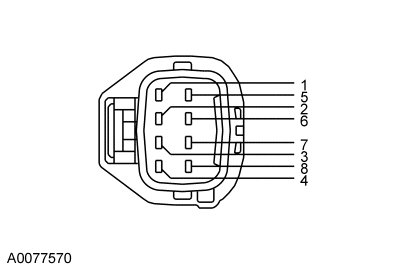

Transmission Range (TR) Sensor Connector

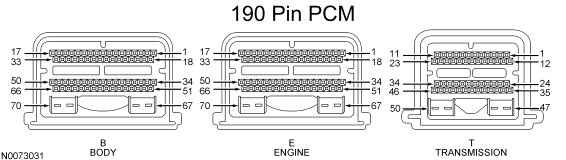

Powertrain Control Module (PCM) Connector
