Discharge Air Temperature Sensor / Switch: Service and Repair

Air Conditioning (A/C) Evaporator Discharge Air Temperature Sensor









Removal and Installation

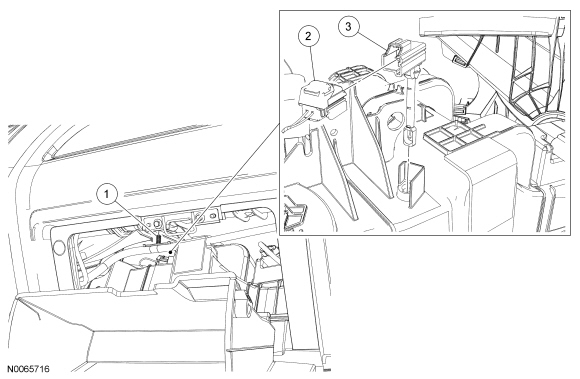

1. Lower the glove compartment.

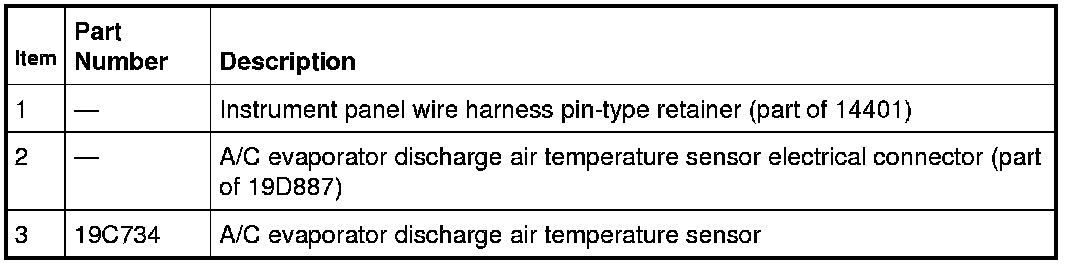

2. Detach the instrument panel wire harness pin-type retainer and position the wire harness away from the evaporator discharge air temperature sensor.

3. Disconnect the A/C evaporator discharge air temperature sensor electrical connector.

4. Gently pry upward and remove the A/C evaporator discharge air temperature sensor.

5. To install, reverse the removal procedure.
