Blower Motor Switch: Service and Repair

Blower Motor Speed Control

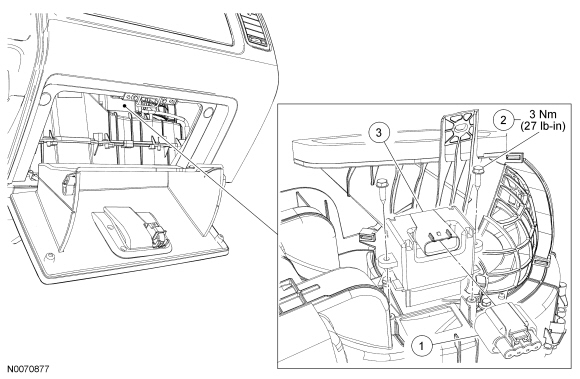

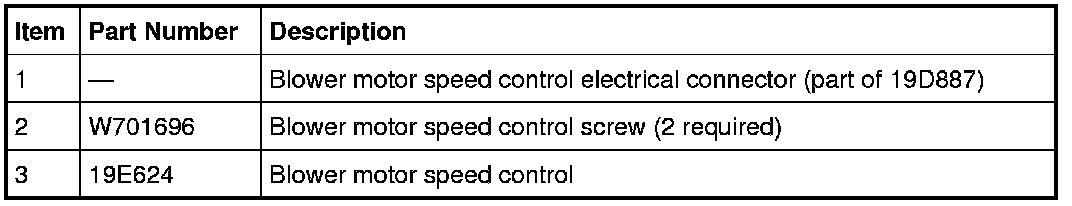

Removal and Installation

1. Lower the glove compartment.

2. Disconnect the blower motor speed control electrical connector.

3. Remove the 2 blower motor speed control screws.
- To install, tighten to 3 Nm (27 lb-in).


4. Remove the blower motor speed control.

5. To install, reverse the removal procedure.
