Engine Specifications

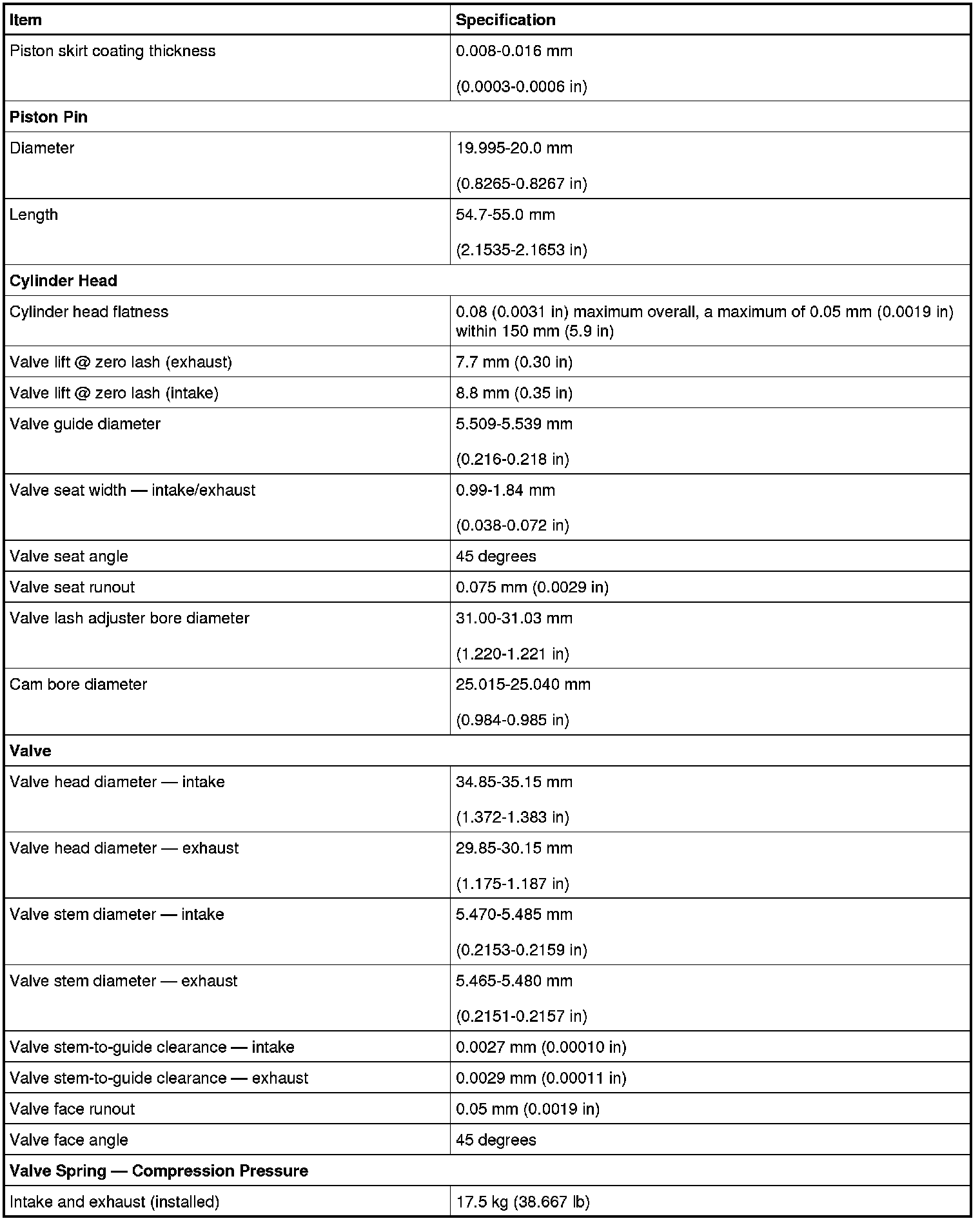

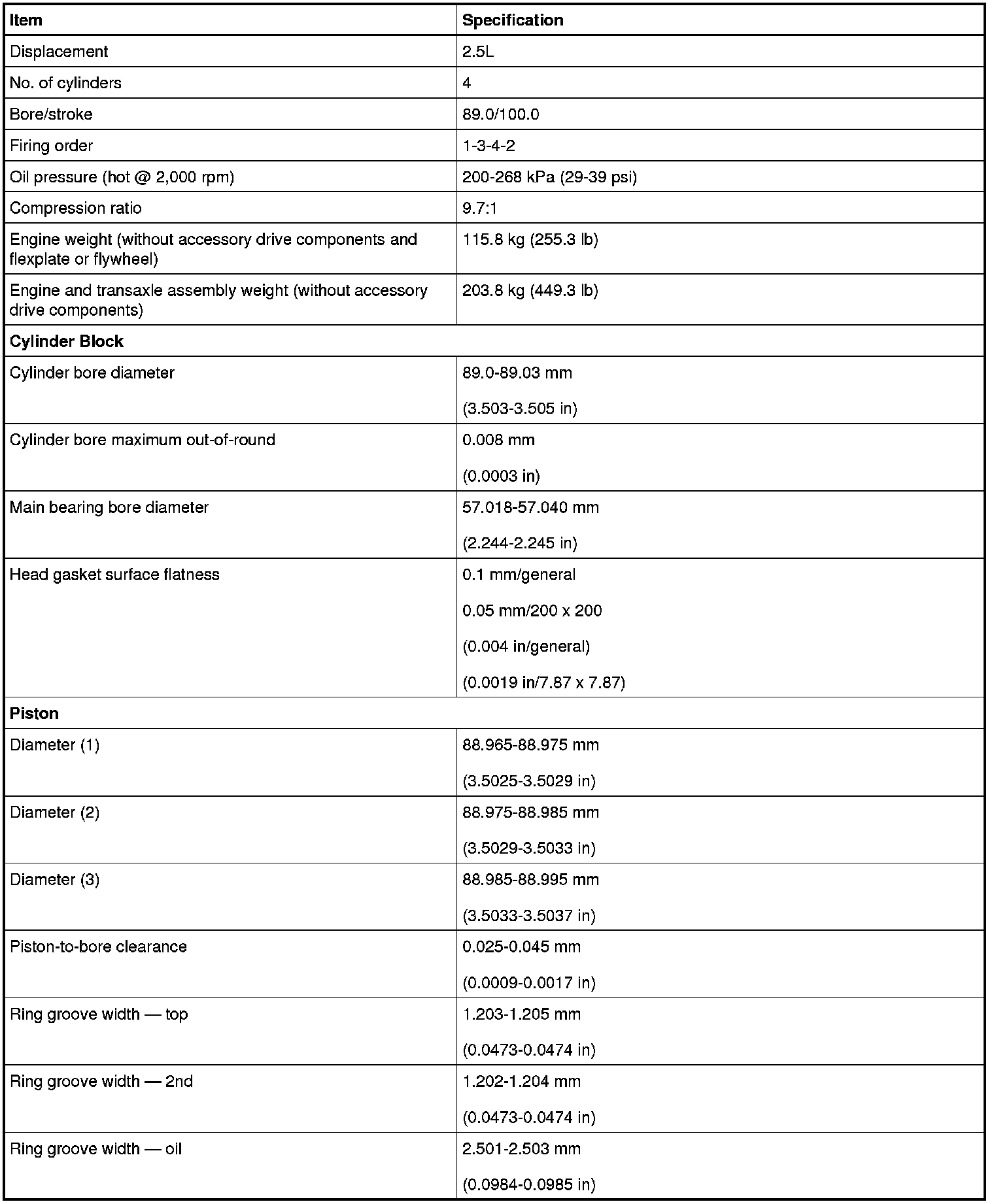

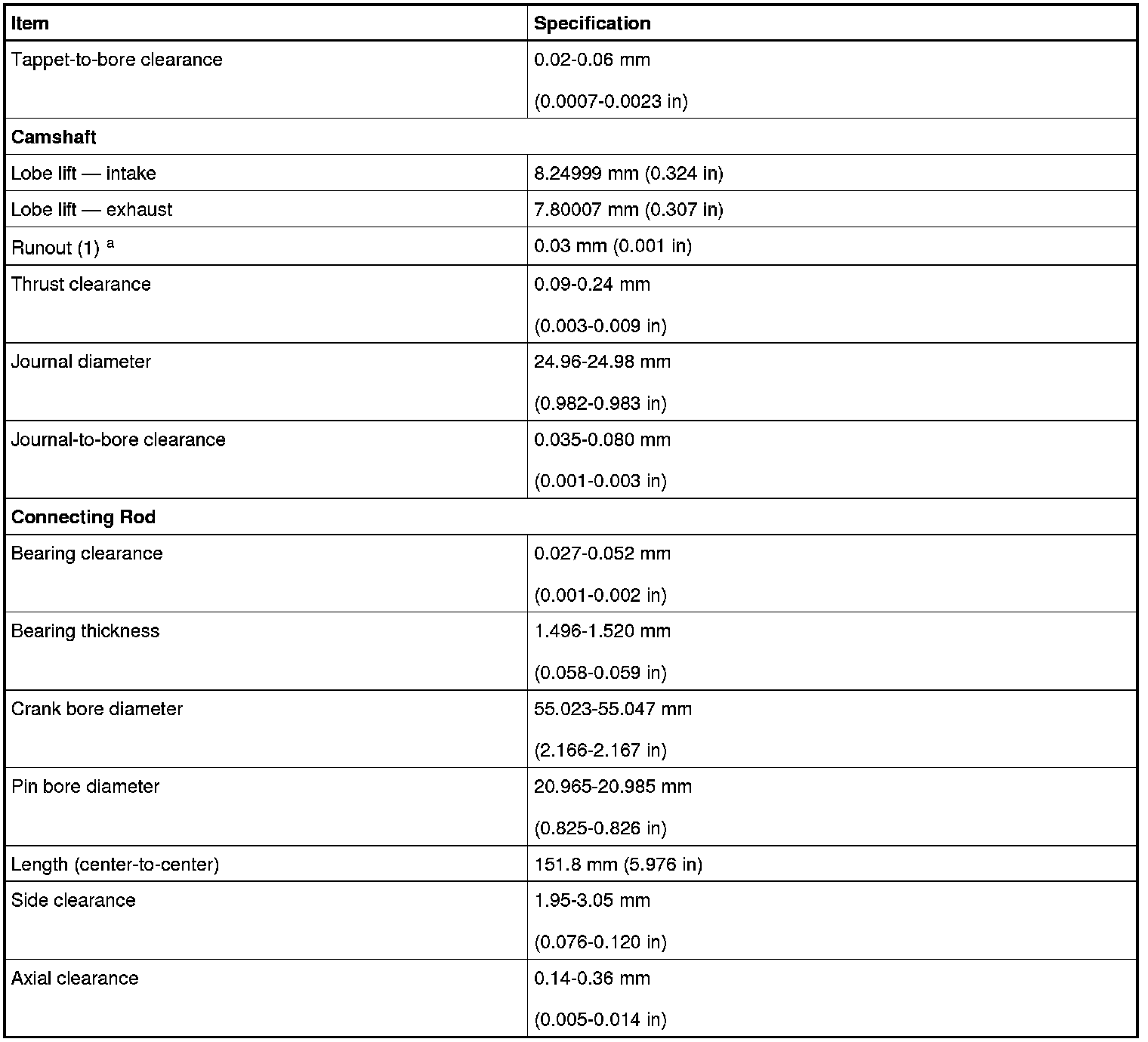

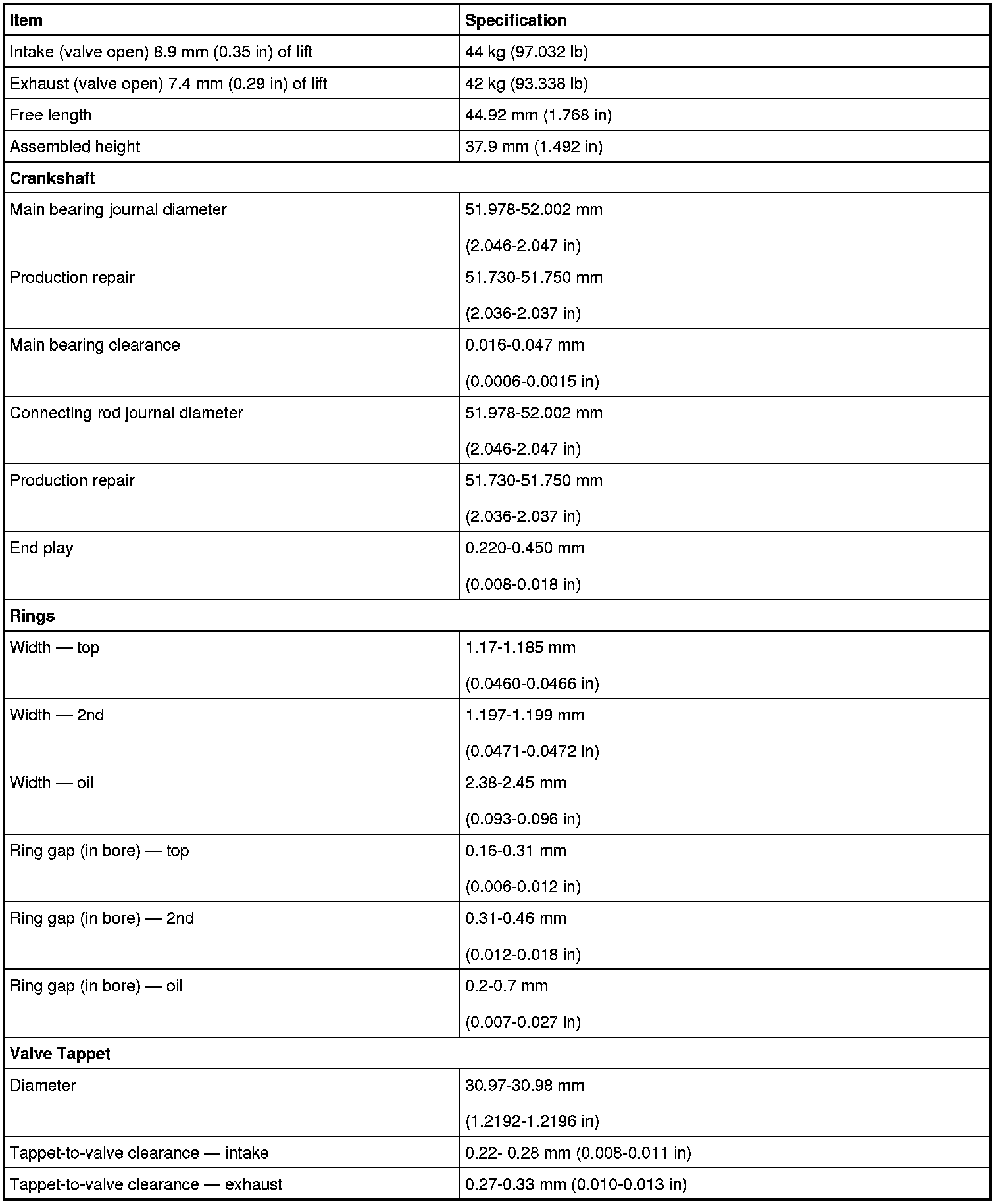

General Specifications

a No. 3 Journal - Supported by No. 1 and No. 5 journals.

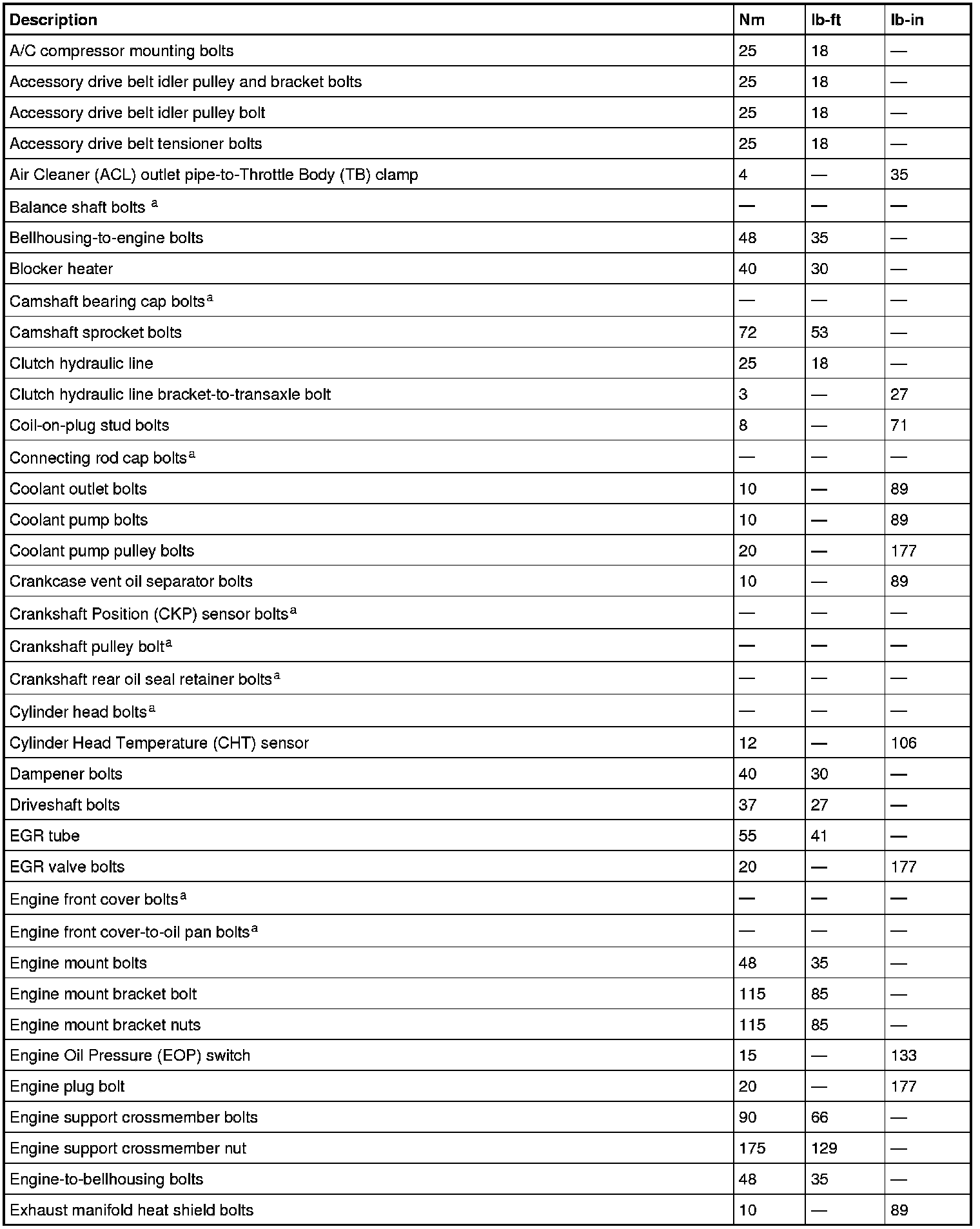

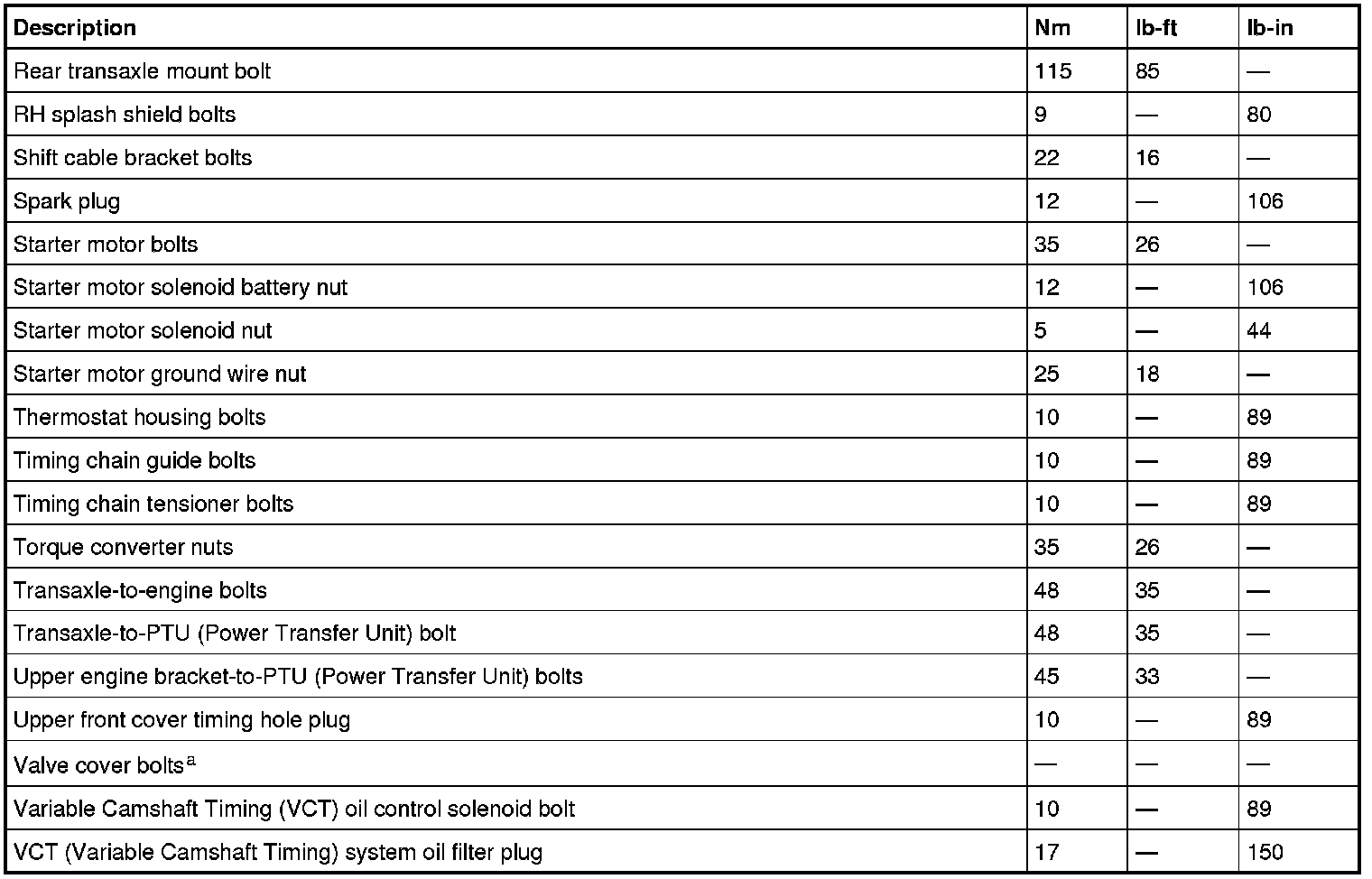

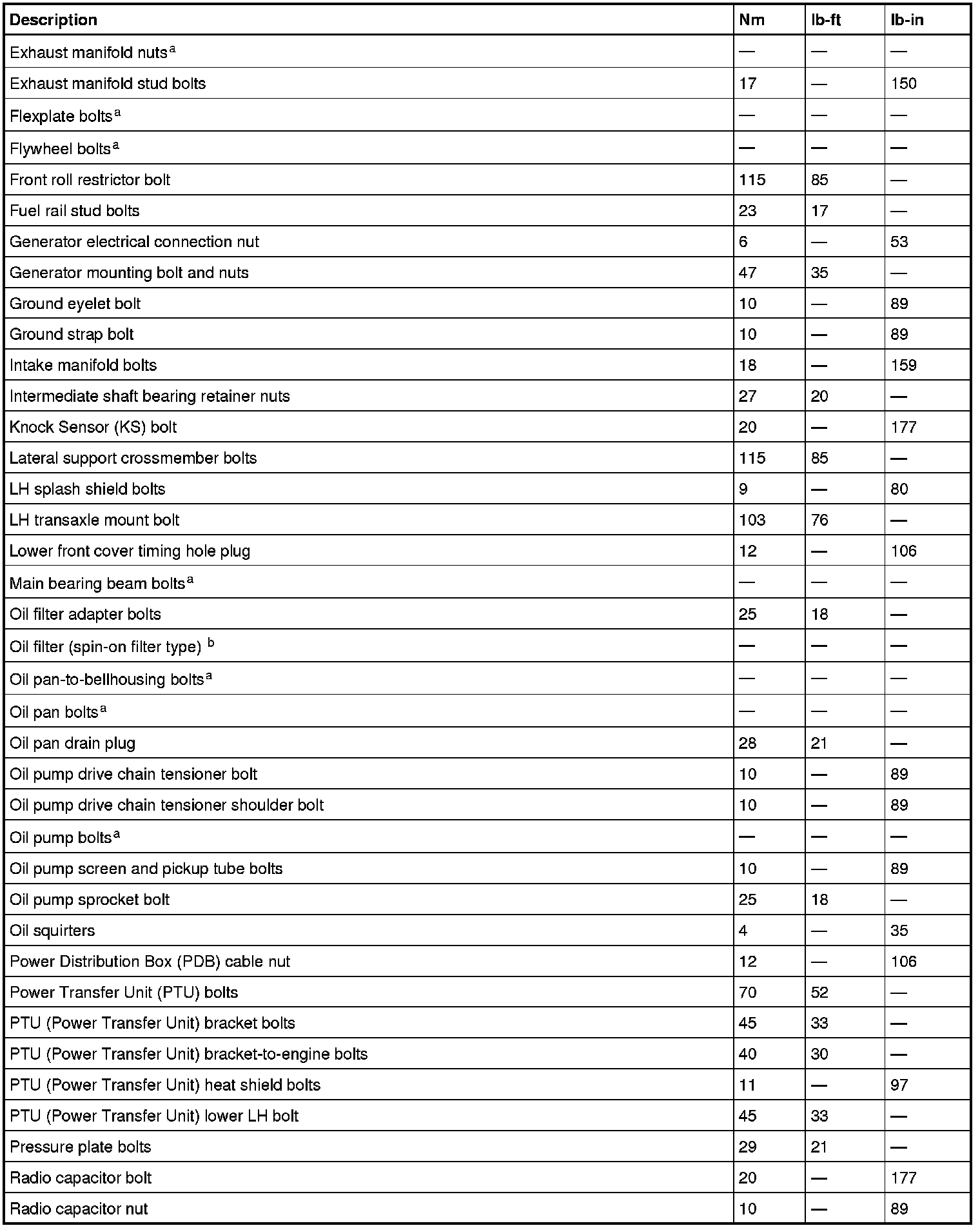

Torque Specifications

a Refer to the procedure for this specification.

b Lubricate the spin-on oil filter gasket with clean engine oil. Tighten the oil filter three-fourths turn after the oil filter gasket makes contact with the oil filter adapter.
