Driver Air Bag Module: Removal
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Always carry or place a live air bag module with the air bag and deployment door/trim cover/tear seam pointed away from the body. Do not set a live air bag module down with the deployment door/trim cover/tear seam face down. Failure to follow these instructions may result in serious personal injury in the event of an accidental deployment.
WARNING:
Never probe the electrical connectors on air bag, safety canopy or side air curtain modules. Failure to follow this instruction may result in the accidental deployment of these modules, which increases the risk of serious personal injury or death.
NOTE:
The air bag warning indicator illuminates when the correct Restraints Control Module (RCM) fuse is removed and the ignition is ON.
NOTE:
The Supplemental Restraint System (SRS) must be fully operational and free of faults before releasing the vehicle to the customer.
- Depower the SRS. For additional information, refer to Supplemental Restraint System (SRS) Depowering and Repowering in the General Procedures portion of this section.

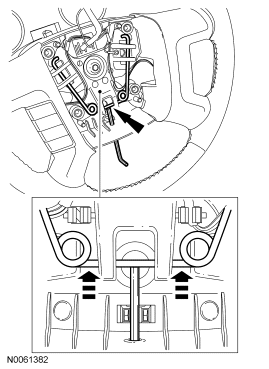

- Using a 3-mm Allen wrench or a suitable tool, place it in the driver air bag module release hole on the underside of the steering wheel.
- Position the 3-mm Allen wrench or suitable tool against the wire clip and push inward disengaging the wire clip from the 3 driver air bag module hooks.
- Disconnect the horn and 2 driver air bag module electrical connectors and remove the driver air bag module.
NOTE:
During driver air bag module removal, make sure all 3 driver air bag module hooks are released from the steering wheel wire clip. Failure to do so may cause damage to the driver air bag module and/or the steering wheel.
