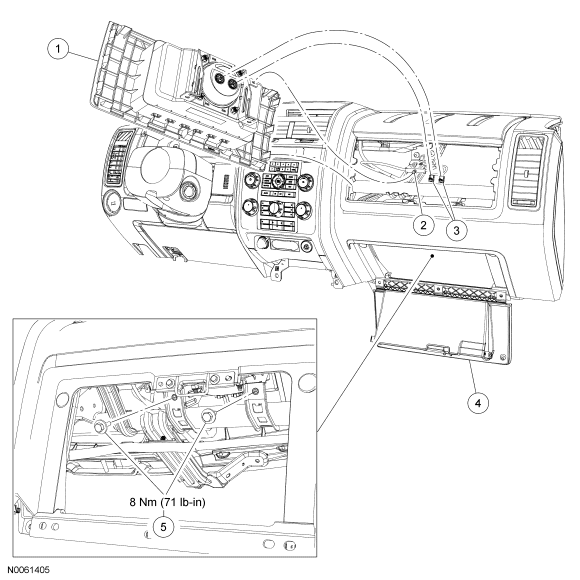

Passenger Air Bag Module: Notes
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
044A74 |
Passenger air bag module |
| 2 |
- |
Wire harness routing clip (part of 14A200) |
| 3 |
- |
Passenger air bag module electrical connectors (2 required) (part of 14A200) |
| 4 |
060T10 |
Glove compartment door |
| 5 |
W505422 |
Passenger air bag module bolts (2 required) |
