Selector Lever Cable Adjustment

Place the selector lever in the D position.

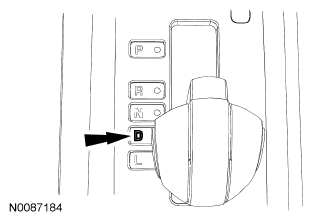

Fig 1: Locating Selector Lever In D Position
Courtesy of FORD MOTOR CO.
Disconnect the selector lever cable end from the manual control lever.

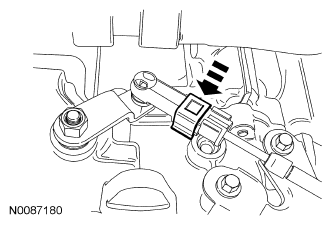

Fig 2: Disconnecting Selector Lever Cable End
Courtesy of FORD MOTOR CO.
Place the manual control lever in the D position.
1. Rotate the manual control lever counterclockwise to the PARK position.
2. Rotate the manual control lever clockwise 3 detents to the D position.

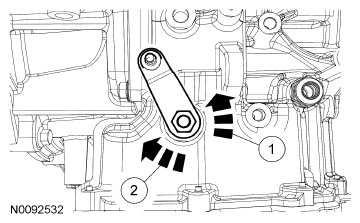

  Fig 3: Rotating Manual Control Lever
  Courtesy of FORD MOTOR CO.
Release the selector lever cable adjuster lock.
1. Pull out on the adjuster lock tabs.
2. Slide the lock over to unlock the selector lever cable.

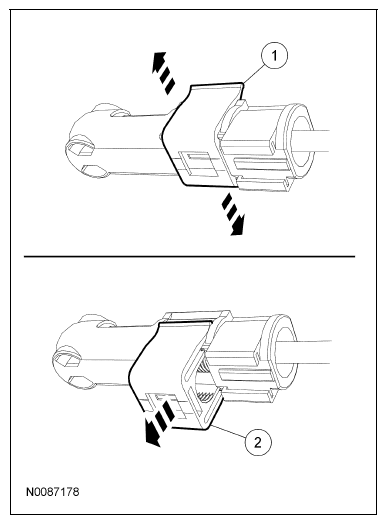

  Fig 4: Pulling Out On Adjuster Lock Tabs
  Courtesy of FORD MOTOR CO.
Align the selector lever cable end to the manual control lever ball stud and install it with the adjuster unlocked.

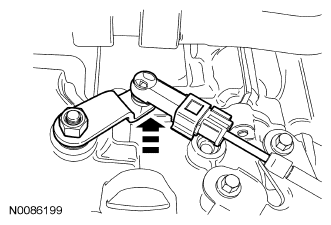

Fig 5: Locating Selector Lever Cable End
Courtesy of FORD MOTOR CO.
Slide the adjuster tab in place to lock the selector lever cable.

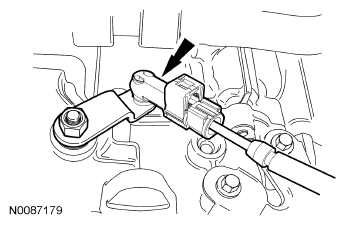

Fig 6: Sliding Adjuster Tab
Courtesy of FORD MOTOR CO.
