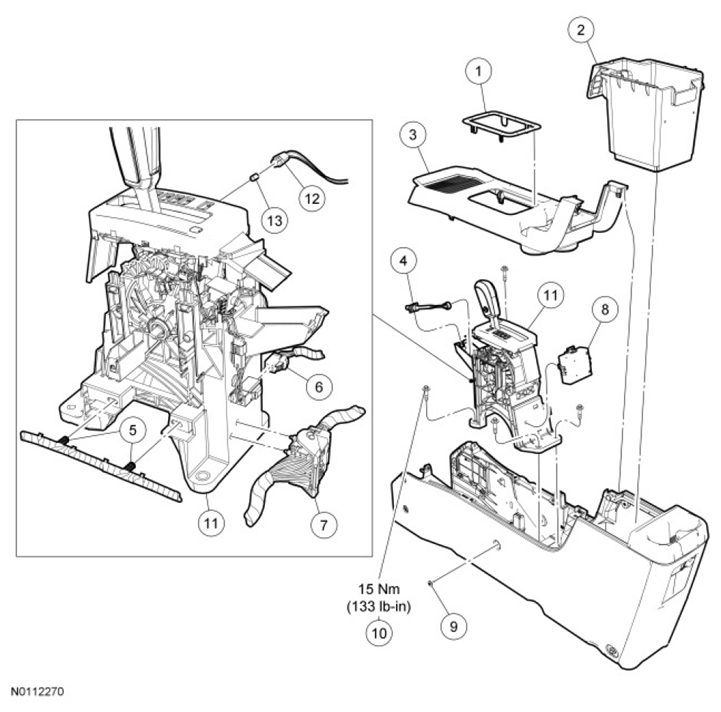

| 1 |
78061A16 |
Trim ring |
| 2 |
78044H06 |
Center console compartment tray |
| 3 |
78045A76 |
Center console finish panel |
| 4 |
7E395 |
Selector lever cable |
| 5 |
13A506 |
Wiring harness retainers |
| 6 |
14489 |
Selector lever electrical connector |
| 7 |
14A459 |
Vehicle wiring harness connector |
| 8 |
070704 |
All-Wheel Drive (AWD) module (AWD vehicles only) |
| 9 |
W705796 |
Center console screw (2 required) |
| 10 |
W713196 |
Selector lever assembly bolt (4 required) |
| 11 |
7K004 |
Selector lever assembly |
| 12 |
- |
Selector lever bezel light socket |
| 13 |
13466 |
Selector lever bezel light bulb |
