Side Air Bag Module: Notes
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

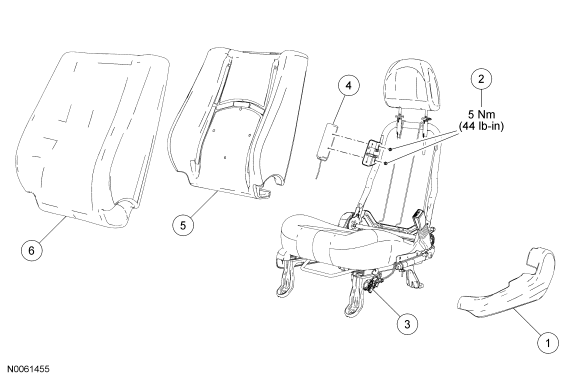

Passenger shown, driver similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 62187B | Inboard seat cushion side shield |
| 2 | W520111 | Side air bag module nuts (2 required) |
| 3 | - | Side air bag module electrical connector (part of 611D11/611D10) |
| 4 | 611D11 LH/ 611D10 RH | Side air bag module (passenger side/ driver side) |
| 5 | 64810 | Seat backrest foam pad |
| 6 | 64416 | Seat backrest trim cover |
