Instrument Panel - Exploded View: Navigator

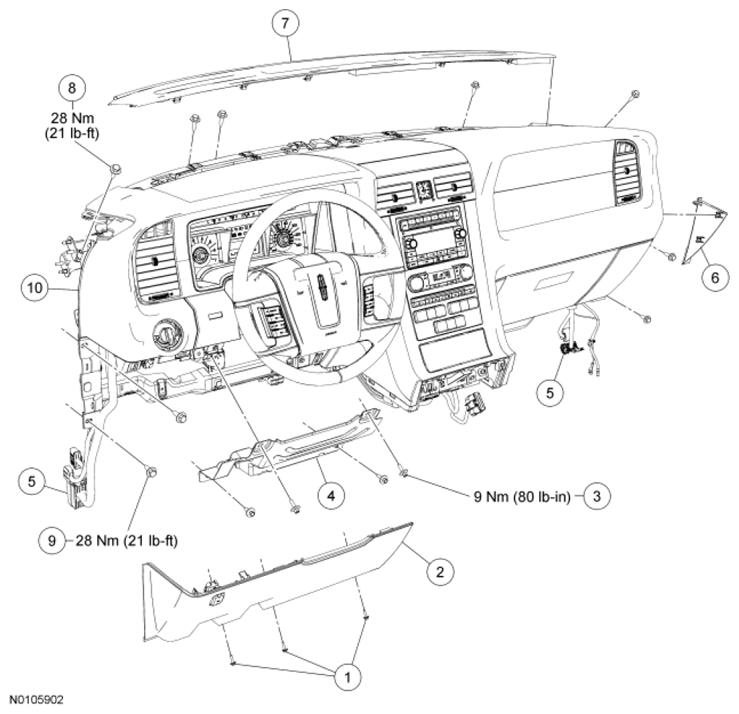

Fig 1: Exploded View Of Instrument Panel With Torque Specification - Navigator
G06466315Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W707628 Steering column opening trim panel screws (3 required)
2 04459 Steering column opening trim panel
3 W710879 Steering column reinforcement panel bolt (4 required)
4 017A28 Steering column reinforcement panel
5 14401 Instrument panel electrical wiring harness connectors
6 04480 Instrument panel side finish panel
7 044E82 Instrument panel defroster grille
8 W706246 Instrument panel cowl bolt (5 required)
9 W706246 Instrument panel bolt (4 required)
10 04320 Instrument panel
  1. For additional information, refer to the appropriate procedures in the service information.
