Cooling Module: Notes

SPECIAL TOOLS CHART

Disconnect Tool, Transmission Cooler Line
307-569

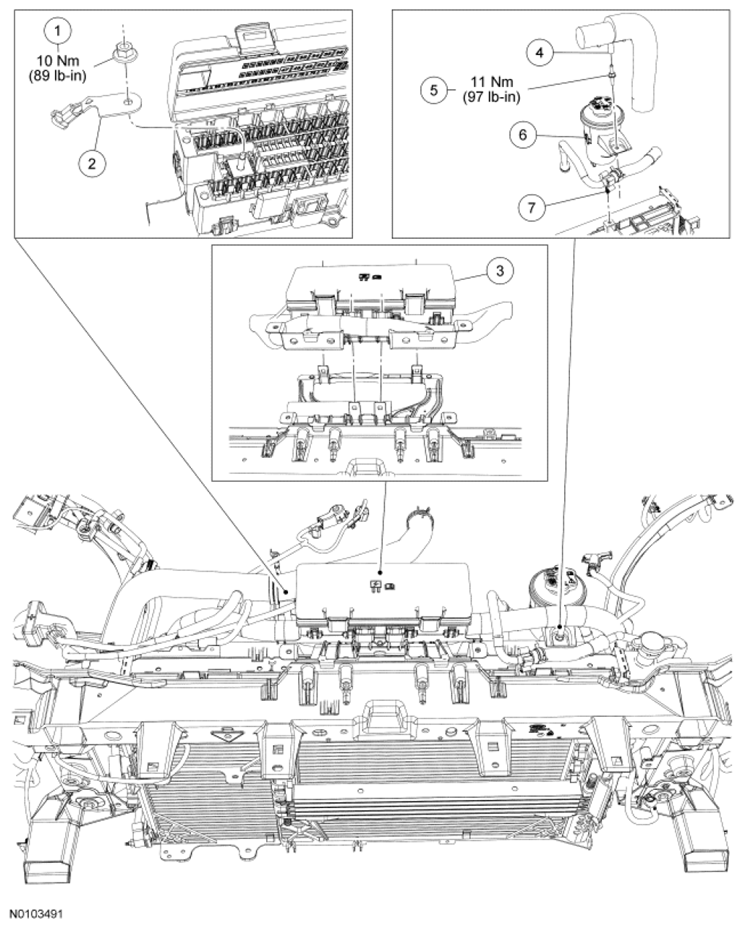

Fig 1: Identifying Battery Junction Box, Battery Power Cable Terminal, Battery Power Cable Nut And Wiring Harness Retainer

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W705764	Battery power cable nut
2	-	Battery power cable terminal (part of 12A581)
3	-	Battery Junction Box (BJB) (part of 12A581)
4	-	Wiring harness retainer (part of 12A581)
5	W710897	Power steering fluid reservoir stud bolt
6	3E764	Power steering fluid reservoir
7	-	Power steering fluid cooler hose retainer (part of 3A713)

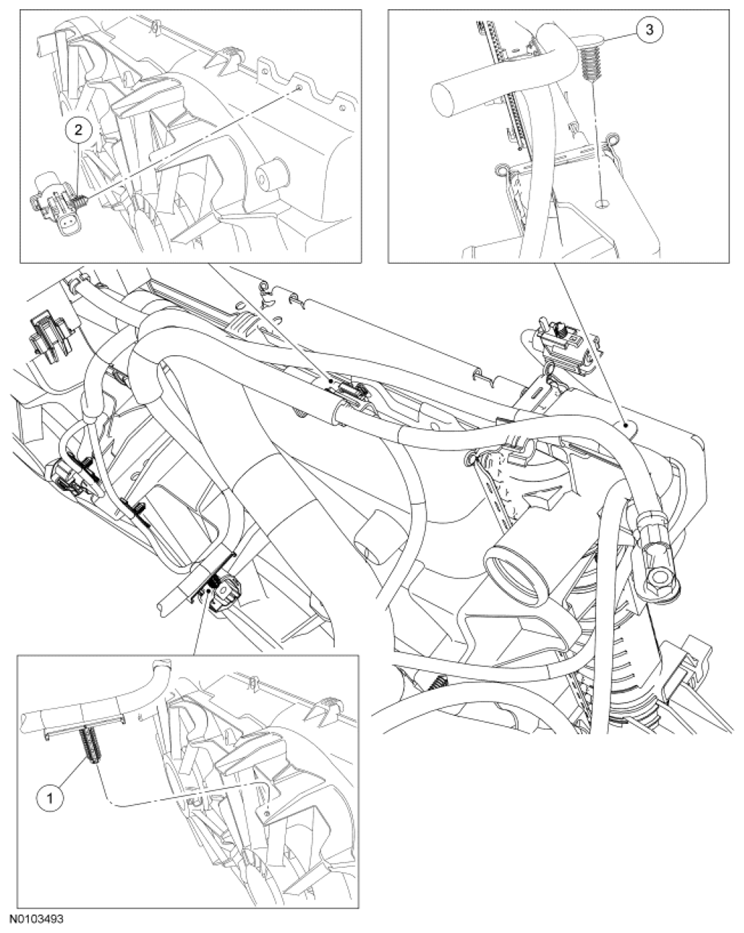

Fig 2: Identifying Cooling Module, Wiring Harness Retainer And Electrical Connector Retainer

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Wiring harness retainer (part of 14305)
2	-	Electrical connector retainer (part of 12A581)
3	-	Wiring harness retainer (part of 12A581)

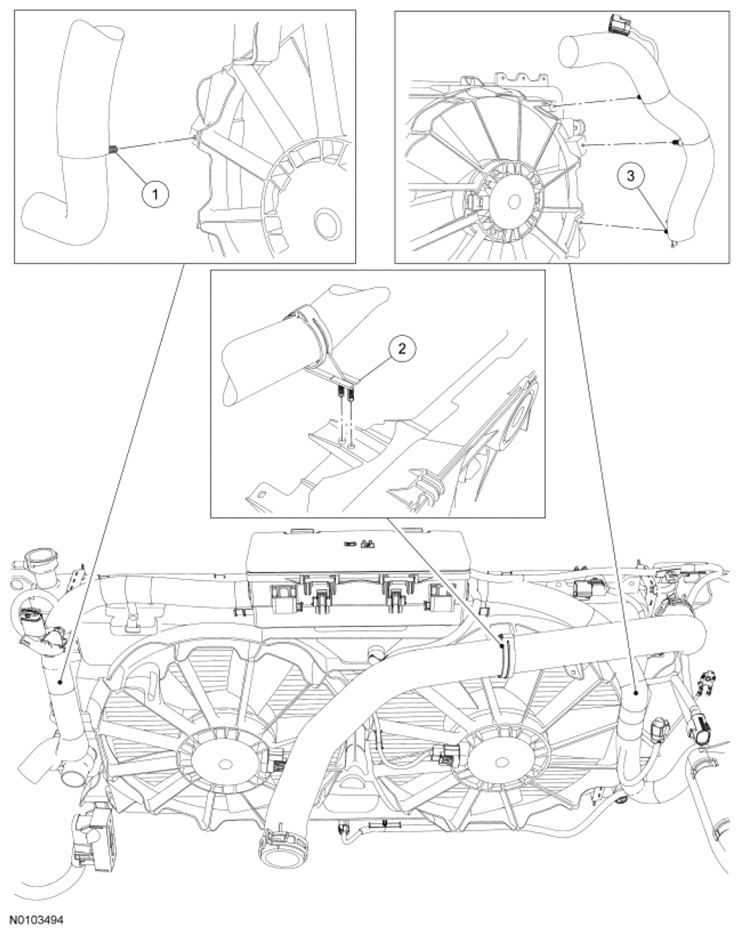

Fig 3: Identifying Cooling Module, Wiring Harness Retainer And Upper Radiator Hose Retainer

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Wiring harness retainer (part of 12A581)
2	-	Upper radiator hose retainer (part of 8B274)
3	-	Wiring harness retainer (part of 12A581) (3 required)

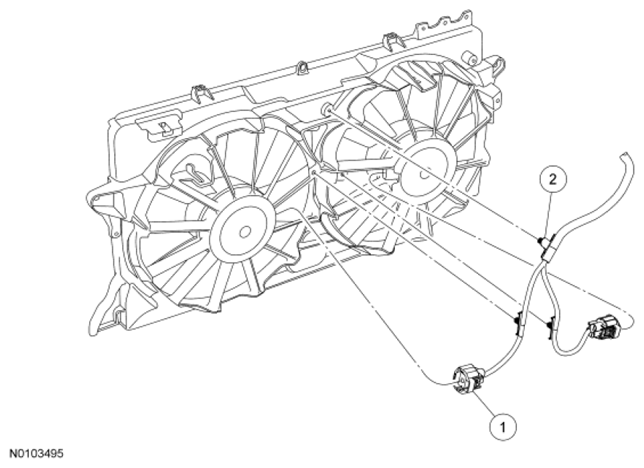

Fig 4: Identifying Cooling Fan Electrical Connector And Cooling Fan Wiring Harness Retainer

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Cooling fan electrical connector (part of 12A581) (2 required)
2	-	Cooling fan wiring harness retainer (part of 12A581) (3 required)

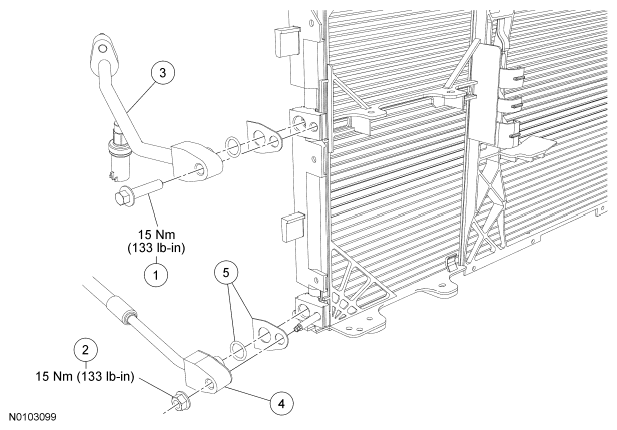

Fig 5: Identifying Condenser Inlet Fitting Bolt, Condenser Outlet Fitting Nut, O-Ring Seal And Gasket Seal Kit

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W500110	Condenser inlet fitting bolt
2	W520413	Condenser outlet fitting nut
3	19E558	Condenser inlet jumper line fitting
4	-	Condenser outlet fitting (part of 19A834)
5	19B596	O-ring seal and gasket seal kit (2 required)

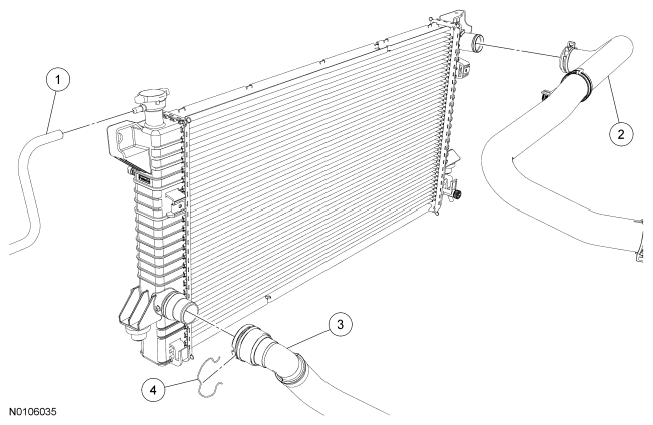

Fig 6: Identifying Radiator Overflow Hose, Upper/Lower Radiator Hose And Lower Radiator Hose Spring Clip

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	8N029	Radiator overflow hose
2	8B274	Upper radiator hose
3	8B273	Lower radiator hose
4	8B365	Lower radiator hose spring clip

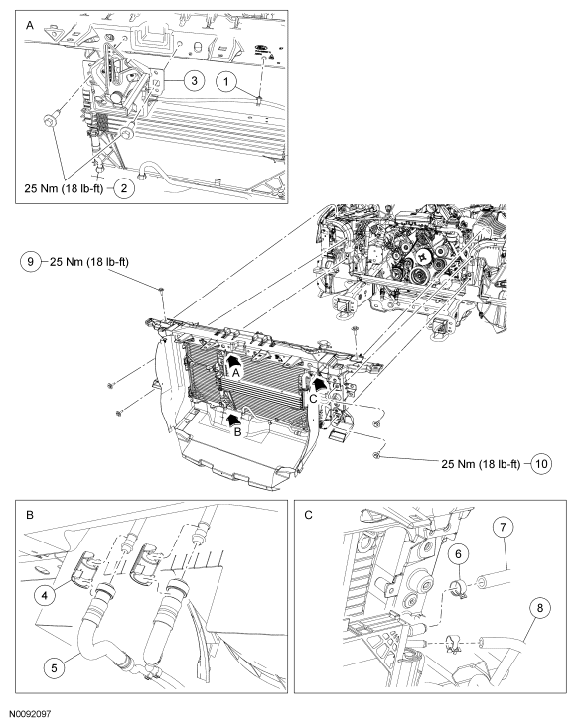

Fig 7: Cooling Module Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	16B975	Hood latch assembly cable retainer
2	W711848	Hood latch assembly bolts (2 required)
3	6100	Hood latch assembly
4	7J801	Transmission fluid cooler tube secondary latch (2 required)
5	7H420	Transmission fluid cooler tube (2 required)
6	-	Power steering fluid cooler hose clamp (2 required)
7	3A713	Power steering gear-to-fluid cooler return hose
8	3B726	Power steering fluid cooler supply hose
9	W701835	Cooling module upper bolt (2 required)
10	W701835	Cooling module front bolt (4 required)
