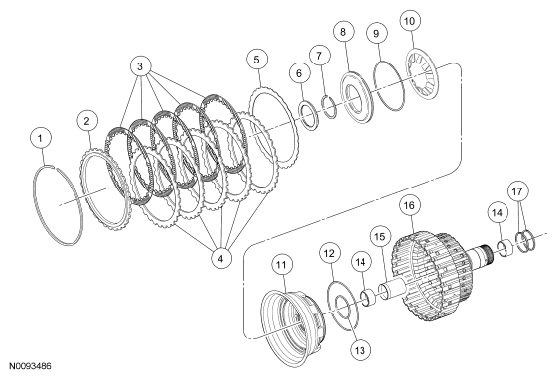

| 1 |
7D483 |
Direct clutch pressure plate retaining ring |
| 2 |
7B066 |
Direct clutch pressure plate (thickness model dependent) |
| 3 |
7B164 |
Direct clutch internal splined friction plates (quantity model dependent) |
| 4 |
7B442 |
Direct clutch external splined steel plates (quantity model dependent) |
| 5 |
- |
Direct clutch cushion plate (wave spring) |
| 6 |
7C096 |
Bearing (T5) |
| 7 |
7A577 |
Piston retaining ring |
| 8 |
7A262 |
Direct clutch balance piston |
| 9 |
7A548 |
Direct clutch balance piston seal |
| 10 |
7B488 |
Return spring |
| 11 |
7A262 |
Direct clutch apply piston |
| 12 |
7A548 |
Direct clutch apply piston outer seal |
| 13 |
7C099 |
Direct clutch apply piston inner seal |
| 14 |
- |
Direct clutch bushing hubs (part of 7F283) (2 required) |
| 15 |
- |
Gear shaft tube sleeve (part of 7F283) |
| 16 |
7F283 |
Direct clutch cylinder |
| 17 |
7D020 |
Seal shell cylinders |
