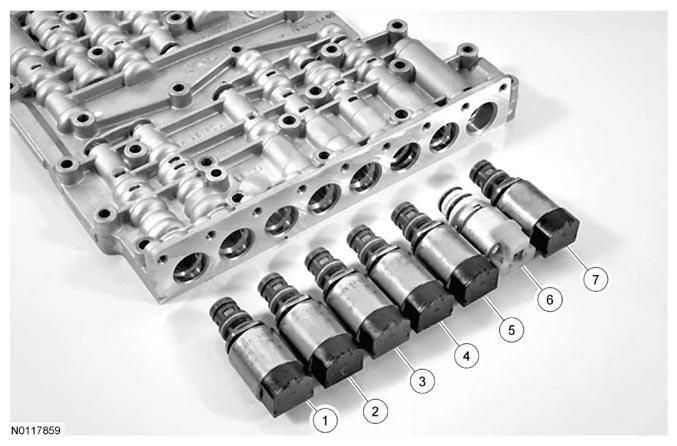

| 1 |
7G383 |
Shift Solenoid A (SSA) Forward (1, 2, 3, 4) clutch, normally low Variable Force Solenoid (VFS). |
| 2 |
7G383 |
Shift Solenoid B (SSB) Direct (3, 5, R) clutch, normally high VFS. |
| 3 |
7G383 |
Shift Solenoid C (SSC), Intermediate (2, 6) clutch, normally low VFS. |
| 4 |
7G383 |
Line Pressure Control (LPC) normally high VFS. |
| 5 |
7G383 |
Shift Solenoid D (SSD), low/reverse/overdrive clutch, normally high VFS. |
| 6 |
7G484 |
Shift Solenoid E (SSE), normally off ON/OFF solenoid. |
| 7 |
7G383 |
Torque Converter Clutch (TCC) normally low VFS. |
