Vehicle Dynamics Module (VDM): Notes

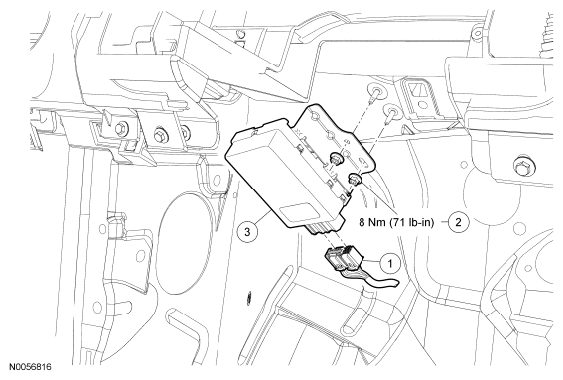

Fig 1: Vehicle Dynamics Module Replacement Components With Torque Specifications
G06124974Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Vehicle Dynamics Module (VDM) electrical connector (part of 14489) (2 required)
2 W707142 VDM bracket nut (2 required)
3 3C142 VDM and bracket assembly
