Front Display Interface Module (FDIM)

Front Display Interface Module (FDIM)

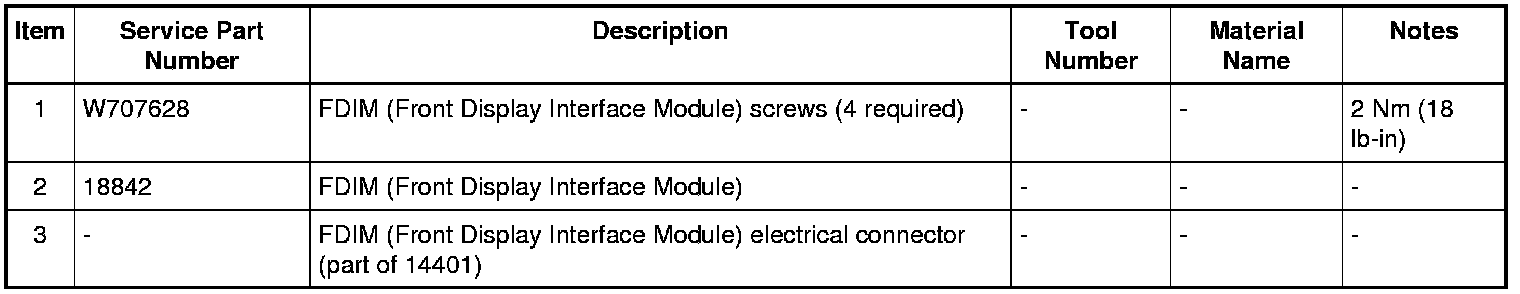

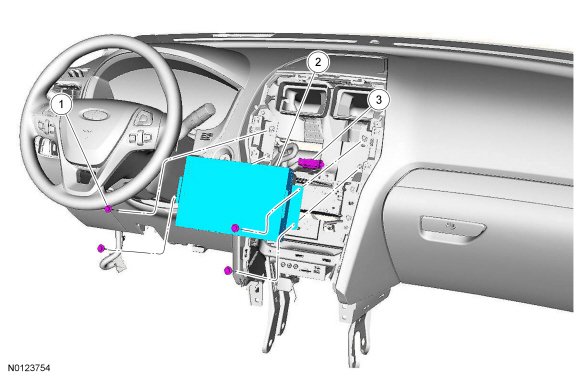

Exploded View










Removal

1. Remove the FCIM (Front Controls Interface Module). REFER to Front Controls Interface Module (FCIM).

2. Remove the 4 screws and the FDIM (Front Display Interface Module).
- To install, tighten to 2 Nm (18 lb-in).

1. Disconnect the electrical connector.

Installation

1. To install, reverse the removal procedure.
