Evaporative Emissions System

Evaporative Emission (EVAP) System Components - Exploded View

Exploded View

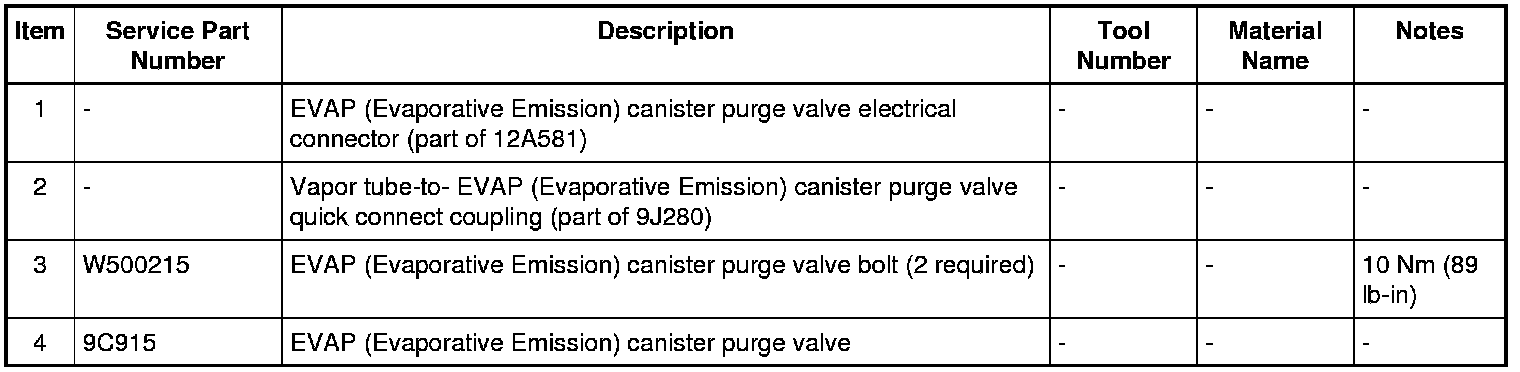

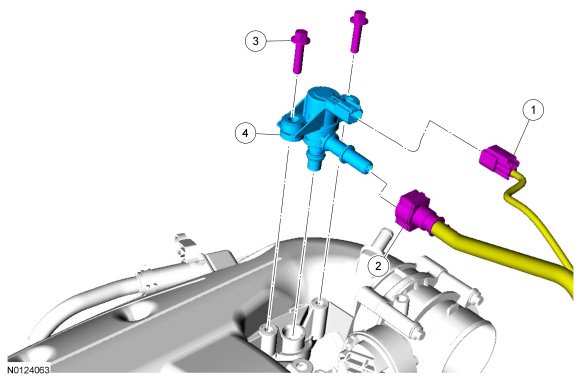

EVAP (Evaporative Emission) Canister Purge Valve

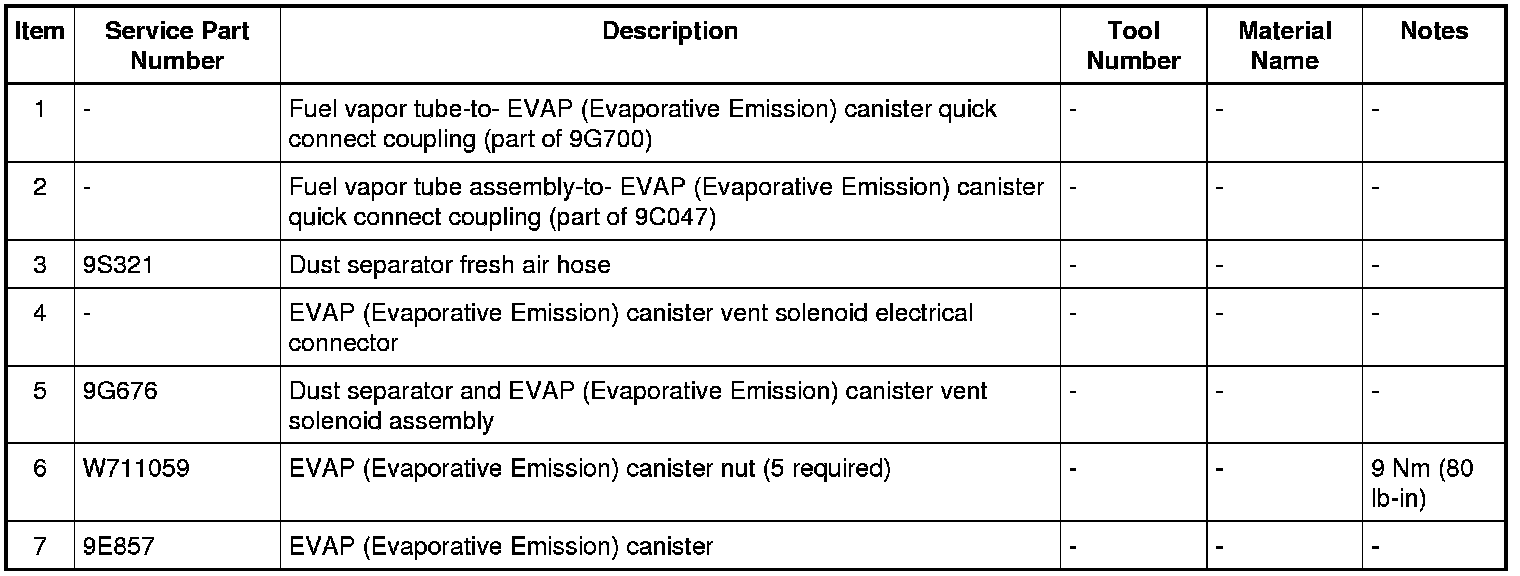

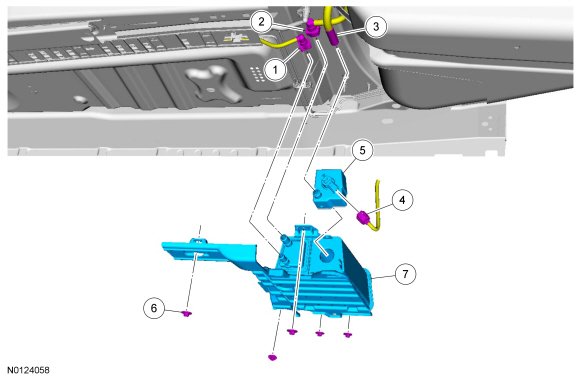

EVAP (Evaporative Emission) Canister, Dust Separator and Canister Vent Solenoid

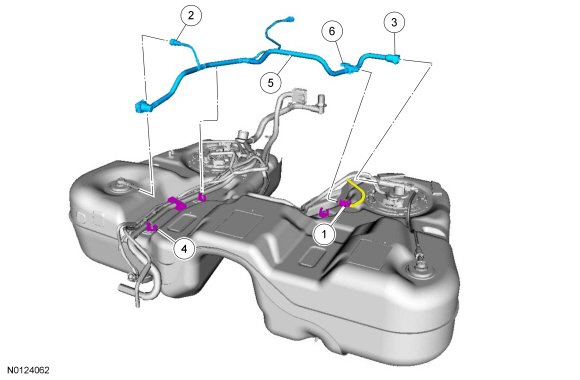

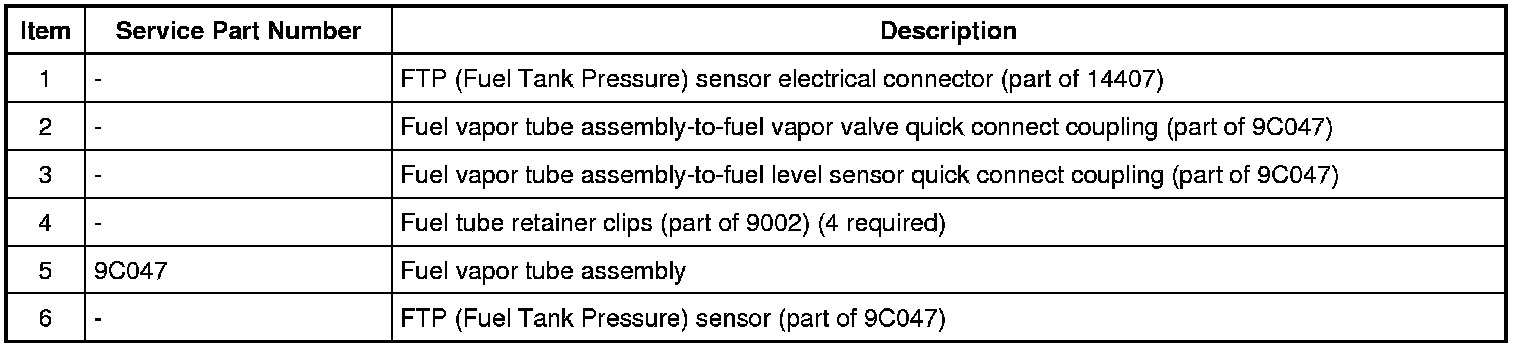

Fuel Vapor Tube Assembly
