Valve Spring Strength




Valve Spring Strength

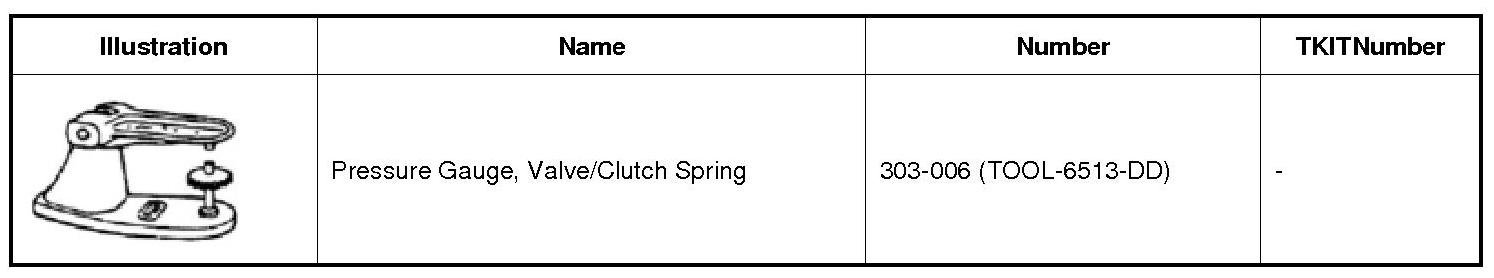

Special Tool(s)






General Procedure

NOTE: Refer to general specifications in Engine for the appropriate specification.

1. Use the Valve/Clutch Spring Pressure Gauge to check the valve spring for correct strength at the specified valve spring length.
