Climate Control - EMTC

Air Inlet Duct

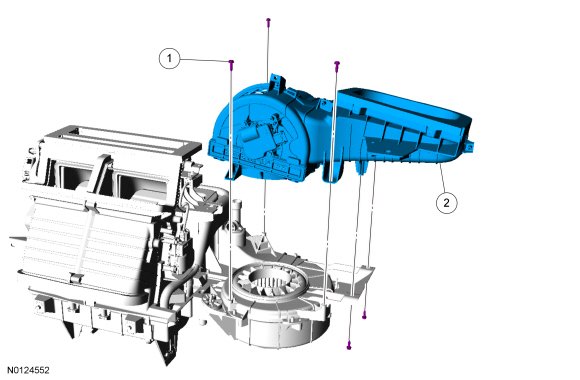

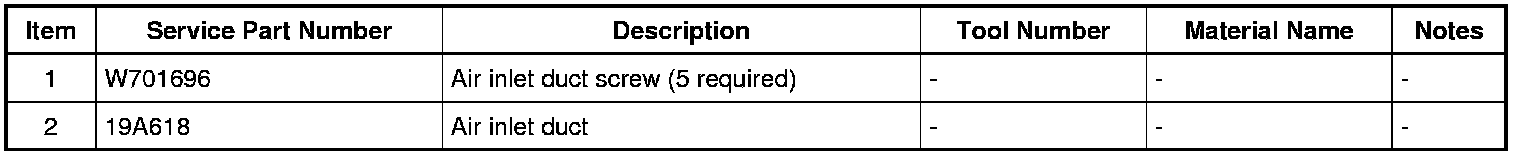

Exploded View










Removal

1. Remove the heater core and evaporator core housing. REFER to Heater Core And Evaporator Core Housing .

2. Remove the 5 air inlet duct screws.

3. Remove the air inlet duct.

Installation

1. Install the air inlet duct.

2. Install the 5 air inlet duct screws.

3. Install the heater core and evaporator core housing. REFER to Heater Core And Evaporator Core Housing .
