In-Vehicle Temperature Sensor




In-Vehicle Temperature Sensor

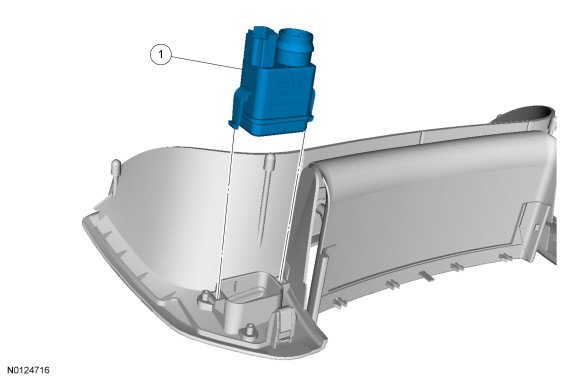

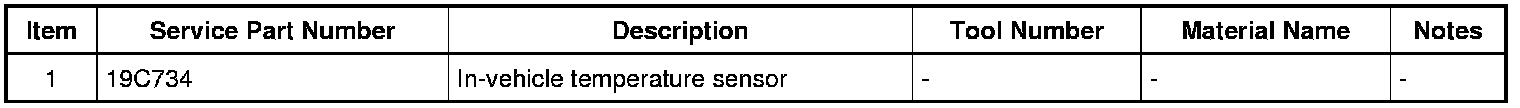

Exploded View










Removal

1. Remove the instrument cluster finish panel. REFER to Instrument Cluster Finish Panel .

2. Detach the in-vehicle temperature sensor from the instrument cluster finish panel and remove the in-vehicle temperature sensor.

Installation

1. Install and attach the in-vehicle temperature sensor to the instrument cluster finish panel.

2. Install the instrument cluster finish panel. REFER to Instrument Cluster Finish Panel .
