Module Communication Network: Notes

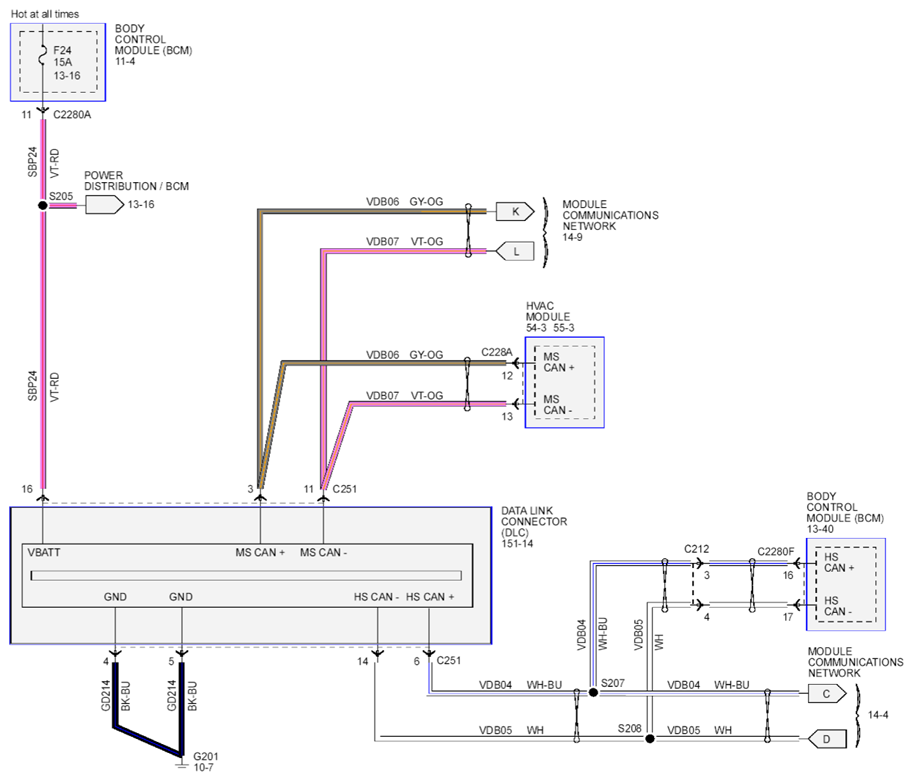

Fig 1: Module Communication Network Circuit Diagram

G07895331

Courtesy of FORD MOTOR CO.
