Component Location Views

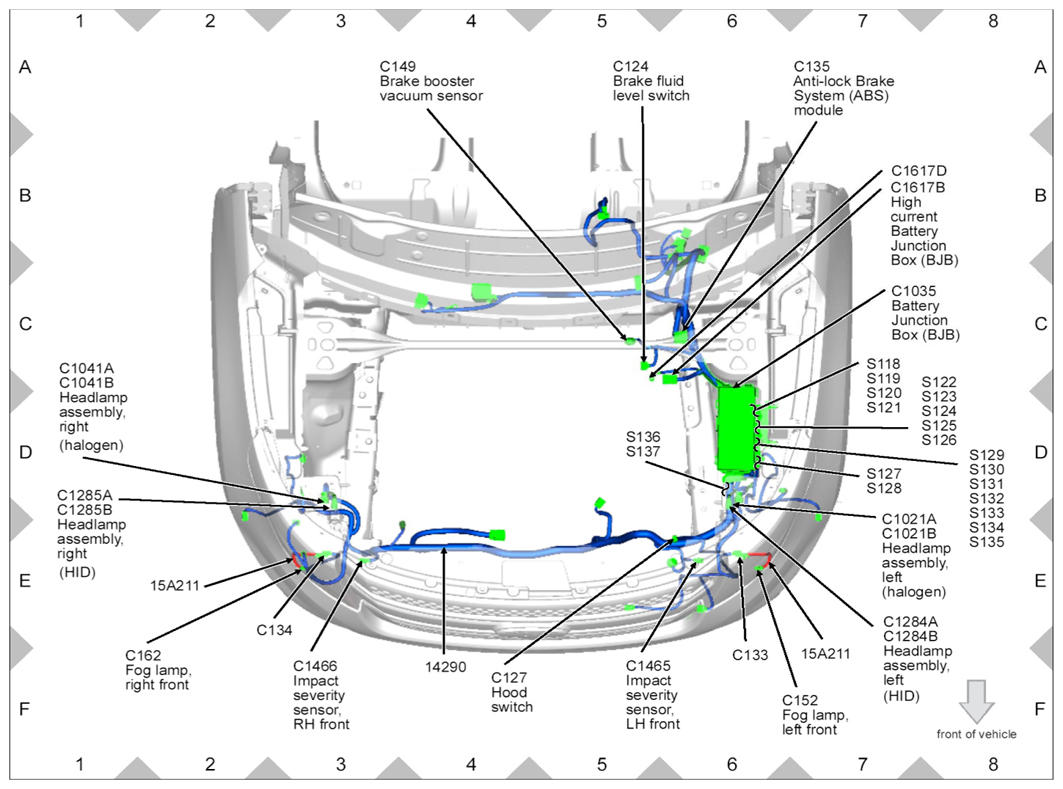

Fig 1: Engine Compartment Wiring Harness Connectors Location (1 Of 4)

G07895809

Courtesy of FORD MOTOR CO.

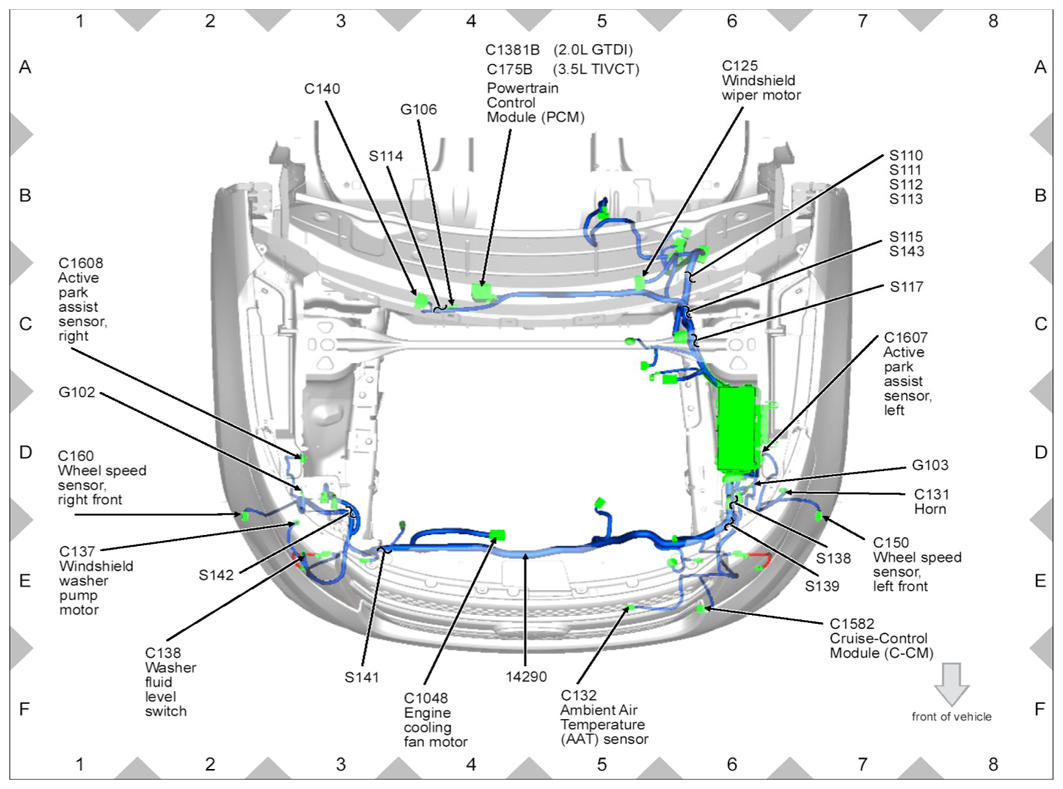

Fig 2: Engine Compartment Wiring Harness Connectors Location (2 Of 4)

G07895810

Courtesy of FORD MOTOR CO.

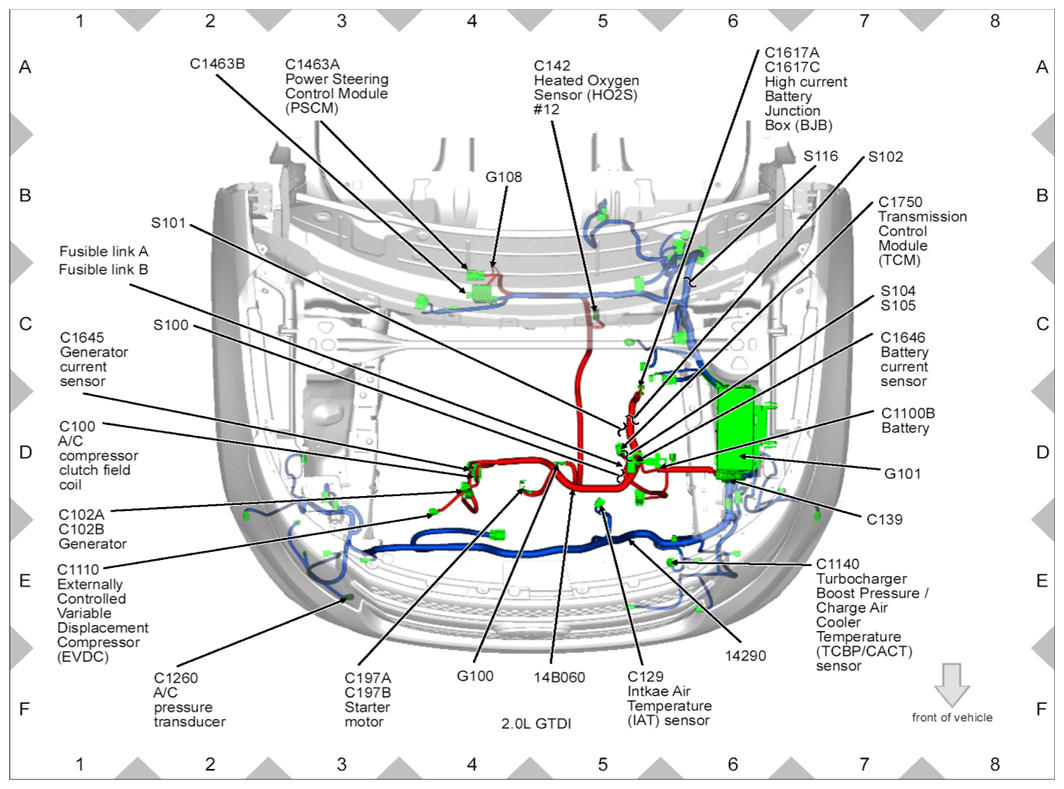

Fig 3: Engine Compartment Wiring Harness Connectors Location (3 Of 4)

G07895811

Courtesy of FORD MOTOR CO.

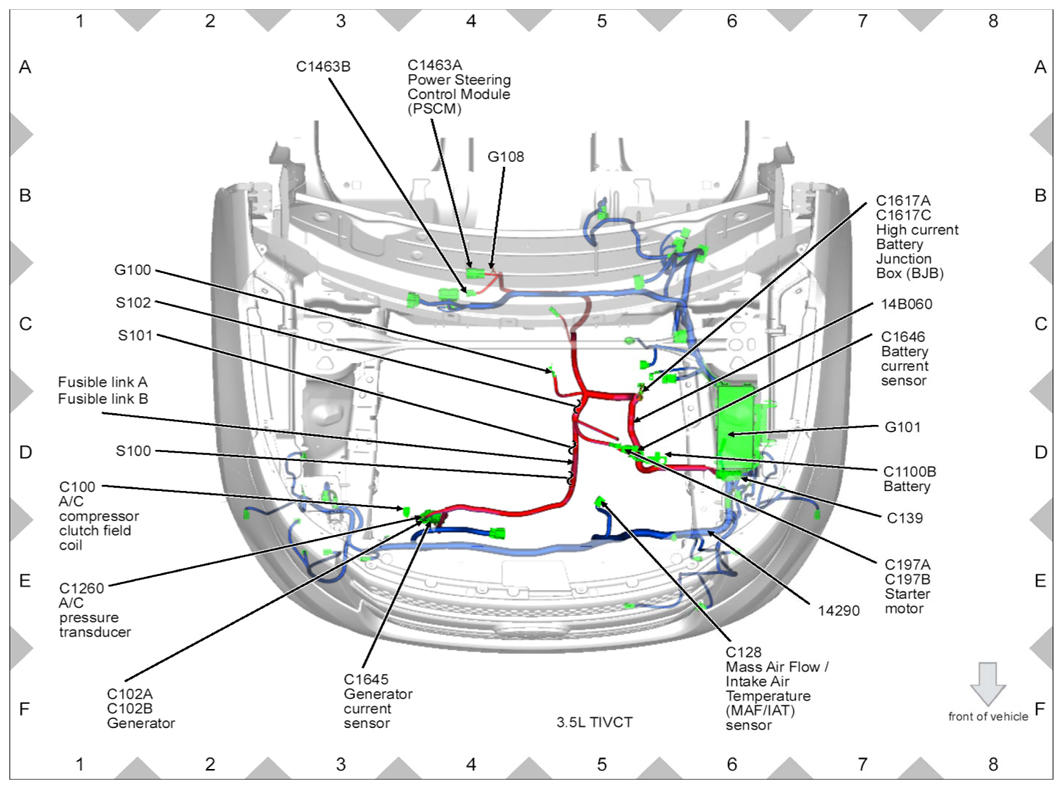

Fig 4: Engine Compartment Wiring Harness Connectors Location (4 Of 4)

G07895812

Courtesy of FORD MOTOR CO.

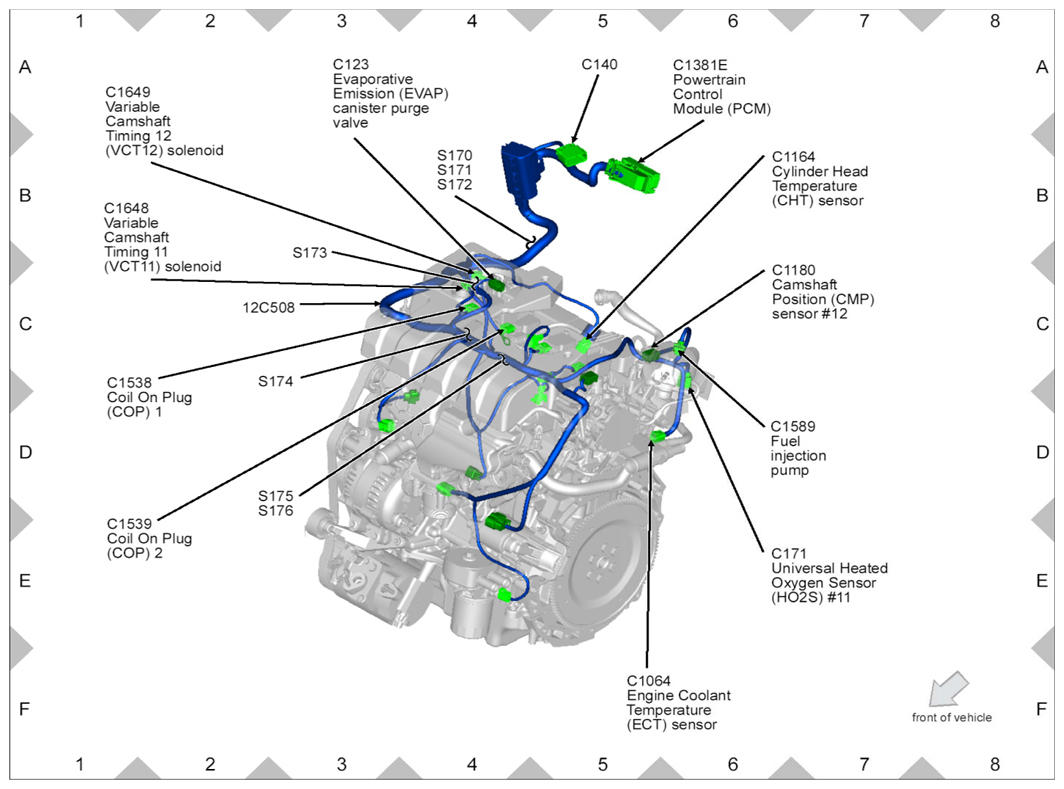

Fig 5: Engine Wiring Harness Connectors Location (1 Of 7)

G07895813

Courtesy of FORD MOTOR CO.

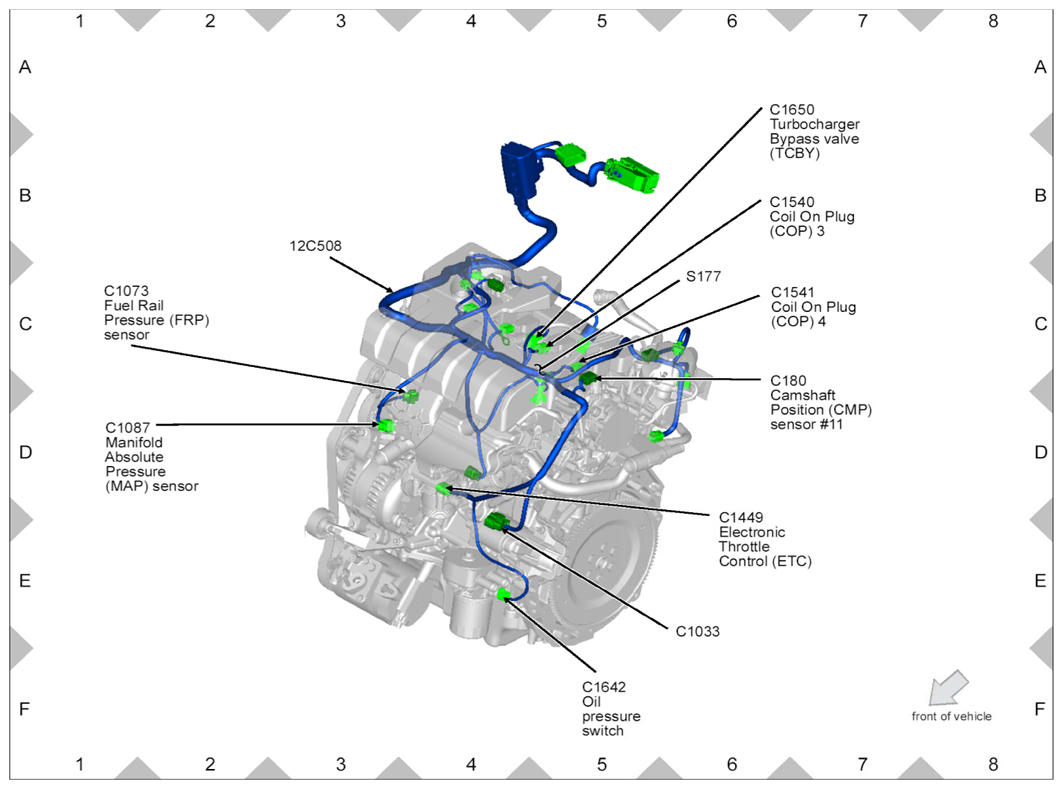

Fig 6: Engine Wiring Harness Connectors Location (2 Of 7)

G07895814

Courtesy of FORD MOTOR CO.

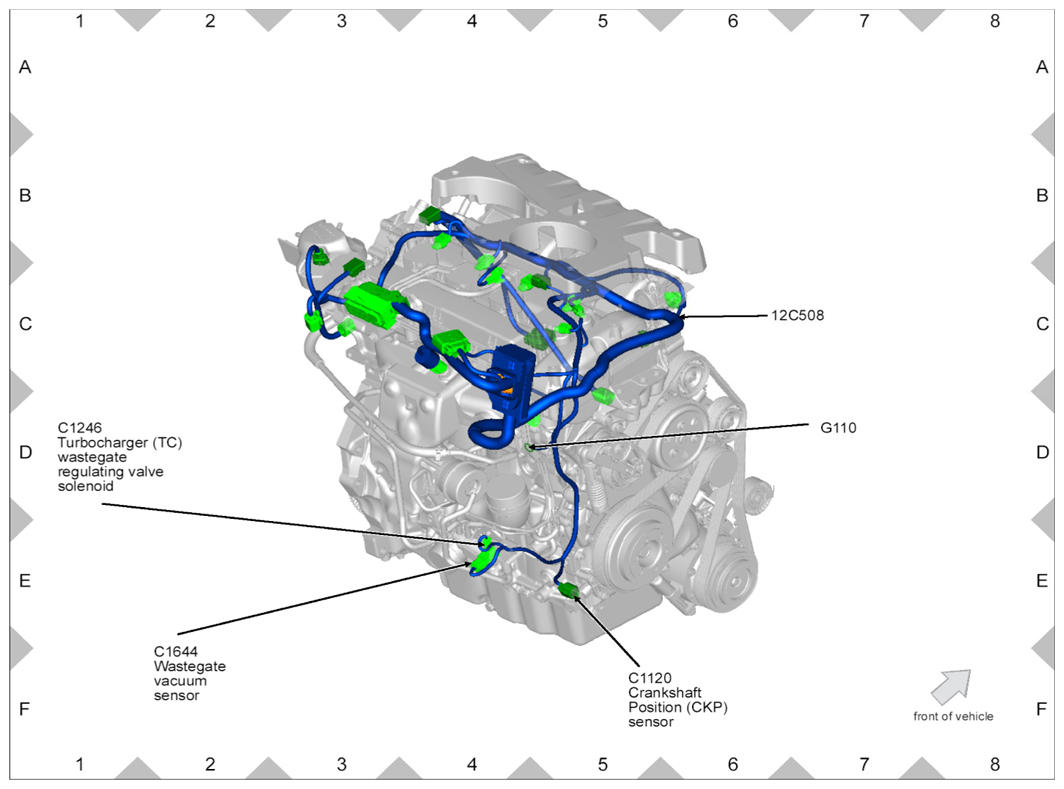

Fig 7: Engine Wiring Harness Connectors Location (3 Of 7)

G07895815

Courtesy of FORD MOTOR CO.

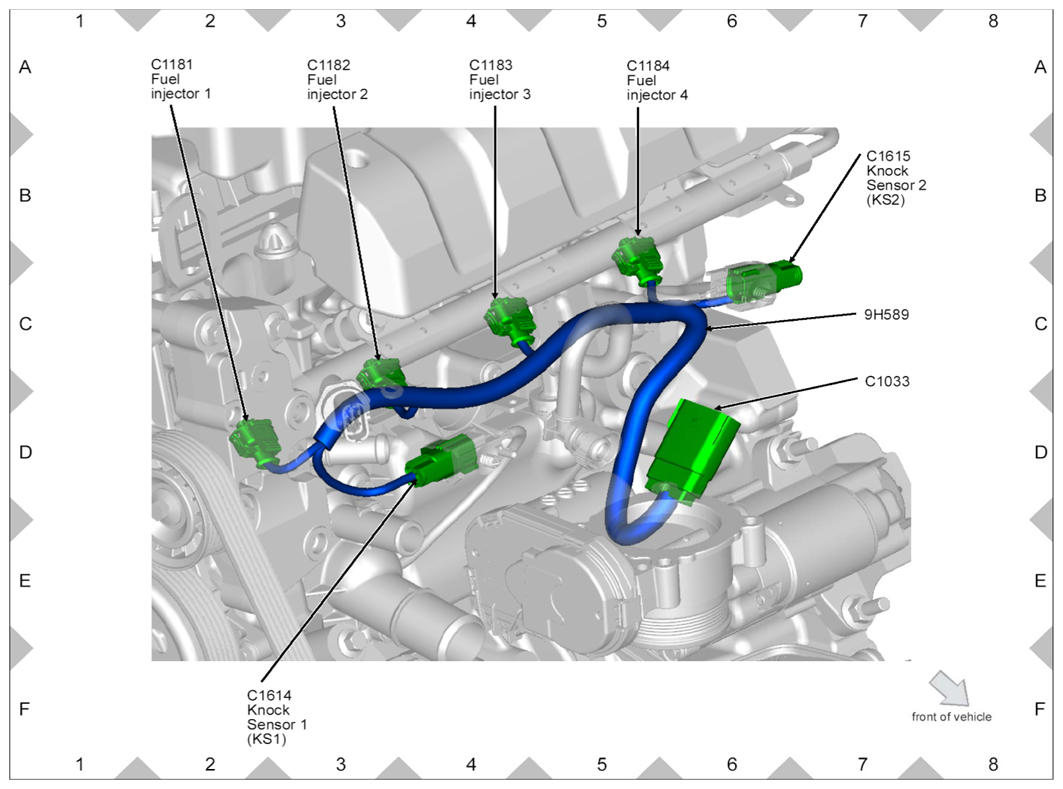

Fig 8: Engine Wiring Harness Connectors Location (4 Of 7)

G07895816

Courtesy of FORD MOTOR CO.

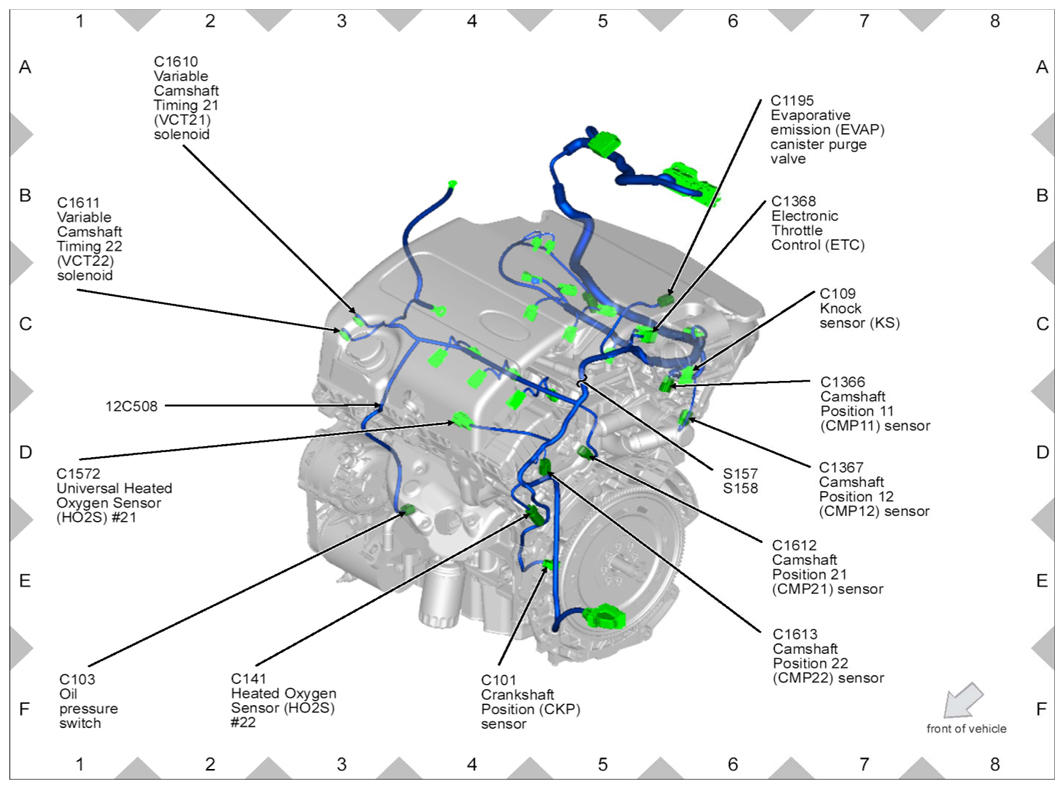

Fig 9: Engine Wiring Harness Connectors Location (5 Of 7)

G07895817

Courtesy of FORD MOTOR CO.

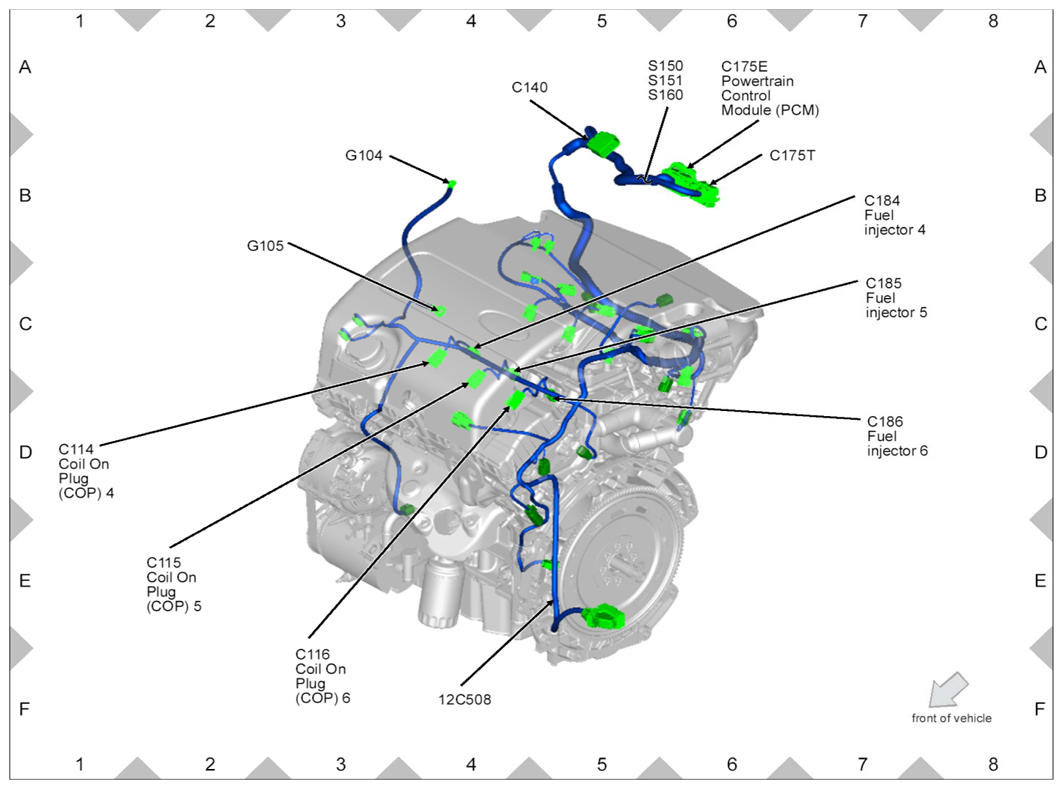

Fig 10: Engine Wiring Harness Connectors Location (6 Of 7)

G07895818

Courtesy of FORD MOTOR CO.

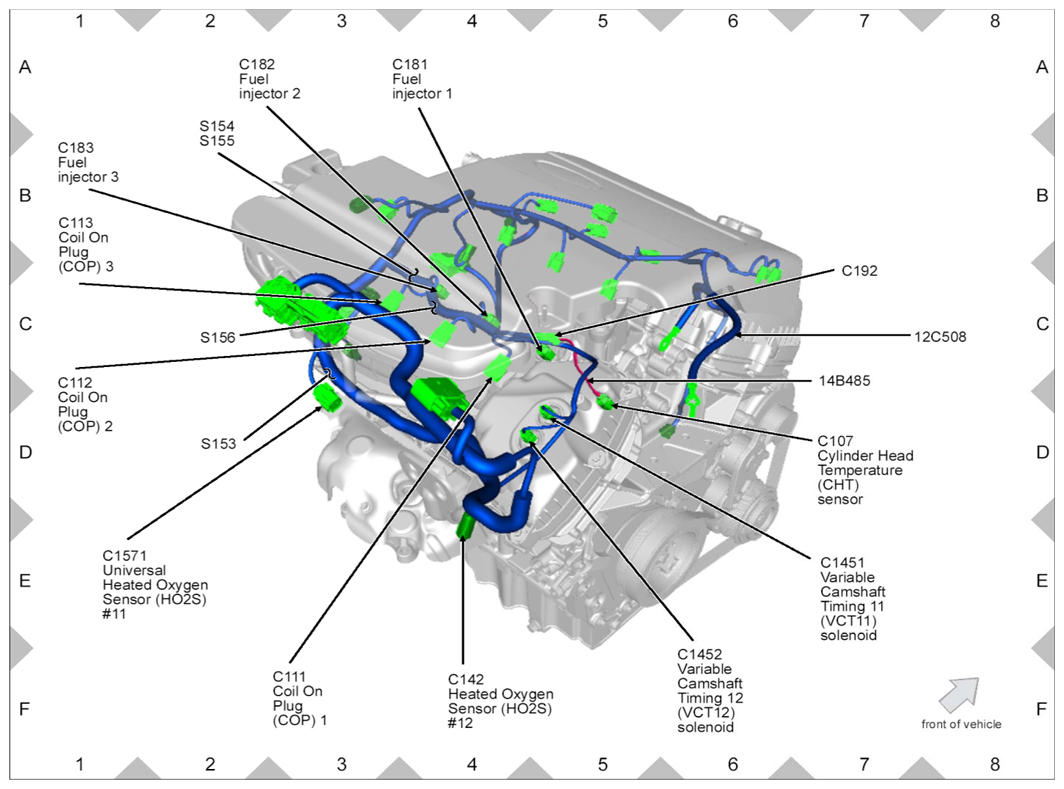

Fig 11: Engine Wiring Harness Connectors Location (7 Of 7)

G07895819

Courtesy of FORD MOTOR CO.

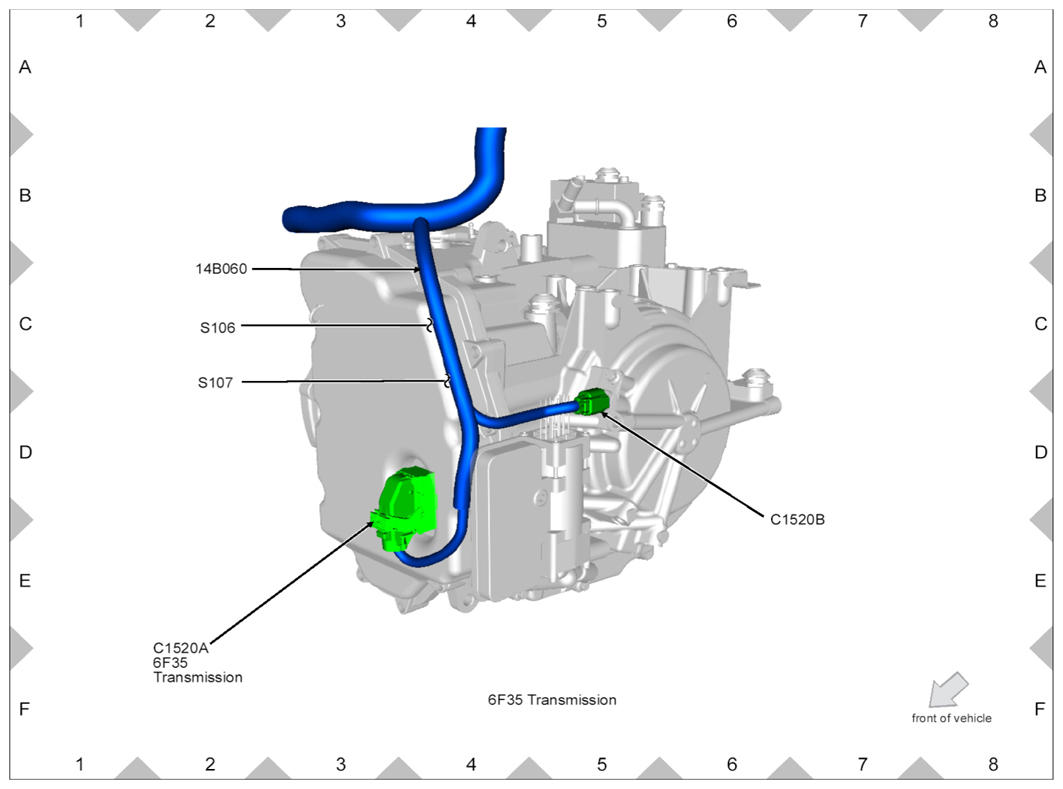

Fig 12: Transmission Wiring Harness Connectors Location (1 Of 2)

G07895820

Courtesy of FORD MOTOR CO.

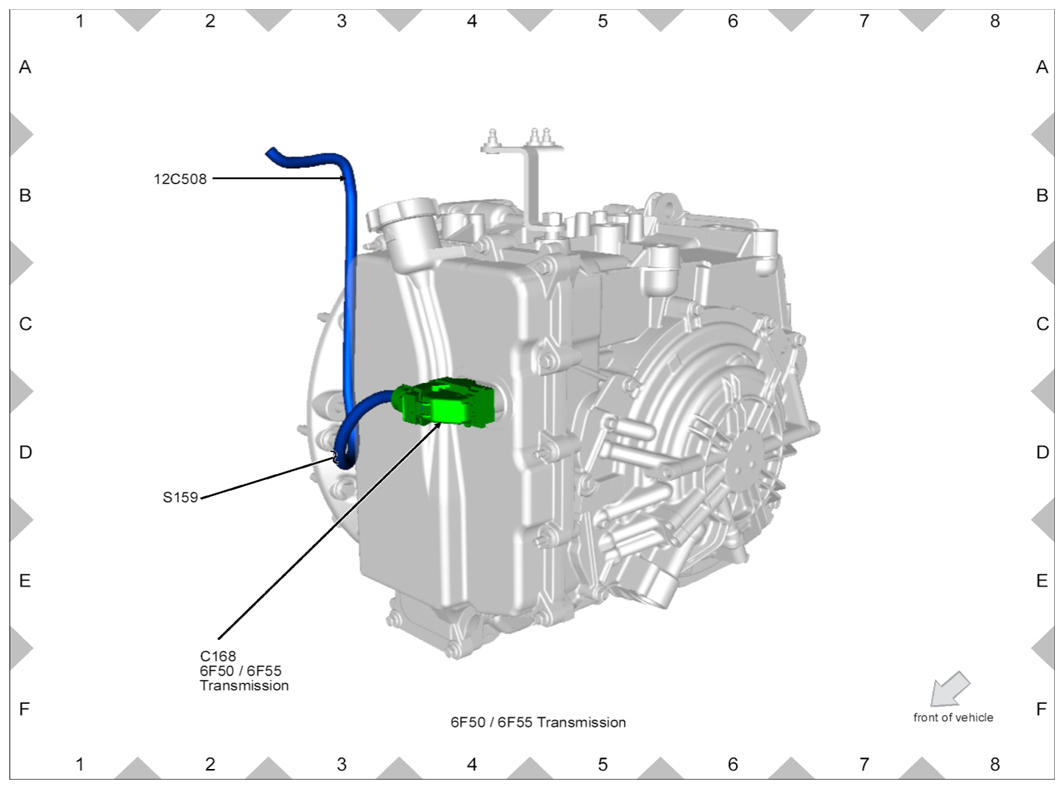

Fig 13: Transmission Wiring Harness Connectors Location (2 Of 2)

G07895821

Courtesy of FORD MOTOR CO.

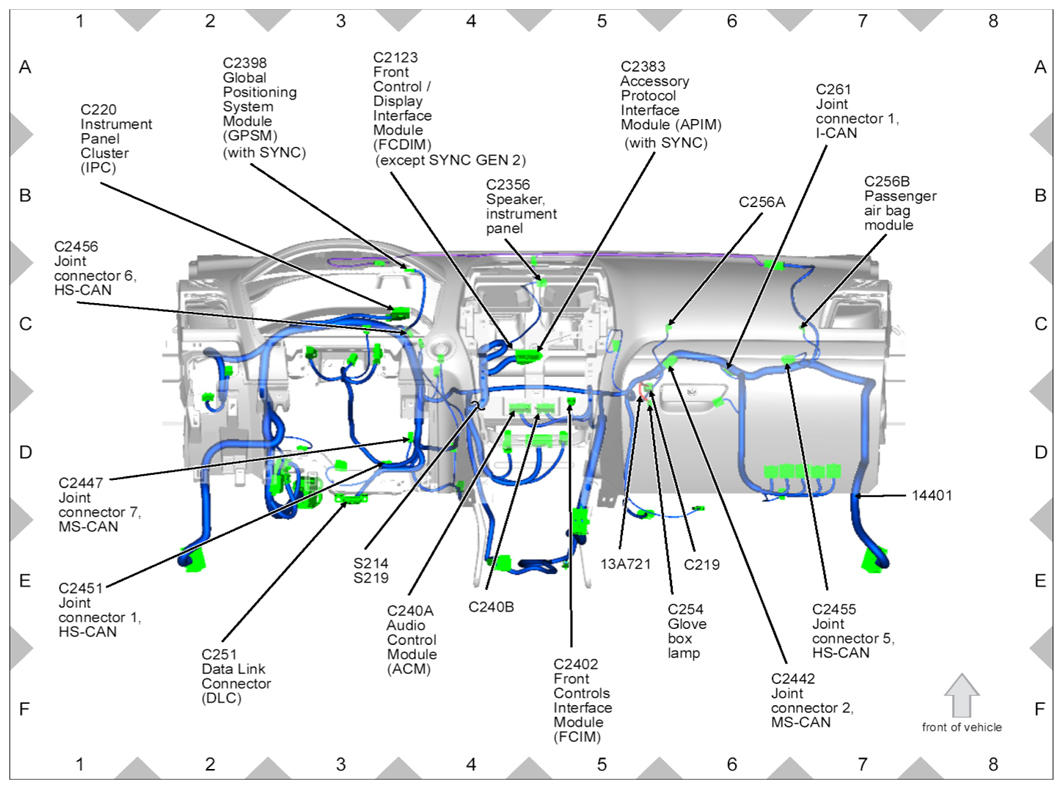

Fig 14: Front Side Dash Board Wiring Harness Connectors Location (1 Of 2)

G07895822

Courtesy of FORD MOTOR CO.

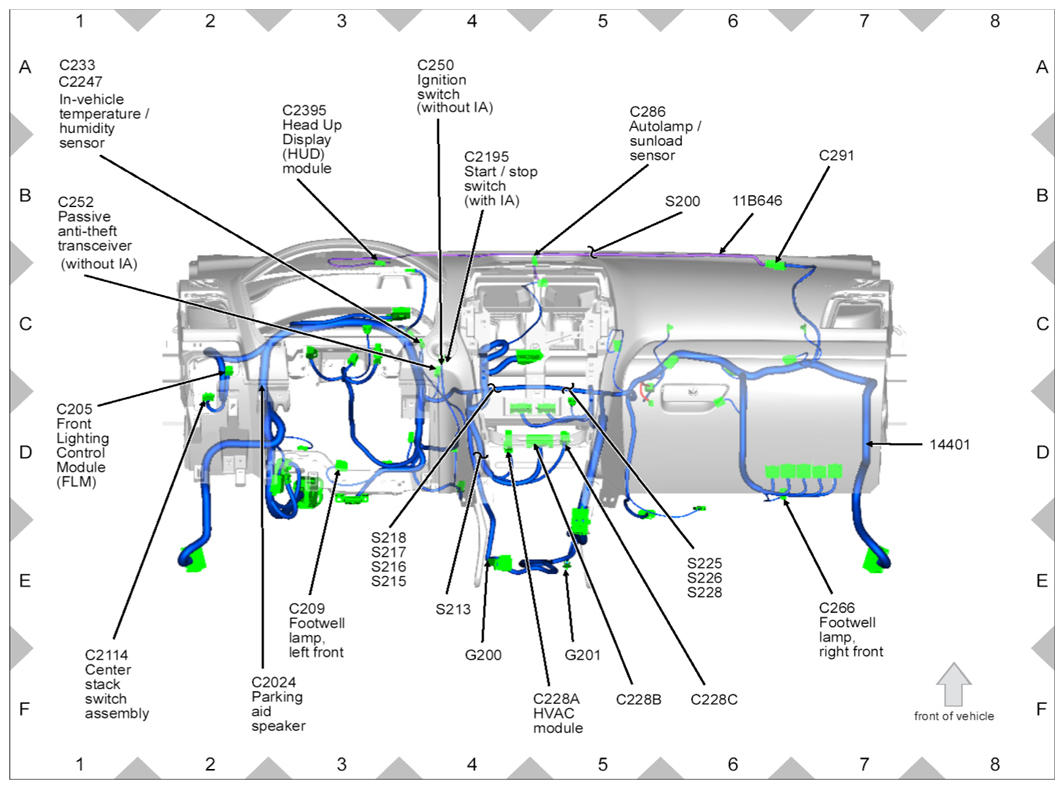

Fig 15: Front Side Dash Board Wiring Harness Connectors Location (1 Of 2)

G07895823

Courtesy of FORD MOTOR CO.

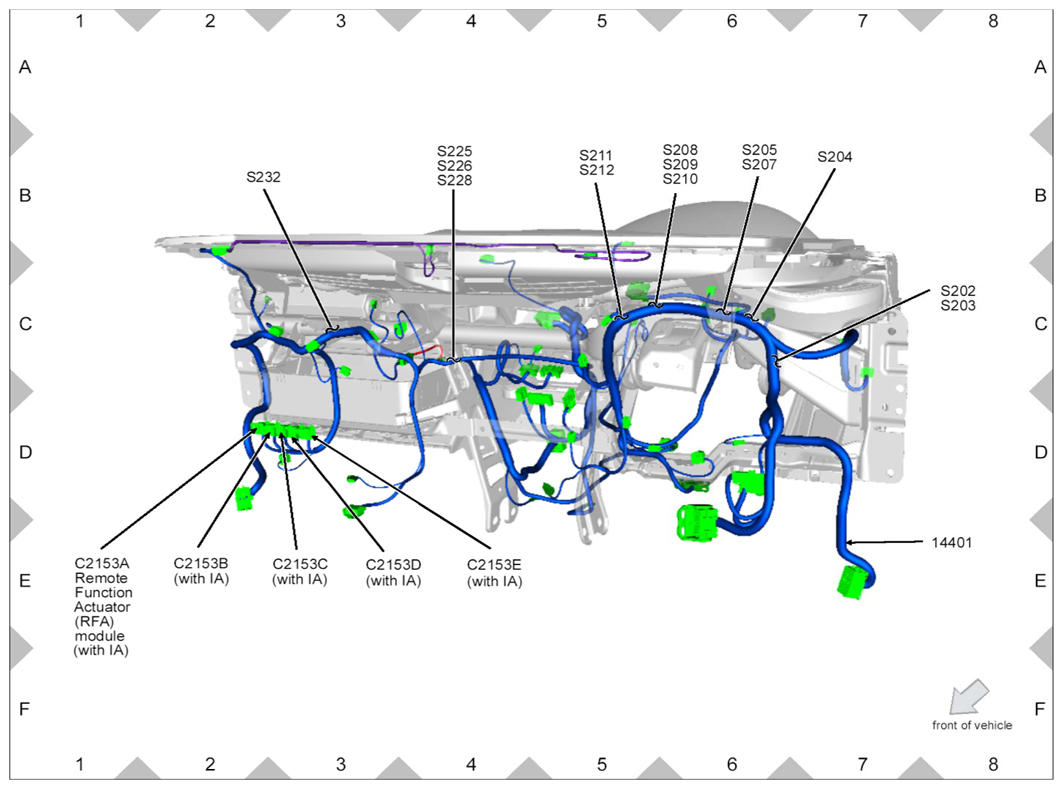

Fig 16: Back Side Dash Board Wiring Harness Connectors Location

G07895824

Courtesy of FORD MOTOR CO.

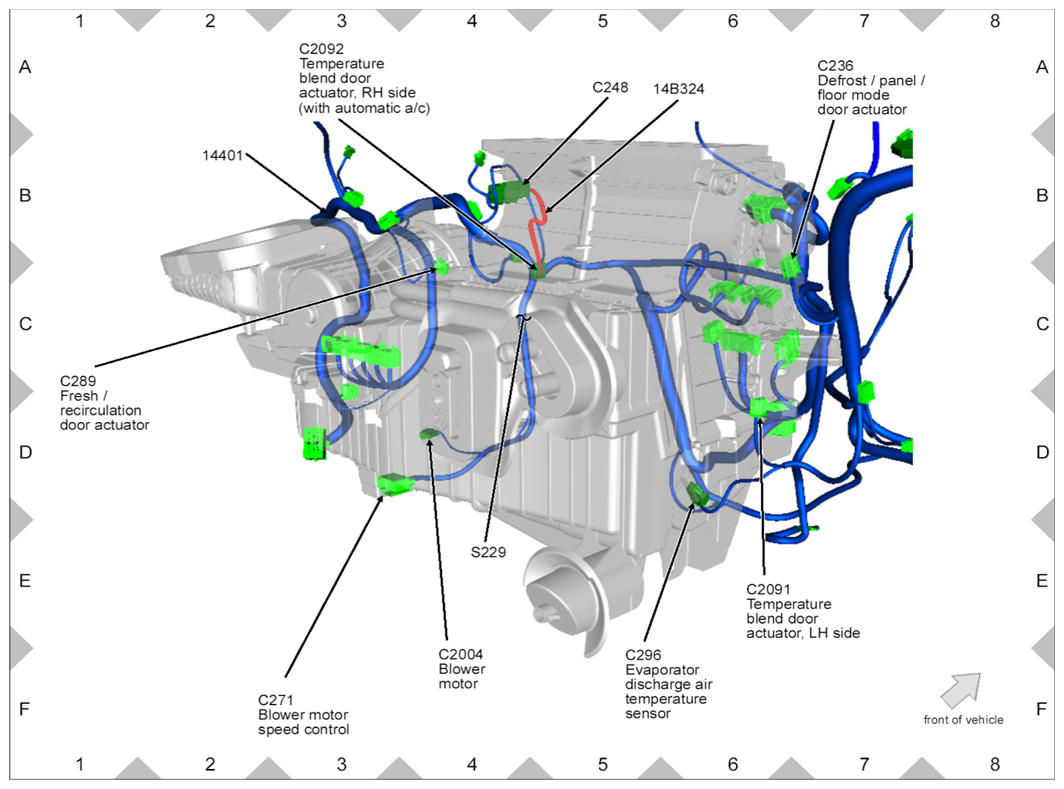

Fig 17: HVAC System Wiring Harness Connectors Location

G07895825

Courtesy of FORD MOTOR CO.

Fig 18: Turbocharger Wiring Harness Connectors Location

G07895826

Courtesy of FORD MOTOR CO.

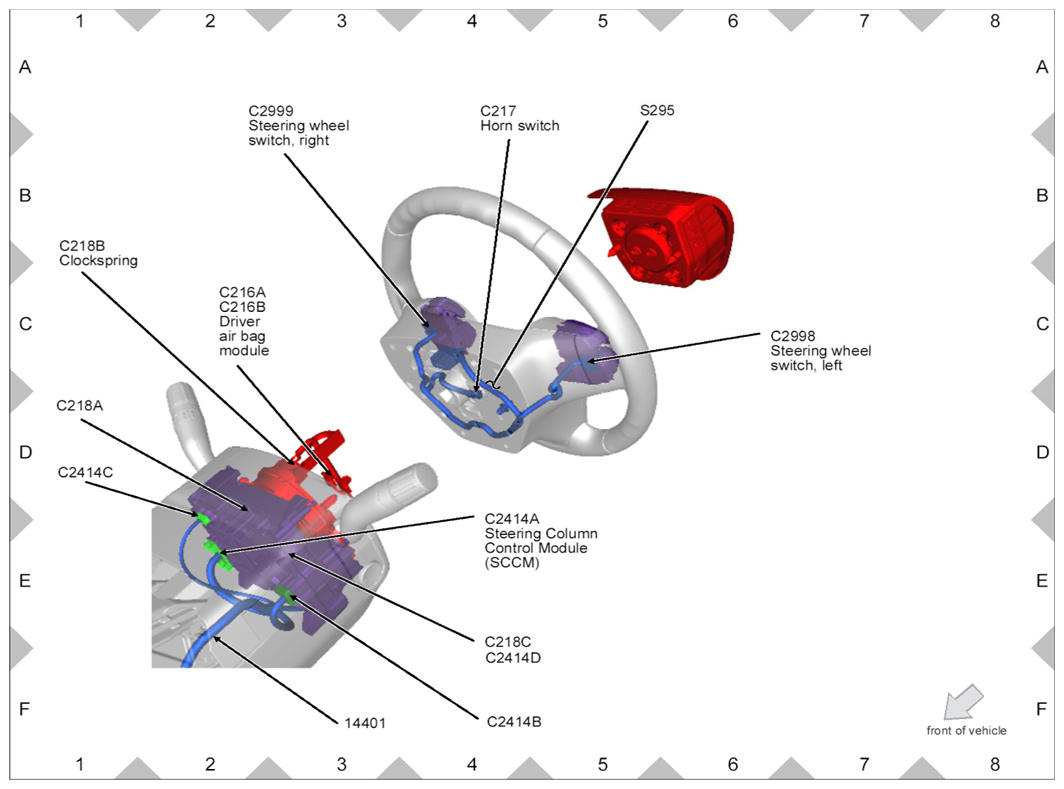

Fig 19: Steering Column Wiring Harness Connectors Location

G07895827

Courtesy of FORD MOTOR CO.

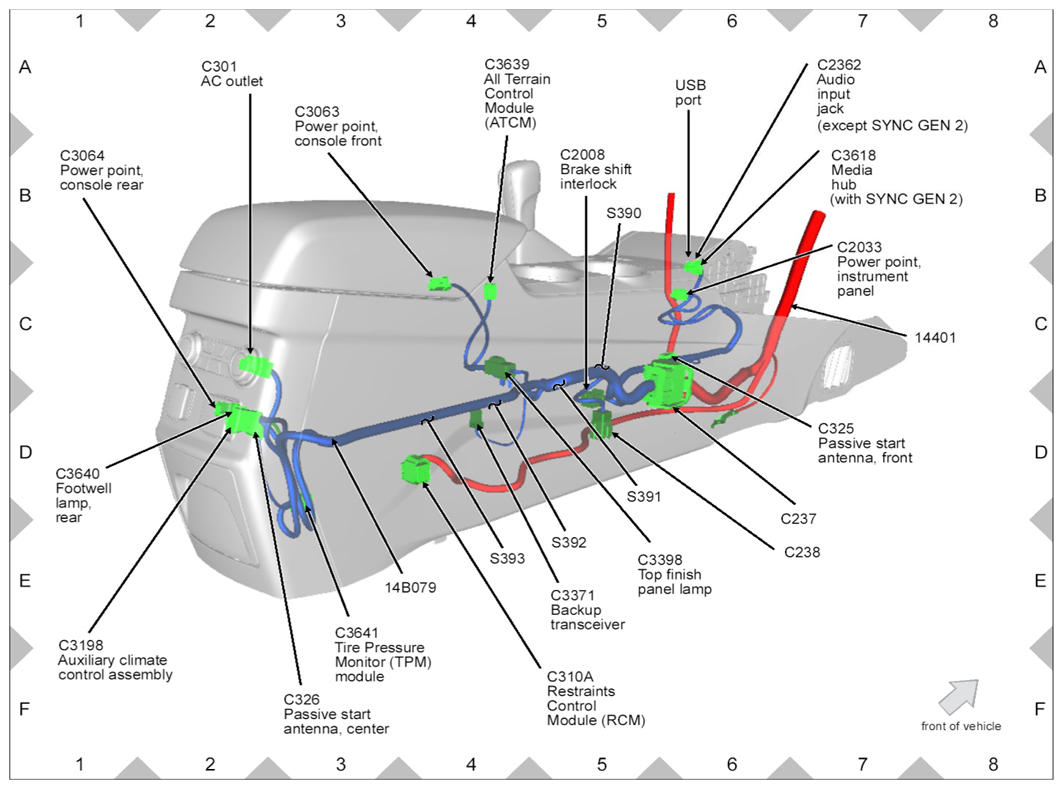

Fig 20: Center Console Wiring Harness Connectors Location

G07895828

Courtesy of FORD MOTOR CO.

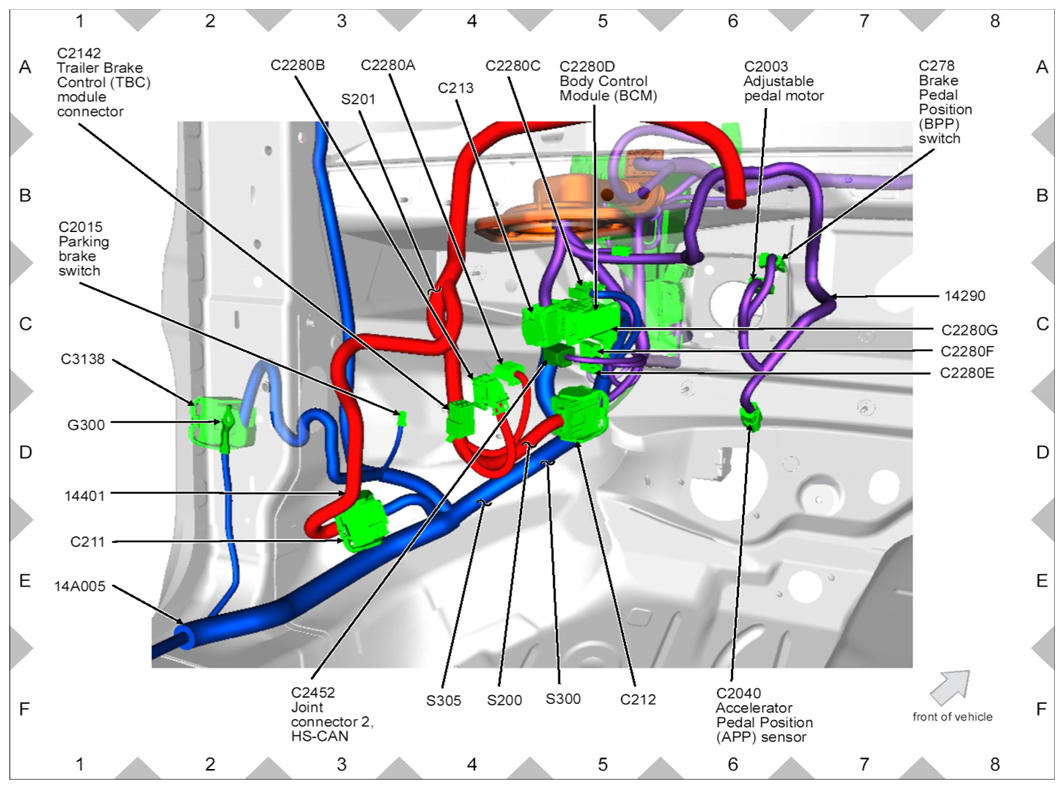

Fig 21: LH Front Inner Compartment Wiring Harness Connectors Location

G07895829

Courtesy of FORD MOTOR CO.

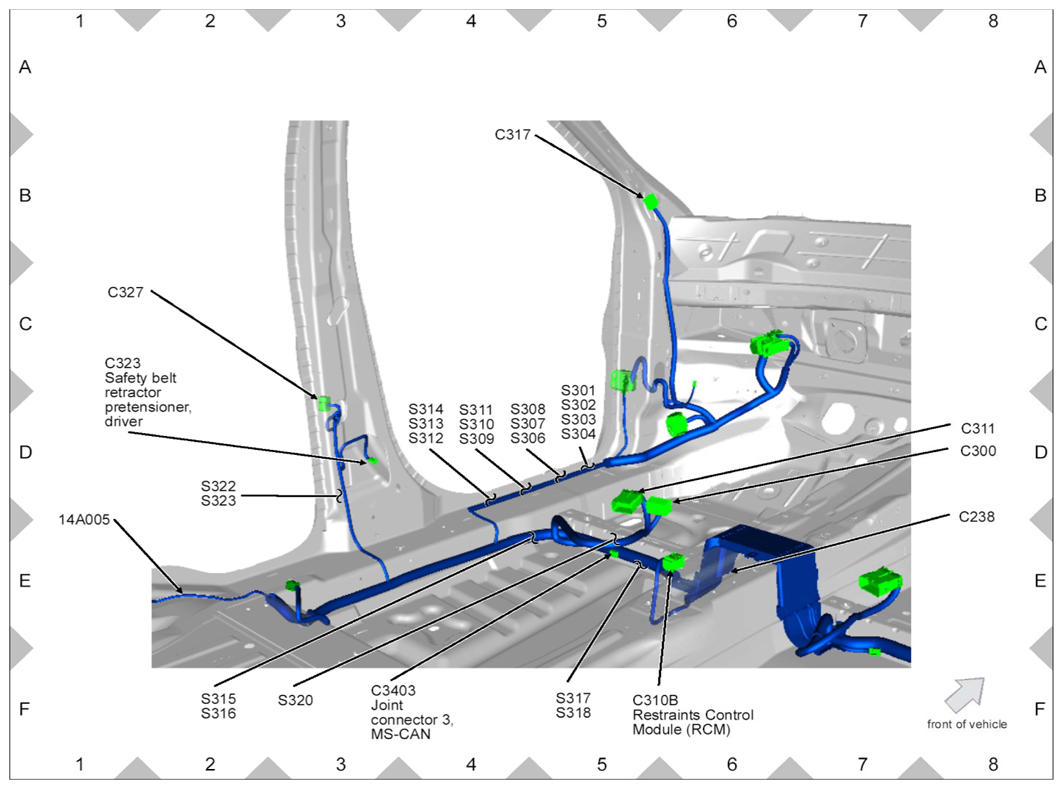

Fig 22: LH Floor Panel Compartment Wiring Harness Connectors Location

G07895830

Courtesy of FORD MOTOR CO.

Fig 23: RH Floor Panel Compartment Wiring Harness Connectors Location

G07895831

Courtesy of FORD MOTOR CO.

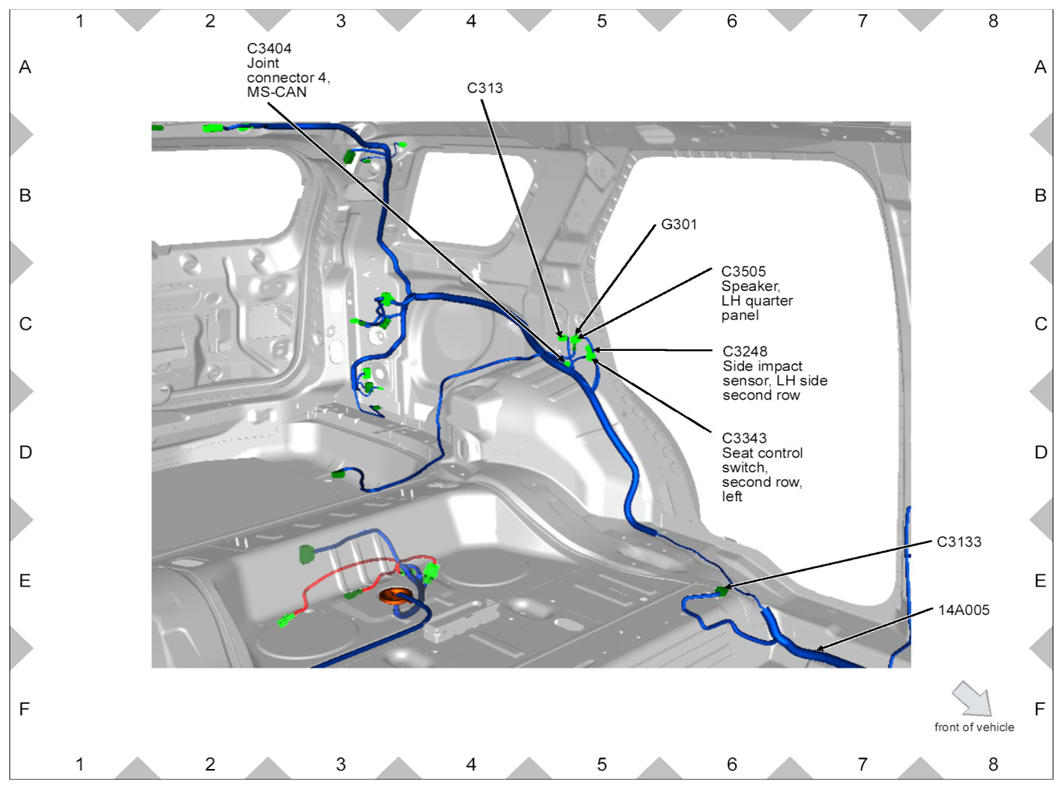

Fig 24: LH Rear Compartment Wiring Harness Connectors Location (1 Of 2)

G07895832

Courtesy of FORD MOTOR CO.

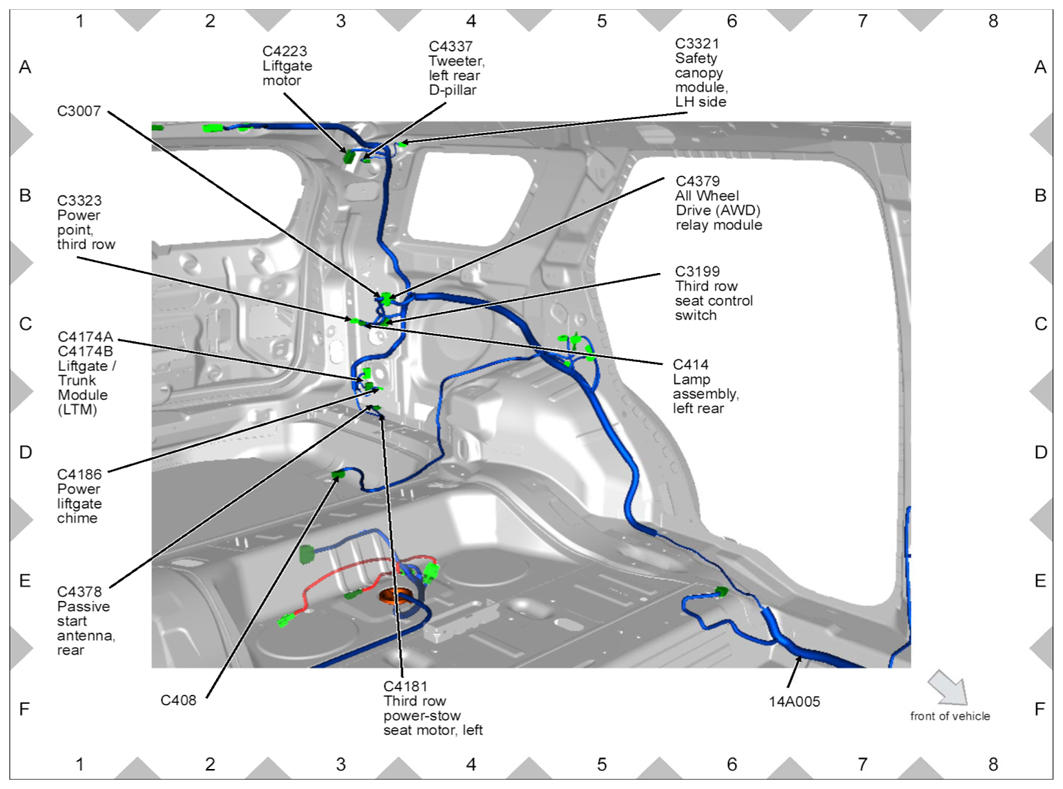

Fig 25: LH Rear Compartment Wiring Harness Connectors Location (2 Of 2)

G07895833

Courtesy of FORD MOTOR CO.

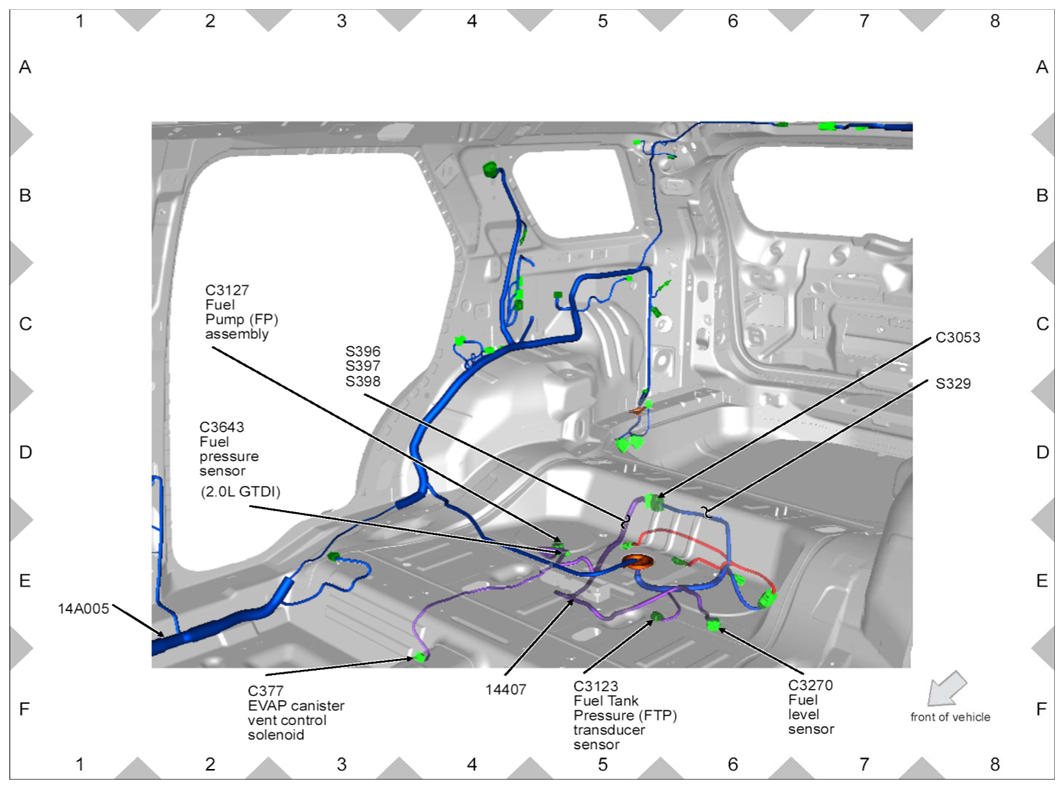

Fig 26: RH Rear Compartment Wiring Harness Connectors Location (1 Of 3)

G07895834

Courtesy of FORD MOTOR CO.

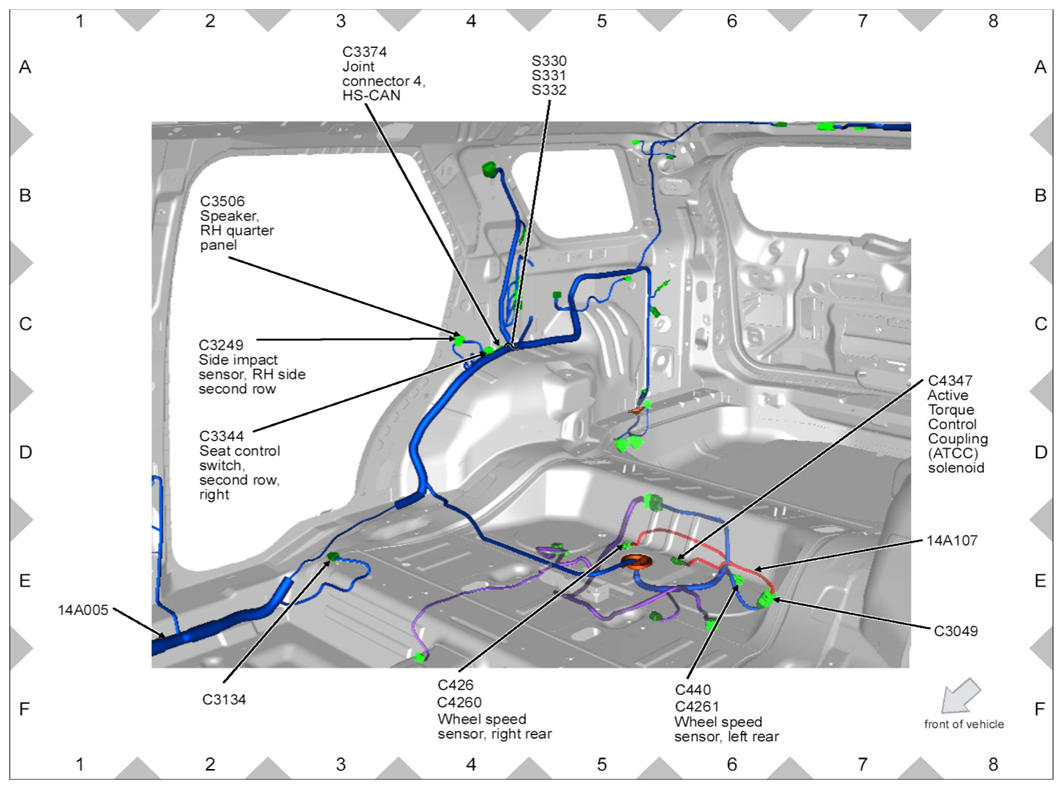

Fig 27: RH Rear Compartment Wiring Harness Connectors Location (2 Of 3)

G07895835

Courtesy of FORD MOTOR CO.

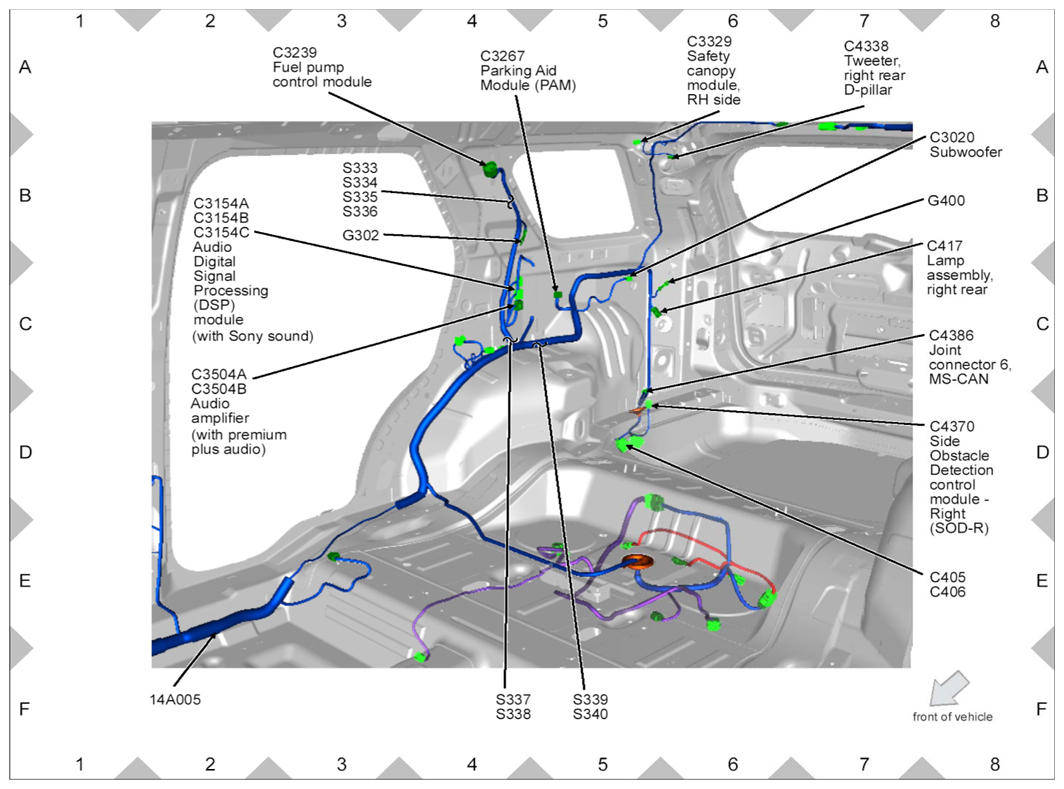

Fig 28: RH Rear Compartment Wiring Harness Connectors Location (3 Of 3)

G07895836

Courtesy of FORD MOTOR CO.

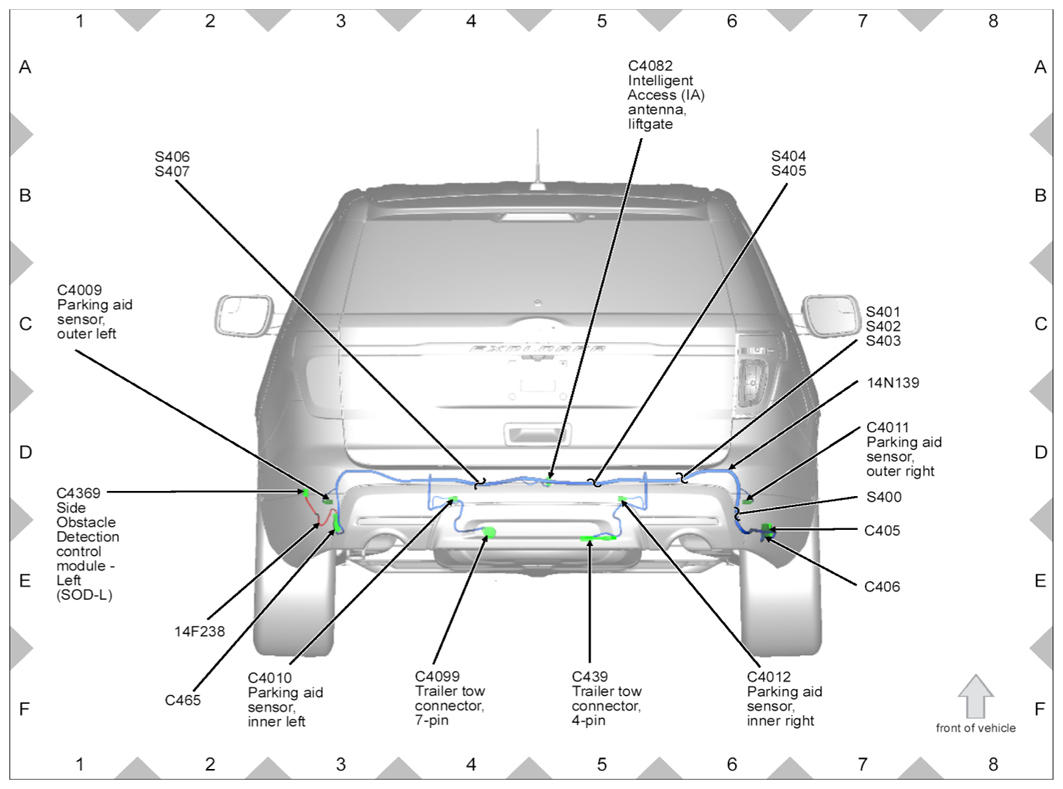

Fig 29: Vehicle Wiring Harness Connectors Location (Back Side)

G07895837

Courtesy of FORD MOTOR CO.

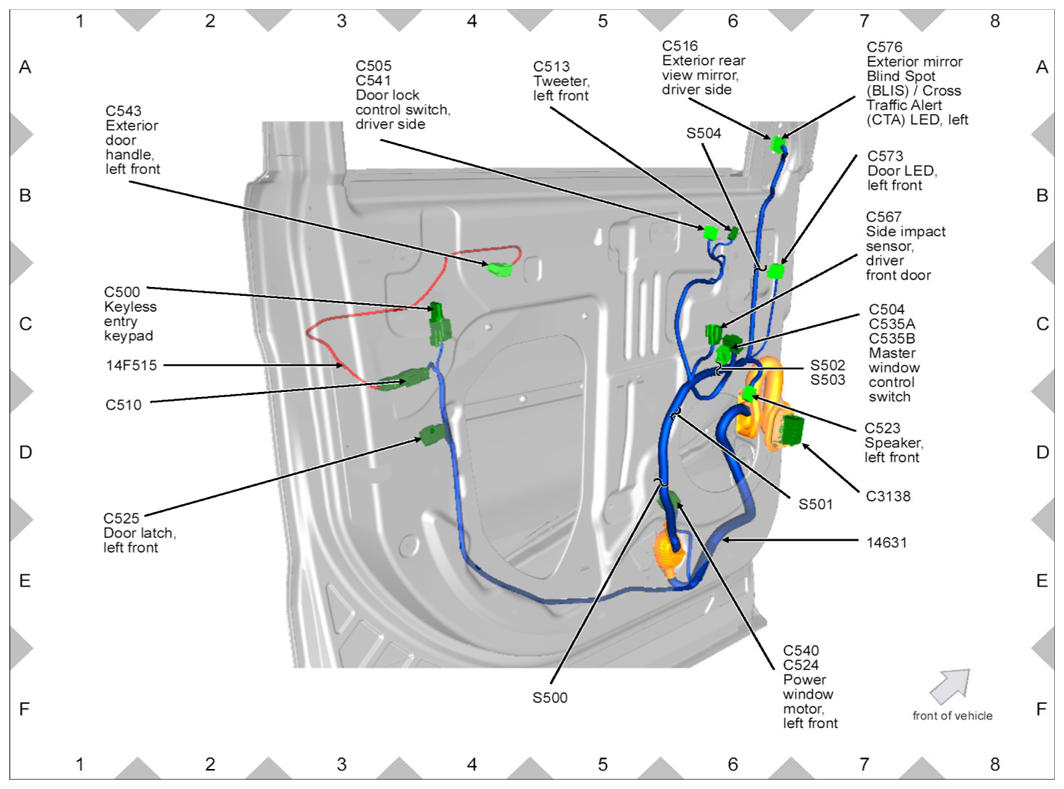

Fig 30: LH Front Door Wiring Harness Connectors Location

G07895838

Courtesy of FORD MOTOR CO.

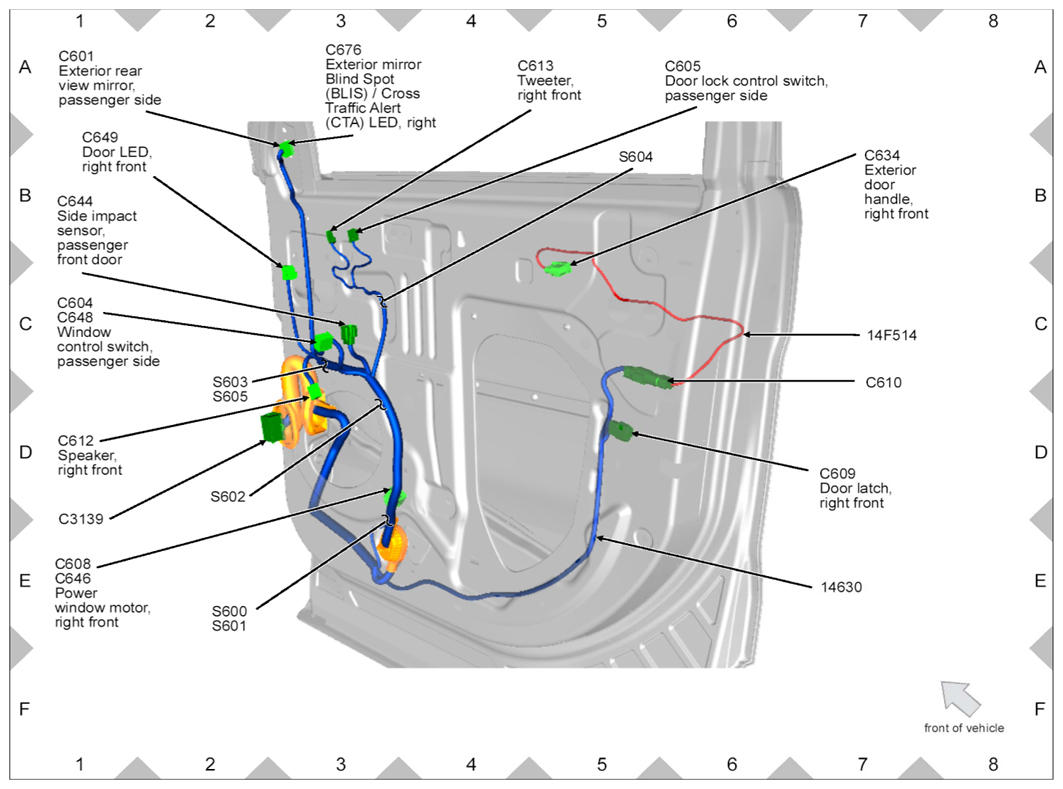

Fig 31: RH Front Door Wiring Harness Connectors Location

G07895839

Courtesy of FORD MOTOR CO.

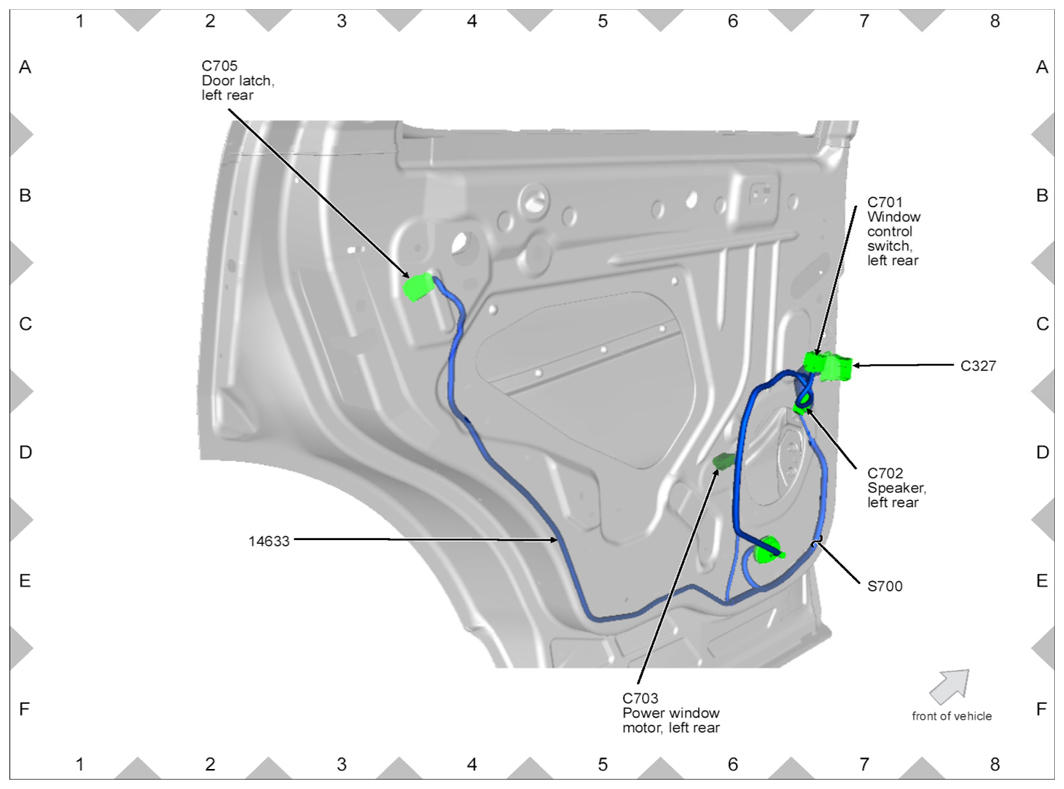

Fig 32: LH Rear Door Wiring Harness Connectors Location

G07895840

Courtesy of FORD MOTOR CO.

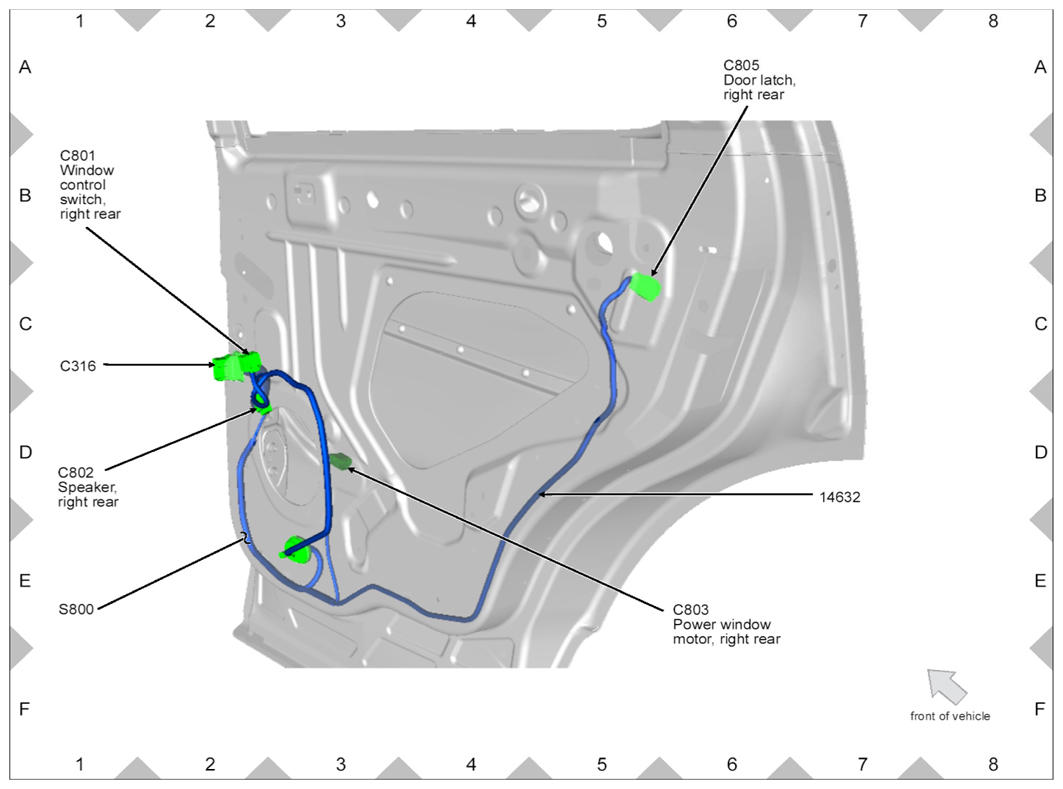

Fig 33: RH Rear Door Wiring Harness Connectors Location

G07895841

Courtesy of FORD MOTOR CO.

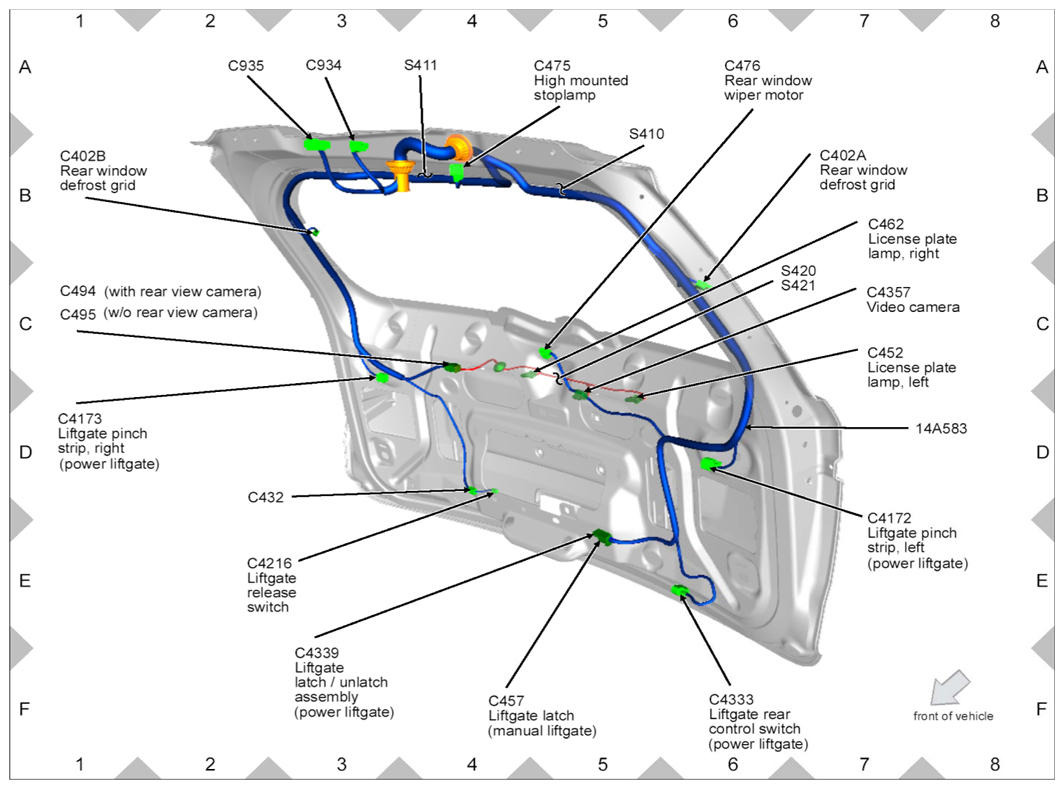

Fig 34: Back Door Wiring Harness Connectors Location

G07895842

Courtesy of FORD MOTOR CO.

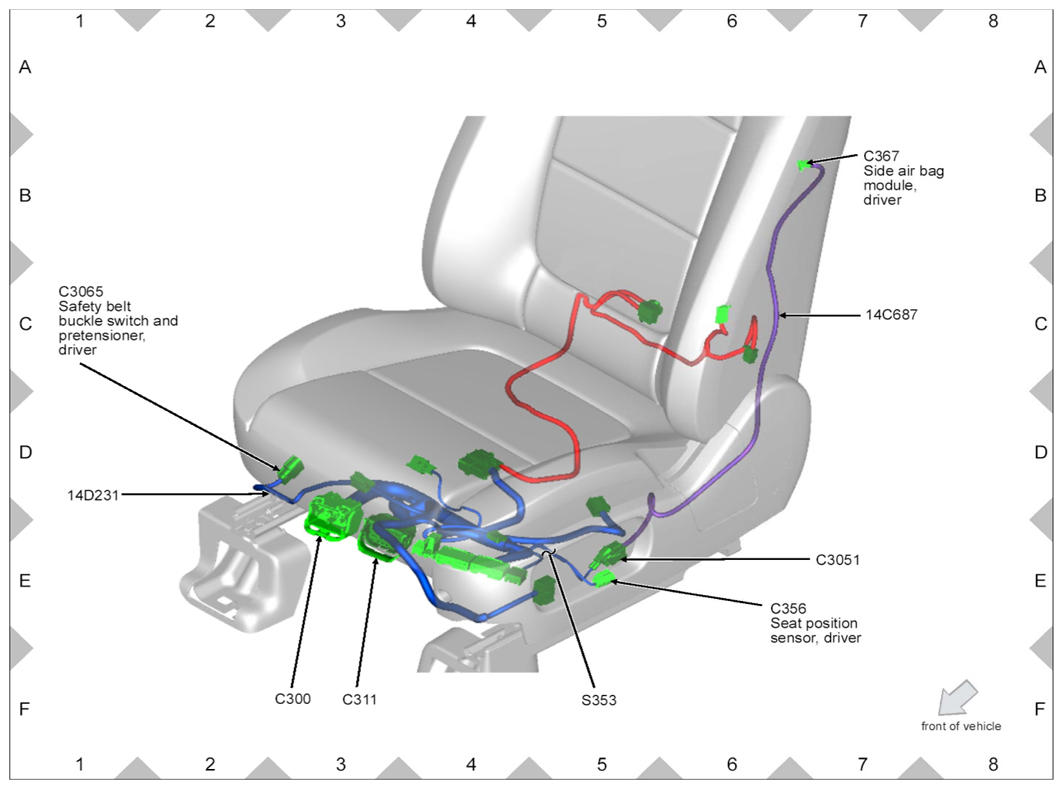

Fig 35: Driver Seat Wiring Harness Connectors Location (1 Of 2)

G07895843

Courtesy of FORD MOTOR CO.

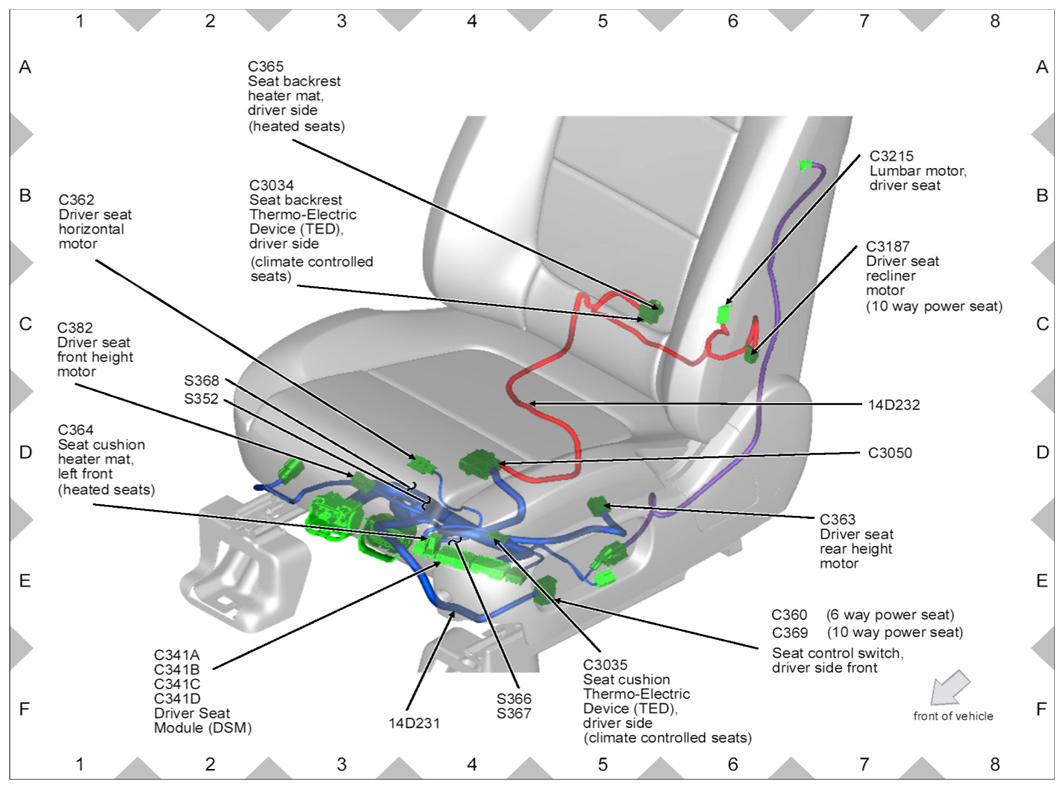

Fig 36: Driver Seat Wiring Harness Connectors Location (2 Of 2)

G07895844

Courtesy of FORD MOTOR CO.

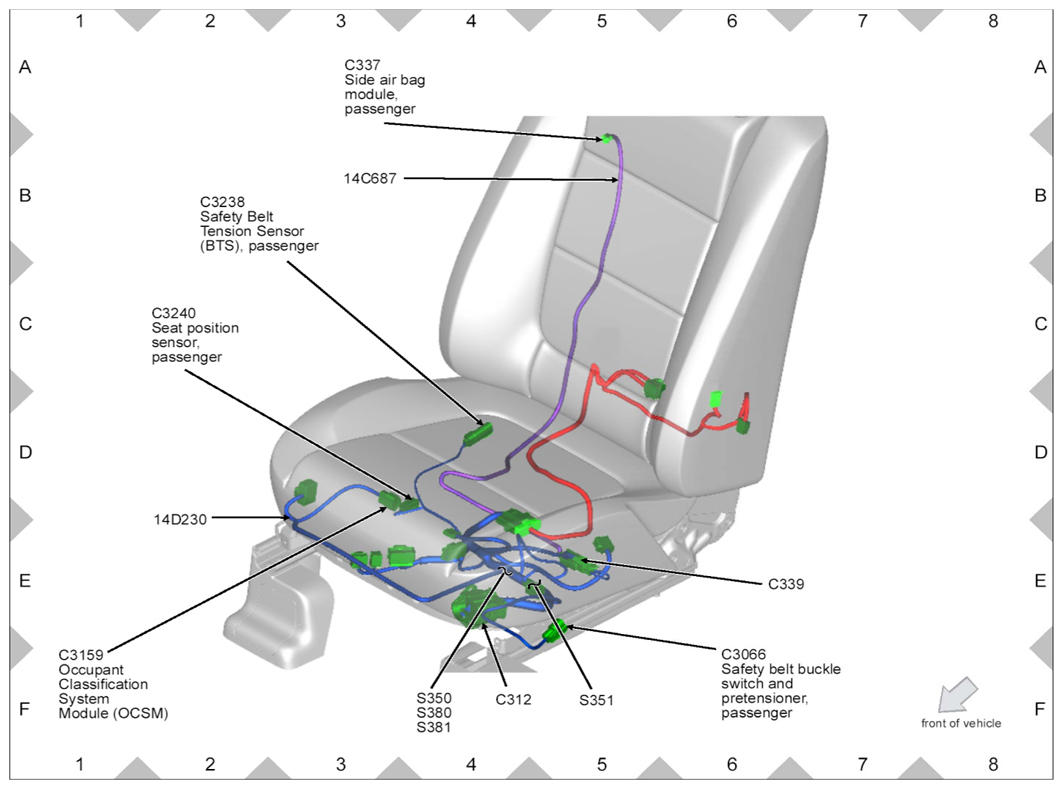

Fig 37: Passenger Seat Wiring Harness Connectors Location (1 Of 2)

G07895845

Courtesy of FORD MOTOR CO.

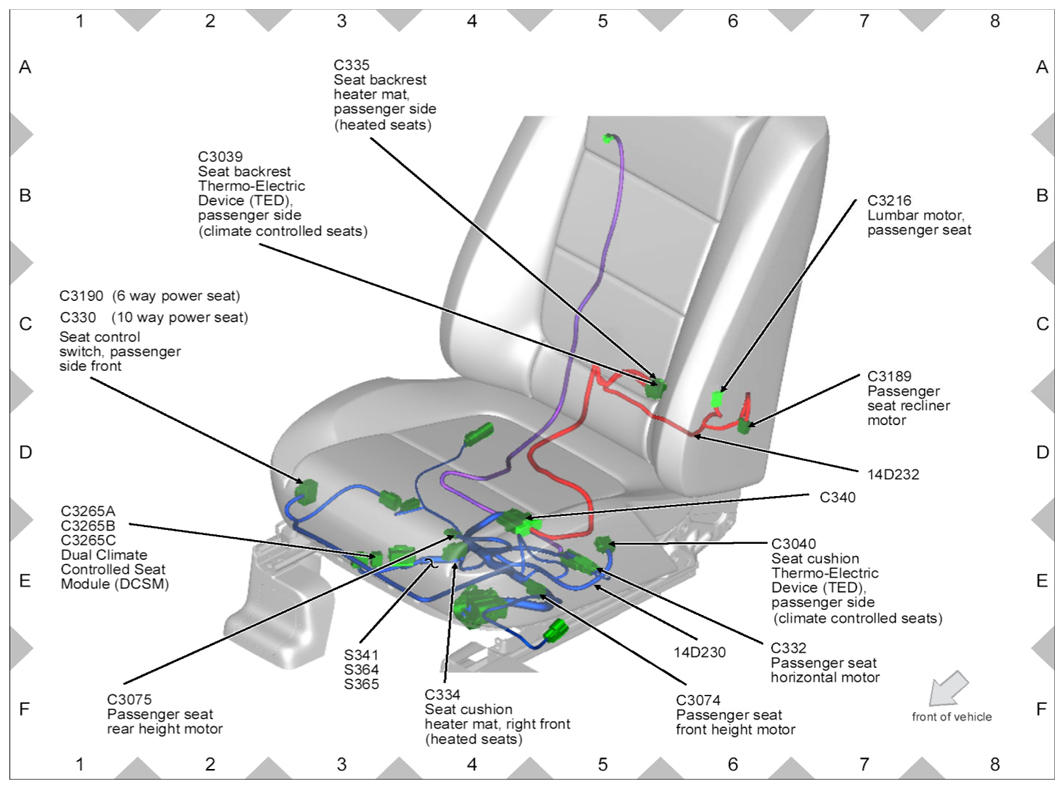

Fig 38: Passenger Seat Wiring Harness Connectors Location (2 Of 2)

G07895846

Courtesy of FORD MOTOR CO.

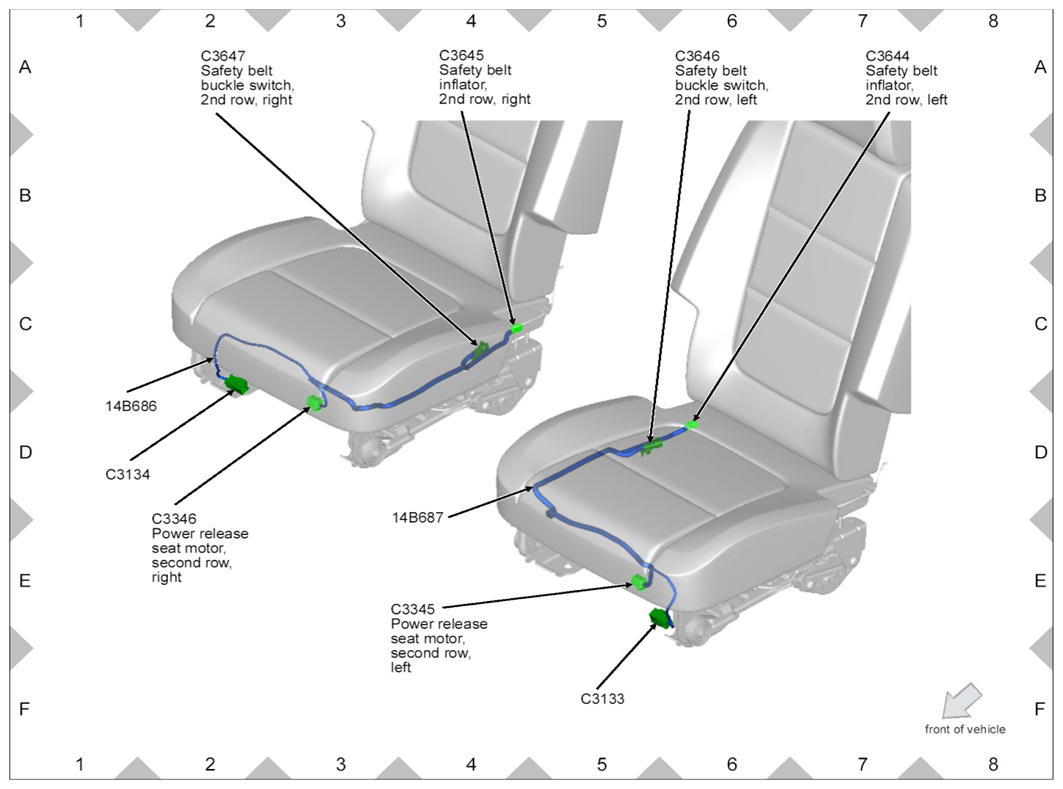

Fig 39: Passenger Seat Wiring Harness Connectors Location (2nd Row)

G07895847

Courtesy of FORD MOTOR CO.

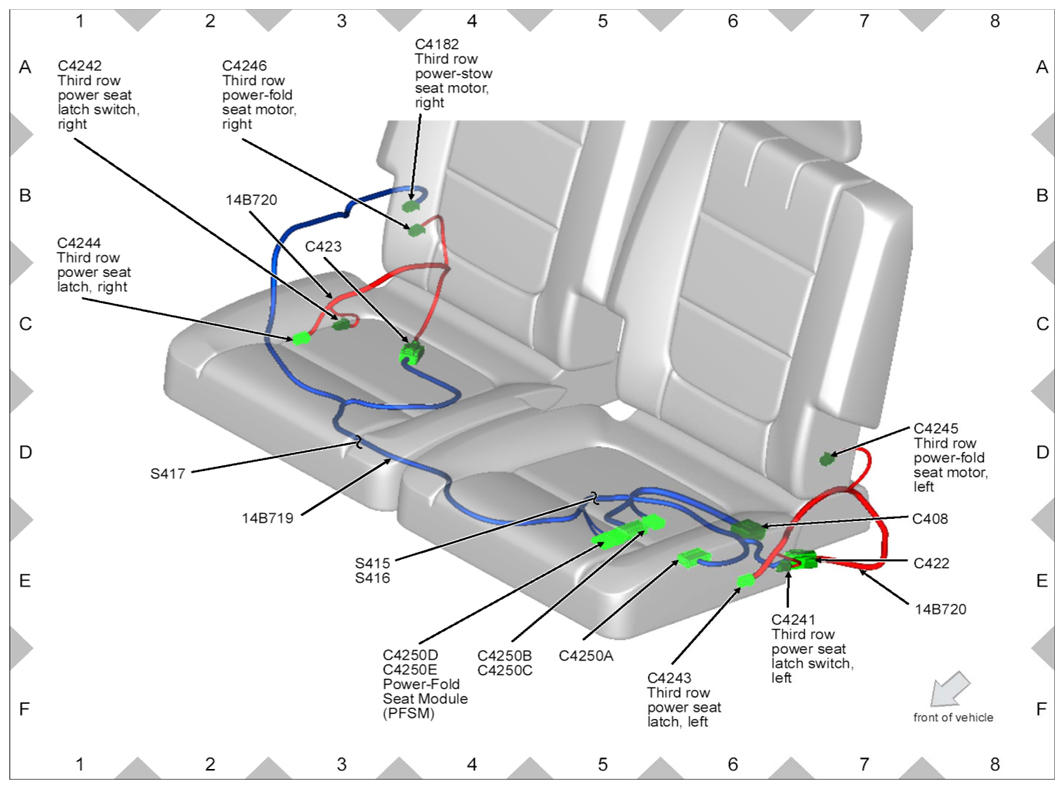

Fig 40: Passenger Seat Wiring Harness Connectors Location (3rd Row)

G07895848

Courtesy of FORD MOTOR CO.

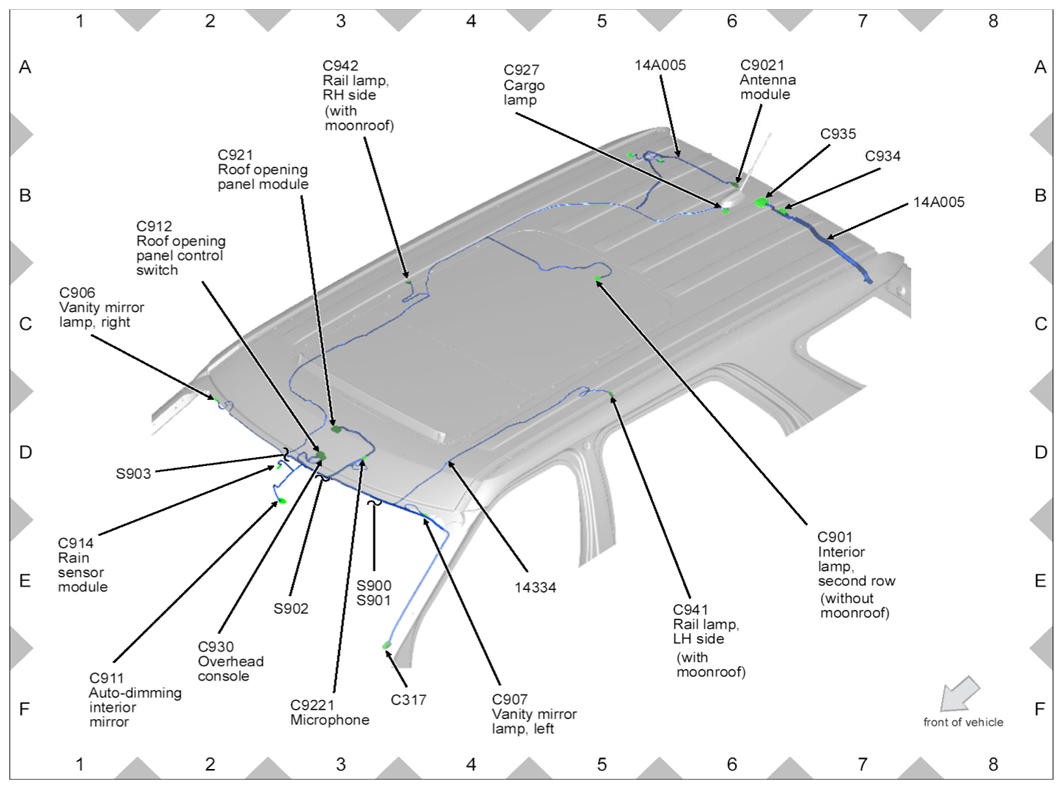

Fig 41: Roof Wiring Harness Connectors Location

G07895849

Courtesy of FORD MOTOR CO.
