General Procedure

NOTE: For specifications refer to the appropriate engine mechanical article. For 2.0L GTDI, refer to the GENERAL SPECIFICATIONS , or for 3.5L Ti-VCT, refer to the GENERAL SPECIFICATIONS tables.
  1. Measure the out-of-square on each valve spring.
    • Turn the valve spring and observe the space between the top of the valve spring and the square. Install a new valve spring if out of square.

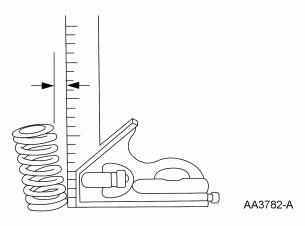

    Fig 1: Measuring Out-Of-Square Of Valve Spring
    G06659933Courtesy of FORD MOTOR CO.
