Transfer Case

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Vehicles with electronic shift transfer case and TorqShift® transmission shown in illustration, manual shift transfer case and/or TorqShift®6 transmission similar.

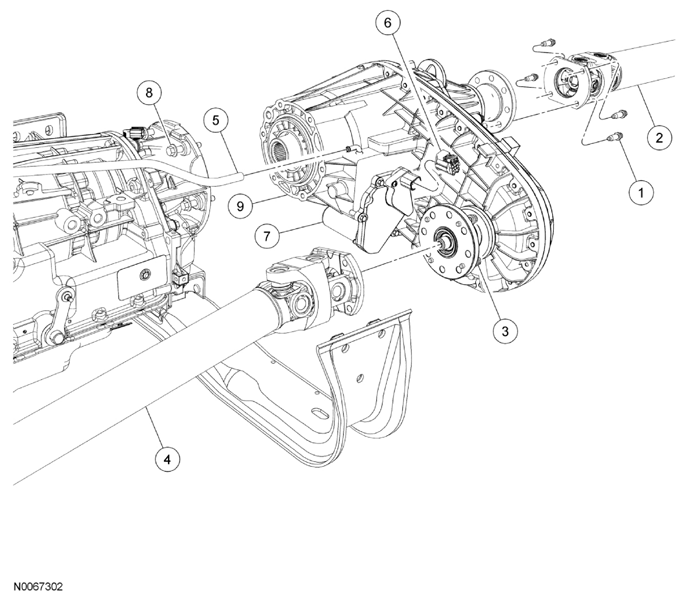

Fig 1: Identifying Transfer Case, Rear Driveshaft, Front Driveshaft And Gearmotor Encoder Electrical Connector
G08599036Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Rear driveshaft bolt (4 required)
2 4602 Rear driveshaft
3 - Front driveshaft bolt (4 required)
4 4817 Front driveshaft
5 7034 Vent hose
6 - Gearmotor encoder electrical connector
7 - Gearmotor electrical connector
8 - Transfer case-to-transmission bolt (6 required for TorqShift® and 11 for TorqShift®6
9 7A195 Transfer case

All vehicles

  1. NOTE: Shift the transfer case to 2H.

    With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .

  2. If equipped, remove the 4 bolts and the skid plate.

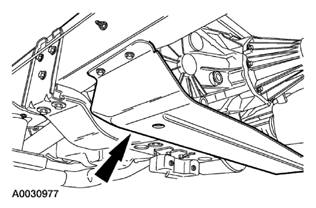

    Fig 2: Locating Transfer Case Skid Plate
    G08599037Courtesy of FORD MOTOR CO.

    Vehicles equipped with a flange

  3. NOTE: Index-mark the front driveshaft to the transfer case flange.

    Remove and discard the 4 front driveshaft bolts and position the front driveshaft aside.

  4. NOTE: Index-mark the rear driveshaft to the transfer case flange.

    Remove and discard the 4 rear driveshaft bolts and position the rear driveshaft aside.

    Vehicles equipped with a slip yoke

  5. Remove the driveshaft. For additional information, refer to DRIVESHAFT .

    Vehicles with manual shift transfer case

  6. Disconnect the manual shift linkage from the transmission.
  7. Disconnect the 3-position mode switch electrical connector.

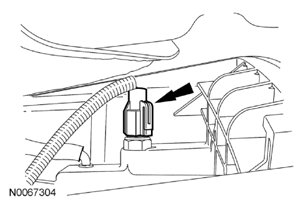

    Fig 3: Locating Position Mode Switch Electrical Connector
    G08599038Courtesy of FORD MOTOR CO.

    Vehicles with electric shift transfer case

  8. Disconnect the gearmotor encoder electrical connector and the gearmotor electrical connector.
    Fig 4: Locating Gearmotor Encoder Electrical Connector And Gearmotor Electrical Connector
    G08599039Courtesy of FORD MOTOR CO.

    All vehicles

  9. Disconnect the vent hose.

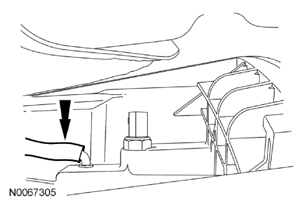

    Fig 5: Locating Vent Hose
    G08599040Courtesy of FORD MOTOR CO.
  10. If disassembly is necessary, drain the fluid. Install the drain plug when finished.
    • Tighten to 27 Nm (20 lb-ft).

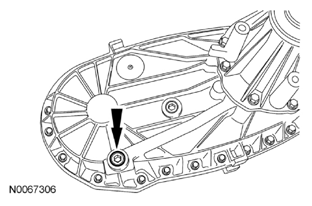

      Fig 6: Locating Transfer Case Drain Plug
      G08599041Courtesy of FORD MOTOR CO.

    Vehicles with TorqShift® transmission

  11. Position a suitable high-lift jack to the transfer case and secure it with safety straps.
  12. Remove the 6 transfer case-to-transmission bolts.
  13. Separate the transfer case from the extension housing. Pull the transfer case rearward, then lower the transfer case from the vehicle.

    Vehicles with TorqShift®6 transmission

  14. Remove the transmission support crossmember. For additional information, refer to FULL FRAME & BODY MOUNTING .
  15. Position a suitable high-lift transmission jack to the transfer case and secure it with safety straps.
  16. Remove the 11 transfer case bolts. Pull the transfer case rearward, then lower the transfer case from the vehicle.
