Restraints Control Module (RCM): Notes

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Parking brake control and selector lever partially omitted for clarity.

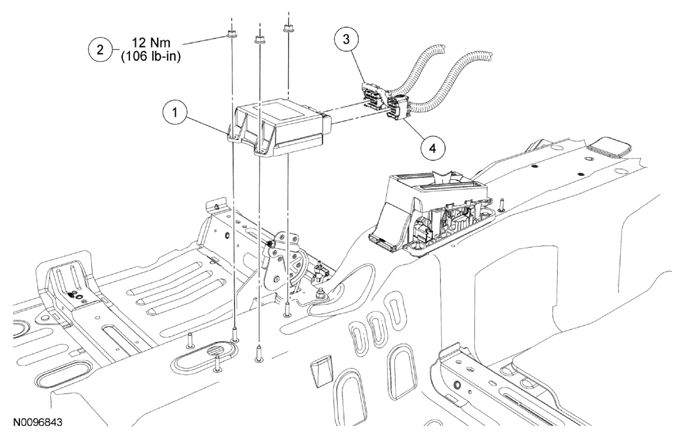

Fig 1: Restraints Control Module (RCM) Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14B321	Restraints Control Module (RCM)
2	W702751	Nut (3 required)
3	-	RCM large connector (part of 14A005)
4	-	RCM small connector (part of 14401)
