Exploded View

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

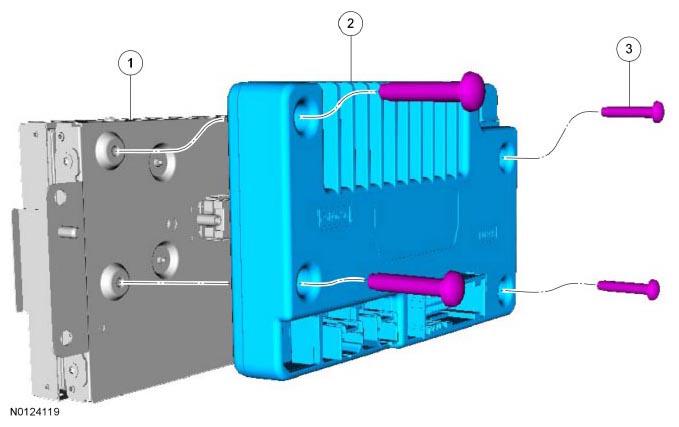

G07428705
Item Service Part Number Description Torque Material Name Notes
1 10D885 FDIM  - - -
2 14D212 APIM  - - -
3 - APIM  screws (4 required) 0.6 Nm (5 lb-in) - -
