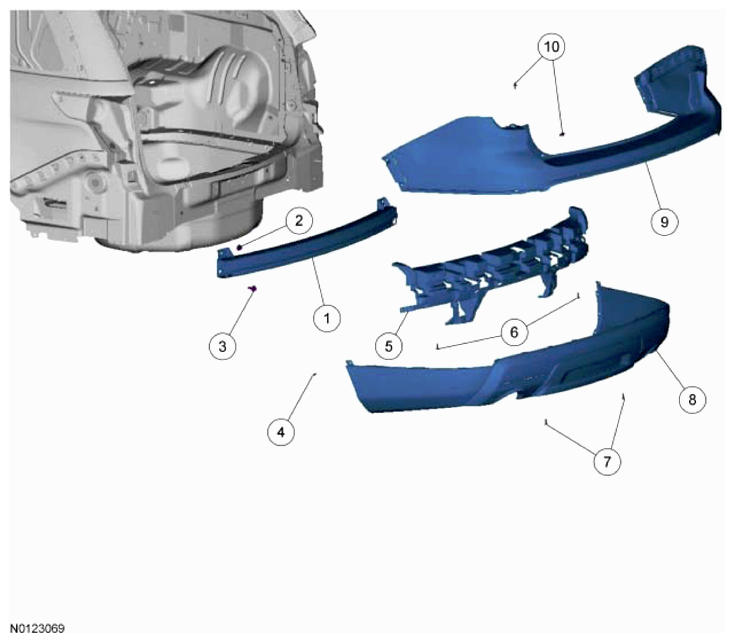

Exploded View
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Service Part Number | Description | Torque | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | 17906 | Rear bumper beam | - | - | - |
| 2 | N62194 | Rear bumper beam nut and washer (2 required) | 40 Nm (30 lb-ft) | - | - |
| 3 | 708322 | Rear bumper beam bolt and washer (2 required) | 40 Nm (30 lb-ft) | - | - |
| 4 | 702852 | Rivet (2 required) | - | - | - |
| 5 | 17E855 | Bumper isolator | - | - | - |
| 6 | W505415 | Bumper isolator-to-bumper beam bolt and washer (2 required) | 3 Nm (27 lb-in) | - | - |
| 7 | 706676 | Lower bumper cover screw (2 required) | - | - | - |
| 8 | 17K835A | Rear bumper cover - lower | - | - | - |
| 9 | 17K835B | Rear bumper cover - upper | - | - | - |
| 10 | W710250 | Bumper cover pin-type retainer (4 required) | - | - | - |
- Refer to the appropriate procedure for detailed steps
