Powertrain Control Module (PCM) - 3.5L GTDI: Installation

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

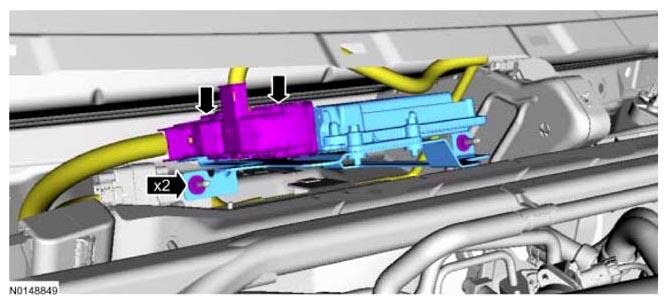

Tighten to 8 Nm (71 lb-in)
Tighten to 8 Nm (71 lb-in).
Install the cowl panel. REFER to COWL PANEL .
NOTE: This step is only necessary if installing a new component.

Restore the module configuration. Carry out the module configuration restore steps of the PMI procedure. REFER to MODULE CONFIGURATION SYSTEM .

Special Tool(s): Scan Tool.
Reprogram the PATS . Carry out the Parameter Reset procedure. Vehicles without IA, REFER to ANTI-THEFT SYSTEM - PASSIVE ANTI-THEFT SYSTEM (PATS), WITHOUT INTELLIGENT ACCESS . Vehicles with IA, REFER to ANTI-THEFT SYSTEM - PASSIVE ANTI-THEFT SYSTEM (PATS), WITH INTELLIGENT ACCESS .
After completing the repairs, use the scan tool to perform the Misfire Monitor Neutral Profile Correction procedure, following the on-screen instructions.
