Exploded View

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

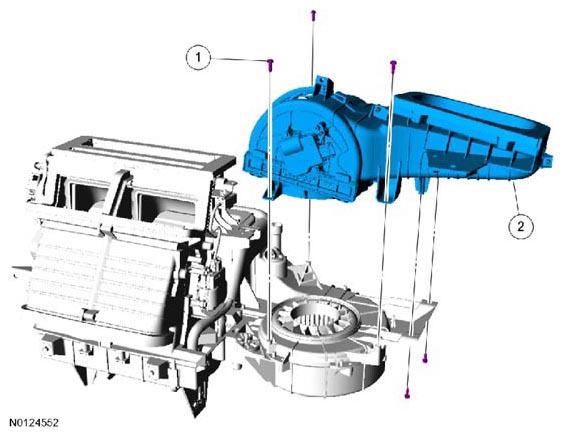

G07427416
Item Service Part Number Description Tool Number Material Name Notes
1 W701696 Air inlet duct screw (5 required) - - -
2 19A618 Air inlet duct - - -
