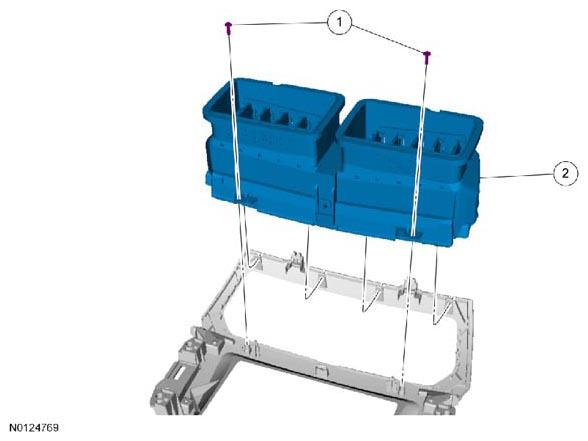

Exploded View

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
G07427445
Item Service Part Number Description Tool Number Material Name Notes
1 W713809 Center register assembly screw (2 required) - - -
2 19893 Center register assembly - - -
