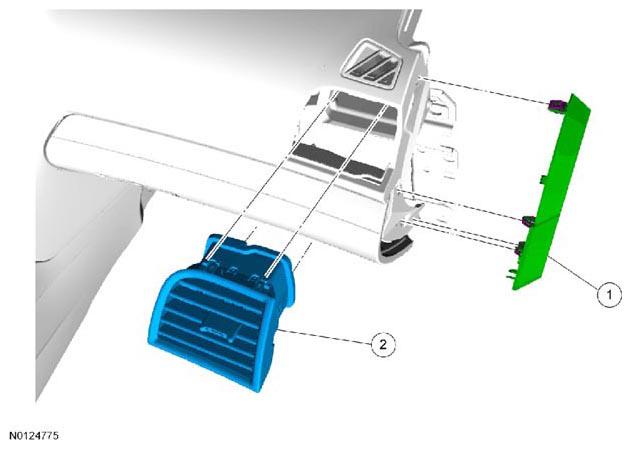

Exploded View

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
G07427447
Item Service Part Number Description Tool Number Material Name Notes
1 7804480 RH instrument panel side trim panel - - -
2 19893 Passenger side register - - -
