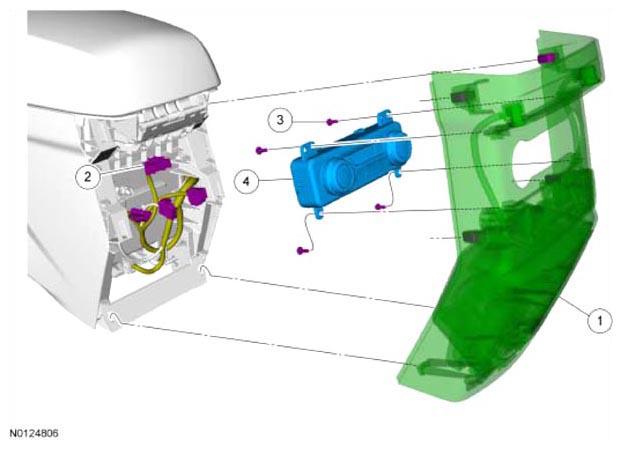

Exploded View
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | 78045E24 | Floor console rear trim panel | - | - | - |
| 2 | - | Floor console electrical connector (4 required) (part of 14A318) | - | - | - |
| 3 | W506943 | Auxiliary climate control assembly screw (4 required) | - | - | - |
| 4 | 19980 | Auxiliary climate control assembly | - | - | - |
