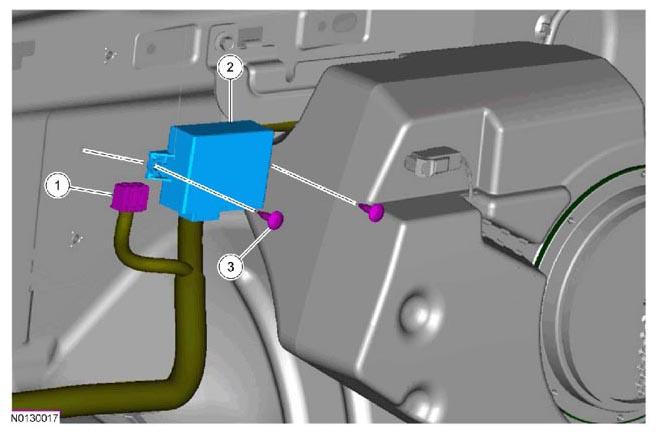

Exploded View
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Item |
Service Part Number |
Description |
Torque |
Material Name |
Notes |
| 1 |
14A005 |
Parking Aid Module (PAM) electrical connector |
- |
- |
- |
| 2 |
15K866 |
Parking Aid Module (PAM) |
- |
- |
- |
| 3 |
W705635 |
Parking Aid Module (PAM) screw (2 required) |
3 Nm (27 lb-in) |
- |
- |
