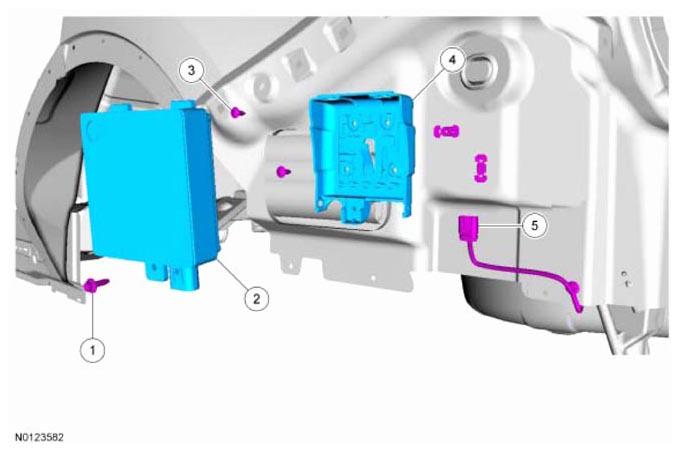

Exploded View
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Side Obstacle Detection Control Module - Left (SOD-L) shown in illustration, Side Obstacle Detection Control Module - Right (SOD-R) similar.
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | W503901 | Side Obstacle Detection Control Module - Left (SOD-L) bolt | 3 Nm (27 lb-in) | ||
| 2 | 14C689 | Side Obstacle Detection Control Module - Left (SOD-L) | |||
| 3 | W705247 | Side Obstacle Detection Control Module - Left (SOD-L) bracket screw | |||
| 4 | 14D189 | Side Obstacle Detection Control Module - Left (SOD-L) bracket | |||
| 5 | - | Side Obstacle Detection Control Module - Left (SOD-L) electrical connector (part of 14F238) |
