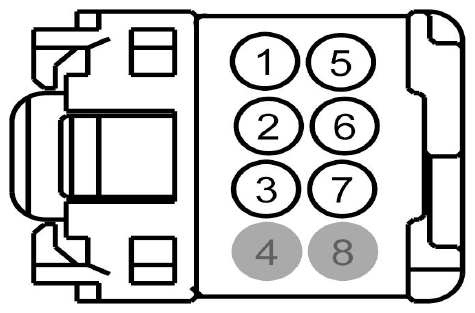

Front Lighting Control Module (FLM) Connector End View (C205)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | SBP23 (WH-RD) | 18 | FUSE - 23 OR CIRCUIT BREAKER | |
| 2 | VDB04 (WH-BU) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH | |
| 3 | VDB05 (WH) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW | |
| 4 | * | * | Not Used | |
| 5 | CBP35 (YE-GY) | 20 | FUSE - 35 OR CIRCUIT BREAKER | |
| 6 | VLF22 (VT) | 26 | RESISTOR VARIABLE - HEADLAMP LEVELING | |
| 7 | GD214 (BK-BU) | 18 | GROUND - INSTRUMENT PANEL STRUCTURE | |
| 8 | * | * | Not Used |

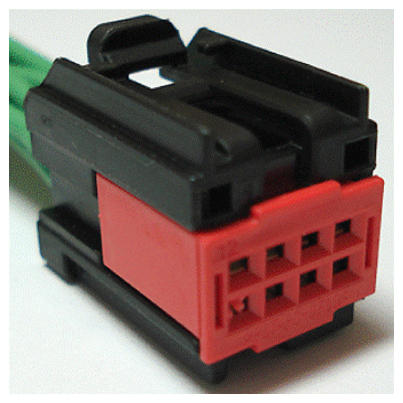

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-995 | Service Part Number: 3U2Z-14S411-BGB Gauge: 18 Pin material: Silver Cavities: 8 Vehicle Uses
|
