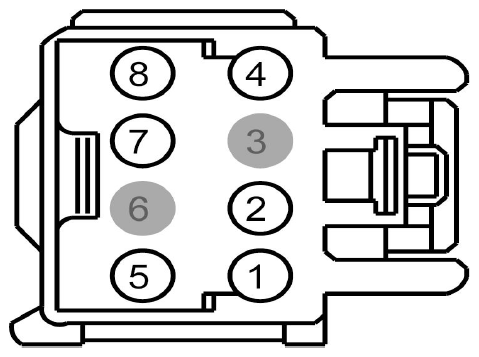

Steering Column Control Module (SCCM) Connector End View (C2414B)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CPP22 (GY-BN) | 20 | CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TELESCOPE FORWARD | |
| 2 | CPP04 (GY) | 20 | CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TILT (RAKE) UP | |
| 3 | * | * | Not Used | |
| 4 | CPP01 (WH-OG) | 20 | CTRL MOD. - MOTOR ADJUSTABLE PEDAL FORWARD | |
| 5 | GD214 (BK-BU) | 20 | GROUND - INSTRUMENT PANEL STRUCTURE | |
| 6 | * | * | Not Used | |
| 7 | CPP05 (WH-VT) | 20 | CTRL MOD. - MOTORS ADJUSTABLE STEERING COLUMN COMMON | |
| 8 | SBP24 (VT-RD) | 18 | FUSE - 24 OR CIRCUIT BREAKER |

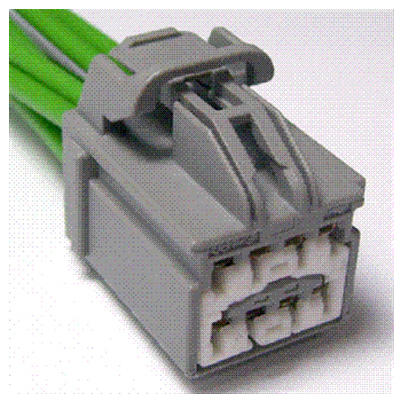

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1128 | Service Part Number: 3U2Z-14S411-BCB Gauge: 16 Pin material: Silver Cavities: 8 Vehicle Uses
|
