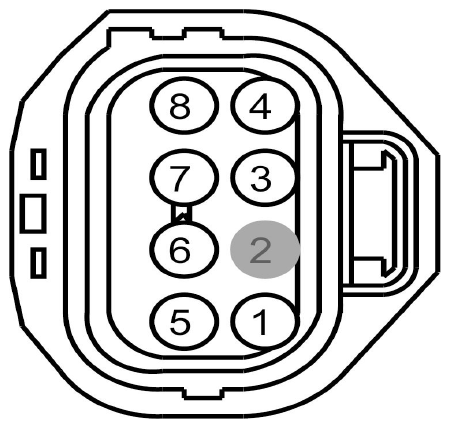

Fuel Pump Control Module Connector End View (C3239)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CE608 (VT-GN) | 12 | VPWR FUEL | |
| 2 | * | * | Not Used | |
| 3 | VE225 (YE-OG) | 20 | FUEL PUMP COMMAND (FPC) | |
| 4 | GD348 (BK-YE) | 12 | GROUND - PILLAR C OR QUARTER PANEL RIGHT | |
| 5 | CE515 (YE-GY) | 12 | FUEL PUMP POWER (FPPWR) | |
| 6 | CR167 (YE-VT) | 22 | EVENT NOTIFICATION SIGNAL (ENS) | |
| 7 | VE518 (BN-WH) | 20 | MONITOR - FUEL PUMP (FPM) | |
| 8 | RE515 (WH-BN) | 12 | FUEL PUMP RETURN (FPRTN) |

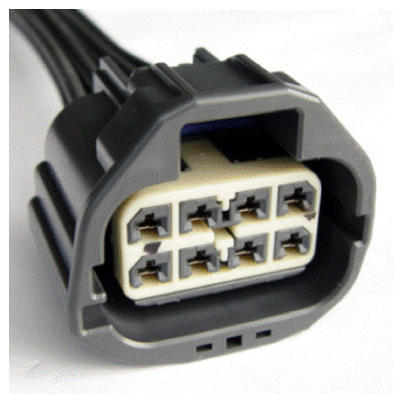

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-521 | Service Part Number: 3U2Z-14S411-TZA Gauge: 12 Pin material: Tin Cavities: 8 Vehicle Uses
|
