Safety Canopy Module: Notes
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Crew Cab shown, other cab styles similar.
NOTE:
The Safety Canopy® module bolts must be tightened in the sequence described in this procedure.

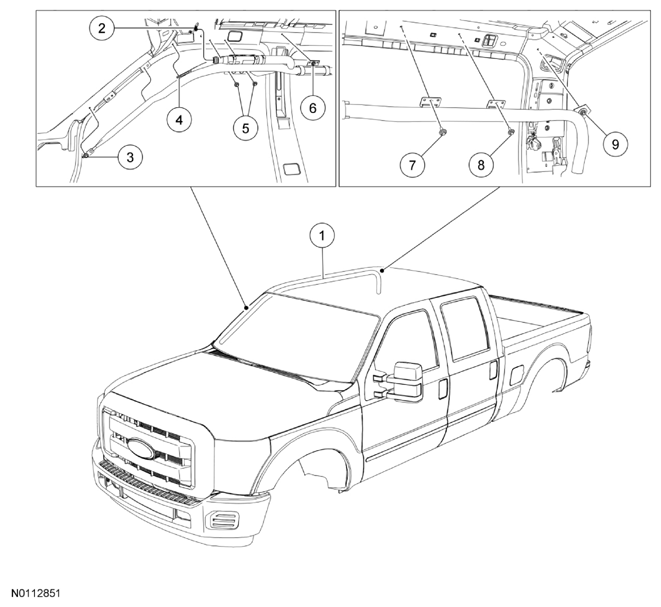

| Item | Part Number | Description |
|---|---|---|
| 1 | 042D94 RH/042D95 LH | Safety Canopy® module |
| 2 | - | Electrical connector (part of 15A404) |
| 3 | - | A-pillar tether bolt (part of 042D94 RH/042D95 LH) |
| 4 | - | Bolt (part of 042D94 RH/042D95 LH) |
| 5 | W706681 | Center locator bolts |
| 6 | W706681 | Bolt |
| 7 | W706681 | Bolt |
| 8 | W706681 | Bolt |
| 9 | - | Bolt (part of 042D94 RH/042D95 LH) |
