Explorer Base, 3.5 8, AWD, 6F50
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Wiper/Washer Systems
>>
Wiper System & Washer System
>>
Description And Operation
>>
Wipers and Washers - Front
>>
System Operation
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram

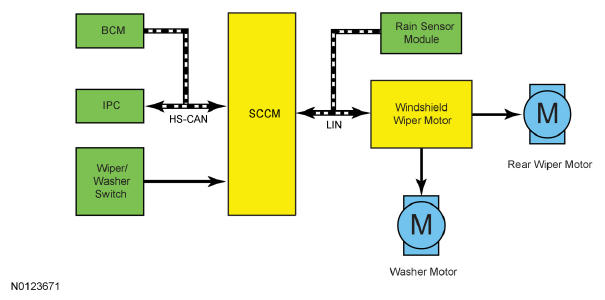

Fig 1: Front Wipers And Washers System Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
