Exploded View

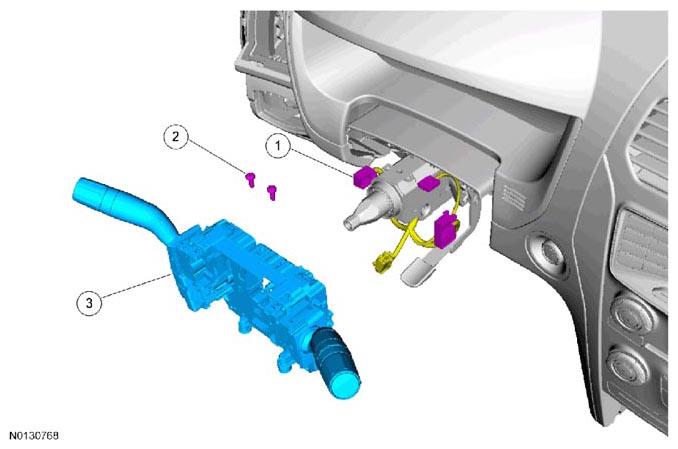

Fig 1: Identifying Steering Column Control Module Components
G07420823Courtesy of FORD MOTOR CO.
Item Service Part Number Description Tool Number Material Name Notes
1 Part  of 14401 SCCM electrical connectors - - -
2 W504694  SCCM screws (2 required) - - 3 Nm (27 lb-in)
3 3F791  SCCM - - -
