Exploded View

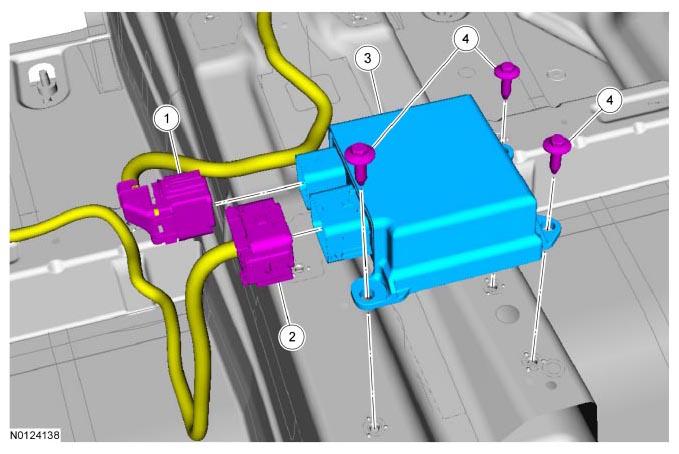

Fig 1: Exploded View Of Restraints Control Module (RCM)
G07428224Courtesy of FORD MOTOR CO.
Item Service Part Number Description Tool Number Material Name Notes
1 - RCM electrical connector (part of 14401) - - -
2 - RCM electrical connector (part of 14A005) - - -
3 14B321 RCM - - -
4 W707722 RCM bolts - - 12 Nm (106 lb-in)
